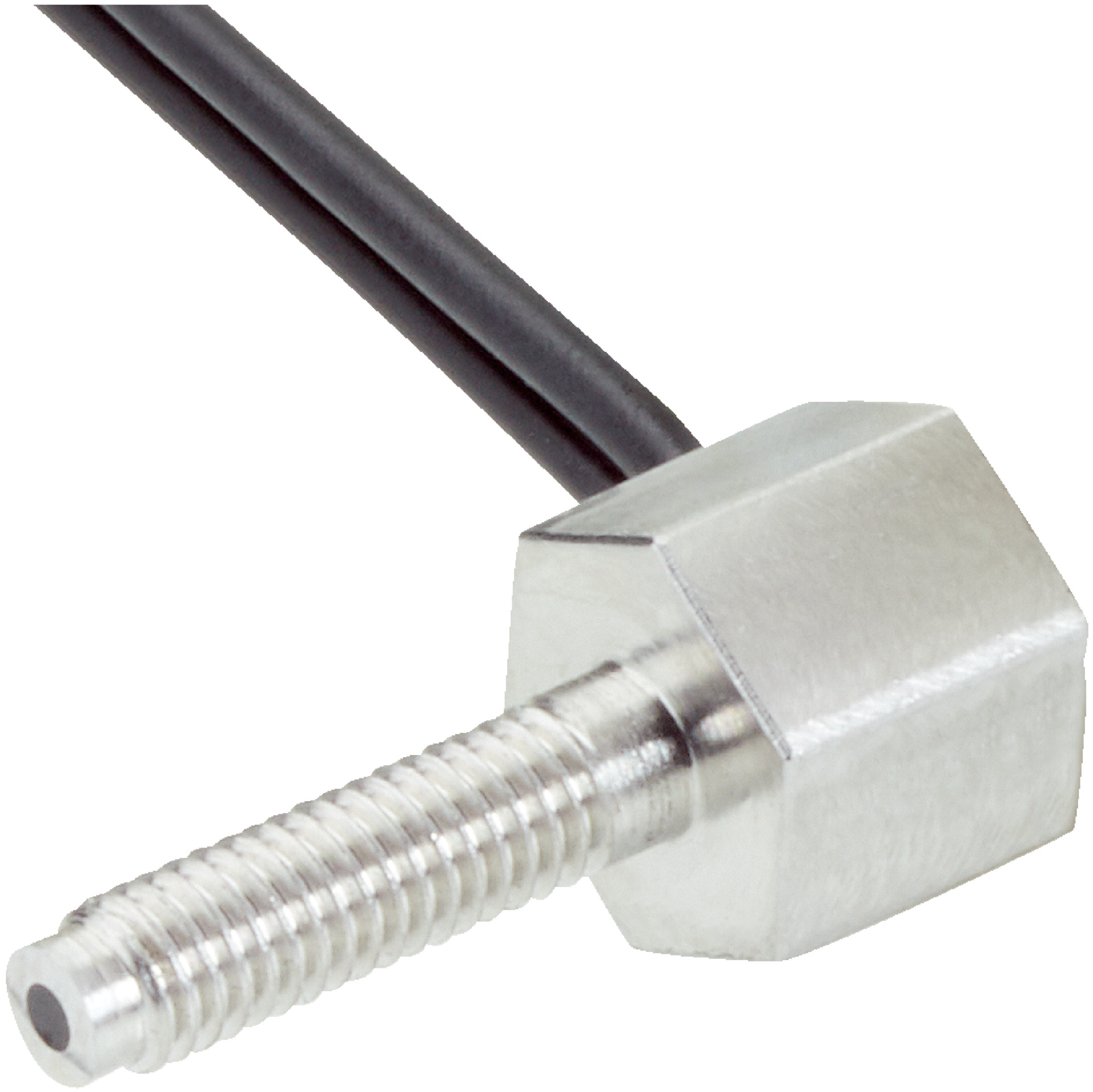

Fiber Optic Cable 90° Deflection | Threaded Sleeve Design | 60° Angle of Dispersion | by SICK
The Fiber Optic Cable 90° Deflection is designed for standard proximity sensing applications, featuring a threaded sleeve design and a 60° angle of dispersion. Built for industrial automation and detection systems, this cable is compatible with multiple fiber-optic amplifiers and can be shortened for flexibility in installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Sensing range: Dependent on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes (1 x LLAC-AB10 / 1 x LLAC-AB13)
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Thread diameter (housing): M3
- Fiber length: 2000 mm
- Bending radius: 5 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: Ø 0.5 mm Coaxial
- Sheath material: Polyethylene (PE)
- Fibers: PMMA
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and 90° deflection design
- Compatible with multiple fiber-optic amplifiers
- 60° angle of dispersion
- No integrated lens, compatible with tip adapters
- Optical fiber cable can be shortened
- Includes fiber cutter and mounting set
- Radial light emission from stainless steel optical fiber head
- Coaxial fiber arrangement with PMMA fibers and polyethylene sheath
- Operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems and electrical safety standards.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and detection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy.
Available Now
The SICK LLTE-R1300111020E3 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
