Fiber Optic Cable 90 Degree Deflection | Through-Beam System | Chrome-Plated Metal Coil | by SICK

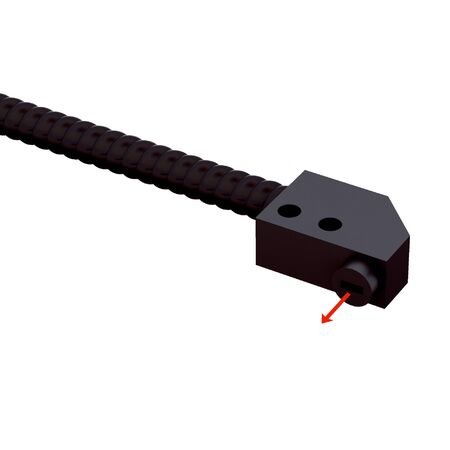

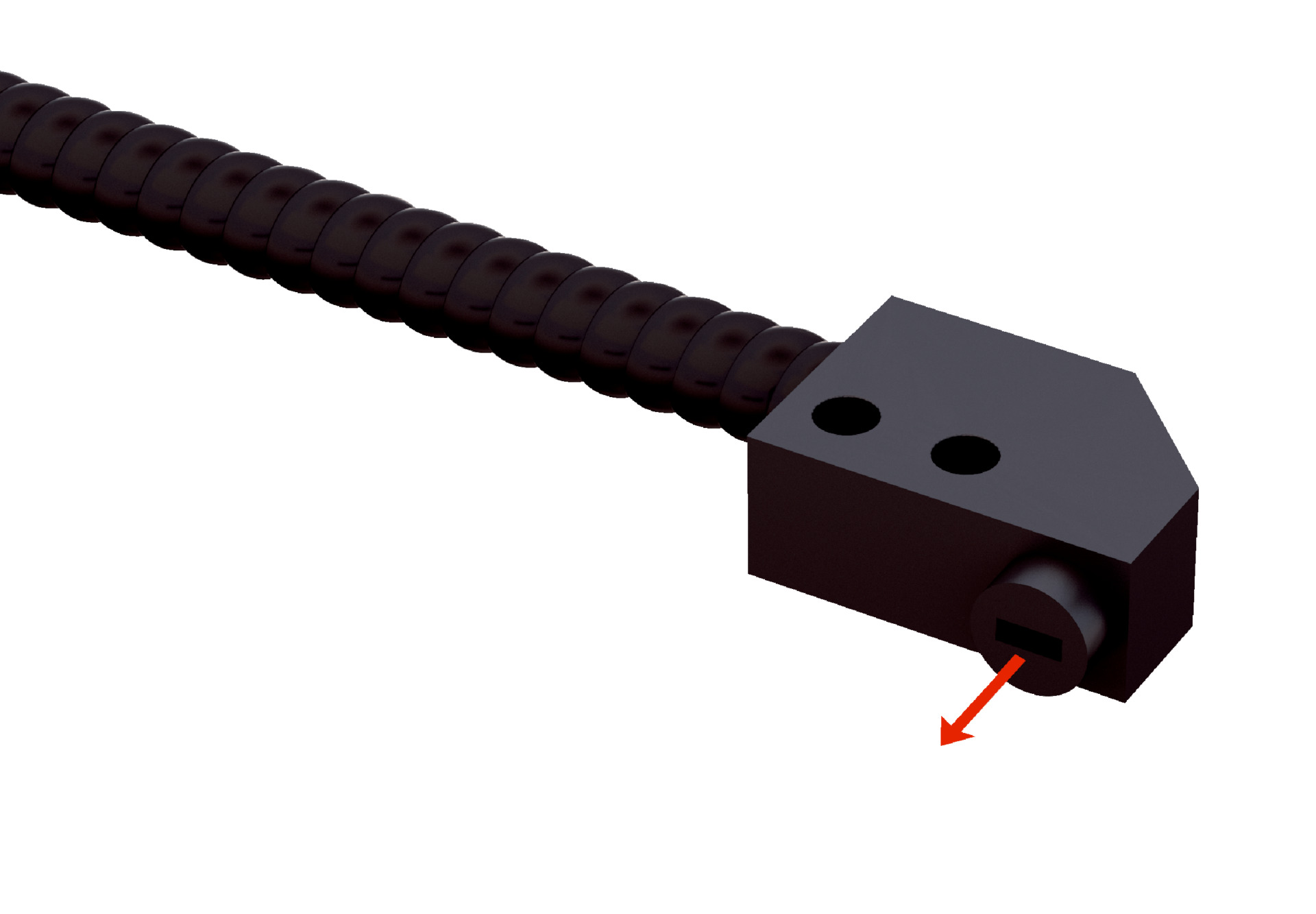

The LL3-LM38750 fiber optic cable features a flat type head with 90° deflection, designed for through-beam sensing applications. Ideal for industrial automation, it offers a minimal object diameter of 0.5 mm and compatibility with infrared light. Built with a durable PVC sheath and a multi-fiber core structure, this cable ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Optical fiber head material: Chrome-plated metal coil
- Light emission: Radial
- Fiber length: 750 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyvinylchloride (PVC)
- Fibers material: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 10mm x 750mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection
- Angle of dispersion: 60°
- Radial light emission from chrome-plated metal coil optical fiber head
- Multi-fiber core structure with glass fibers
- Polyvinylchloride (PVC) sheath for durability
- Compatibility with infrared light
- No integrated lens or tip adapters required
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- Standard sensing applications requiring through-beam fiber-optic systems
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection with minimal object diameter of 0.5 mm
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-LM38750 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
