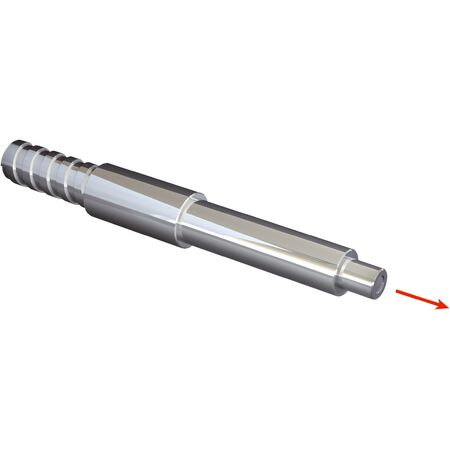

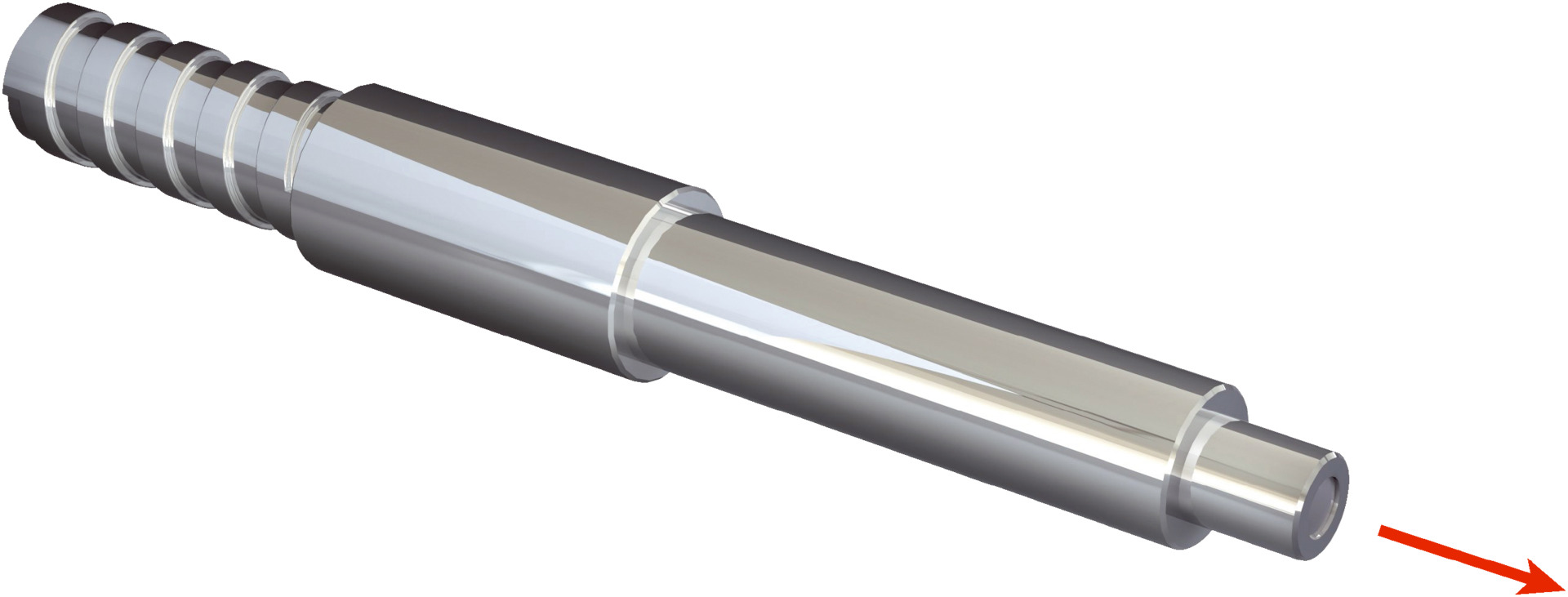

Fiber Optic Cable LL3-TW012000S03 | Heat-Resistant up to 100°C | Through-Beam System | Stainless Steel Design | by SICK
The LL3-TW012000S03 fiber optic cable is designed for industrial sensing applications, featuring a heat-resistant design that withstands temperatures up to 100°C. With a threaded sleeve fiber-optic head and compatibility with infrared light, this cable ensures reliable performance in demanding environments. Ideal for use with compatible fiber-optic amplifiers, it offers a sensing range tailored to your needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm (multi-fiber)
- Sheath material: Stainless steel
- Fibers material: Glass
- Ambient operating temperature: –60 °C to +210 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with threaded sleeve fiber-optic head
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Multi-fiber optical fiber with stainless steel head and sheath
- Axial light emission with 60° angle of dispersion
- Includes mounting hardware: 4 x M4 hexagon nuts, 2 x washers
- Fiber length of 2000 mm with 25 mm bending radius
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -60°C to +210°C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Heat resistance minimizes failure in high-temperature environments, reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TW012000S03 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant and reliable fiber-optic solutions.
