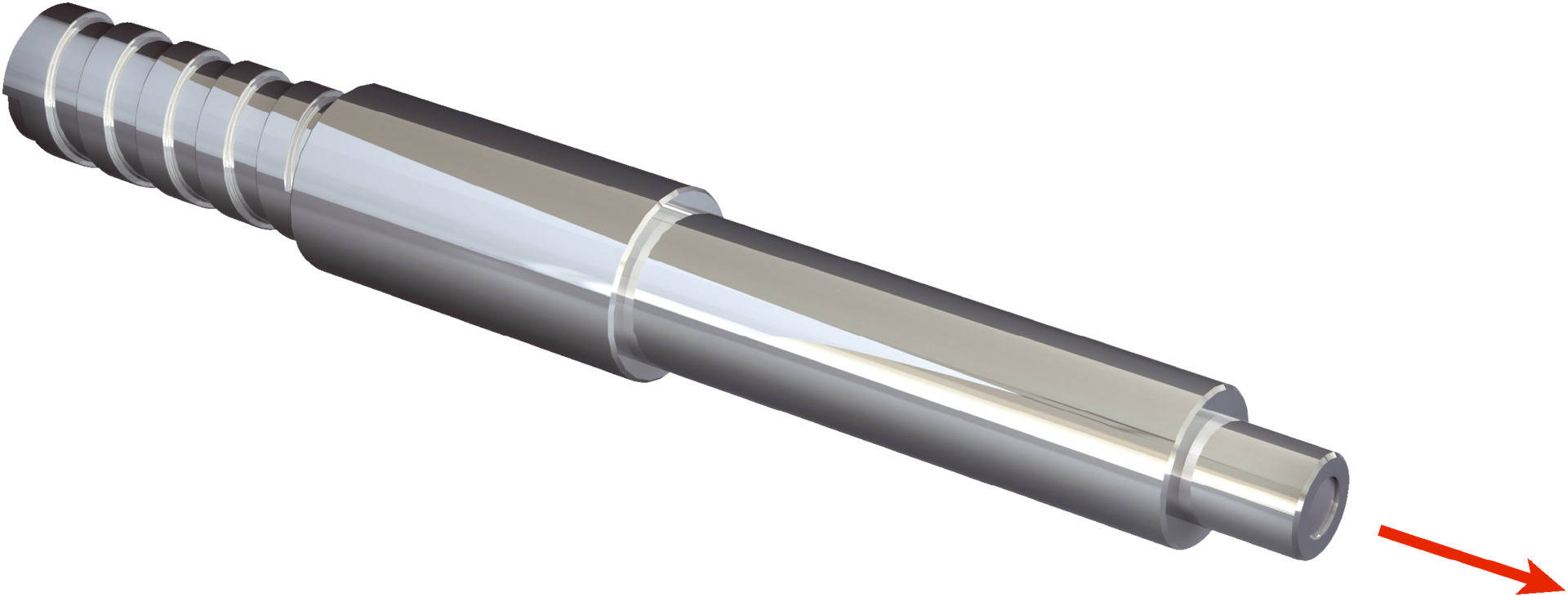

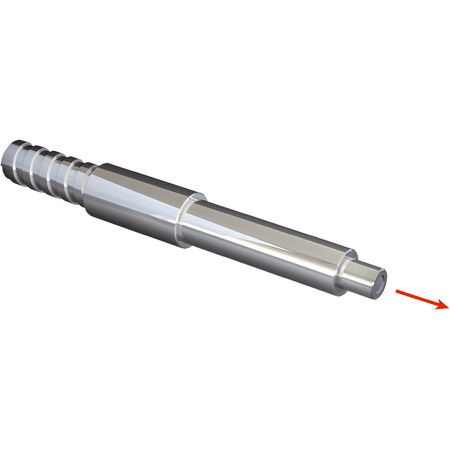

Fiber Optic Cable LL3-TW013000S04 | Heat-Resistant to 100°C | Through-Beam System | Stainless Steel | by SICK
The LL3-TW013000S04 fiber optic cable is designed for industrial sensing applications, featuring a heat-resistant design that withstands temperatures up to 100°C. With a threaded sleeve fiber-optic head and compatibility with infrared light, this cable ensures reliable performance in demanding environments. Ideal for use with compatible amplifiers, it offers a 3,000 mm length and a 60° angle of dispersion, making it perfect for various industrial setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Included with delivery: Mounting, 4 x M4 hexagon nut, 2 x washer
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 3,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm (multi-fiber)
- Sheath material: Stainless steel
- Fibers material: Glass
- Weight: 10 g
- Ambient operating temperature: –60 °C to +210 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 80 mm, 70 µs - 230 mm, 250 µs - 350 mm, 2 ms - 560 mm, 8 ms - 980 mm
- Sensing ranges with GLL170 operating mode 250 µs: 534 mm
- Sensing ranges with GLL170T operating modes: 50 µs - 821 mm, 250 µs - 1,393 mm
- Dimensions (H x L x W): 10mm x 3000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with threaded sleeve fiber-optic head
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Angle of dispersion 60°
- No integrated lens, compatibility with tip adapters
- Stainless steel optical fiber head and sheath
- Multi-fiber glass core structure with 3,000 mm fiber length
- Axial light emission with M4 thread diameter housing
- Bending radius of 25 mm, not suitable for dynamic flexibility (robotics)
Professional Installation Requirements
- Installation by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers is recommended to ensure optimal performance and safety.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -60°C to +210°C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Heat resistance minimizes failure in high-temperature environments, reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TW013000S04 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant and reliable fiber-optic solutions.
