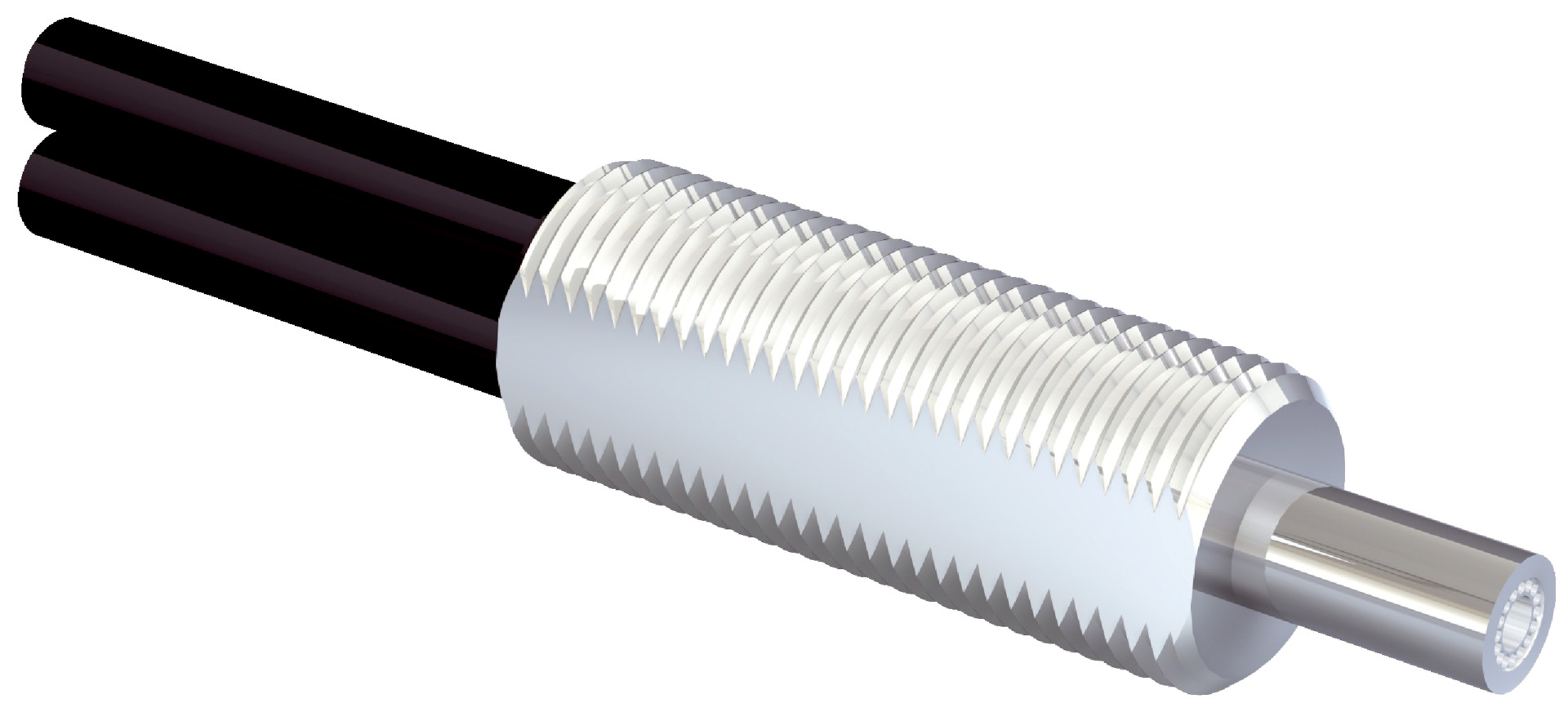

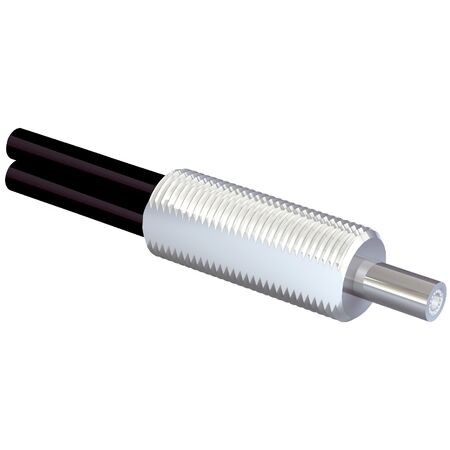

Fiber Optic Cable LL3-DB01-10 | Threaded Sleeve Design | 700 mm Sensing Range | Axial Light Emission | by SICK
The LL3-DB01-10 fiber optic cable is designed for precision in proximity sensing applications, featuring a threaded sleeve design and a maximum sensing range of 700 mm. With a minimal object diameter detection of just 0.015 mm, this durable cable operates effectively in temperatures from -40 °C to +70 °C, making it ideal for industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 700 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 2.8 mm
- Optical fiber taper length after 2 mm: ≥ 5 mm
- Fiber length: 10,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 1 mm, R: 16 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 10000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Maximum sensing range of 700 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Axial light emission with M6 thread diameter housing
- Optical fiber cable can be shortened without adapter end sleeves
- Coaxial fiber arrangement with polymethylmethacrylate (PMMA) fibers
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-DB01-10 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring high precision and durability.
