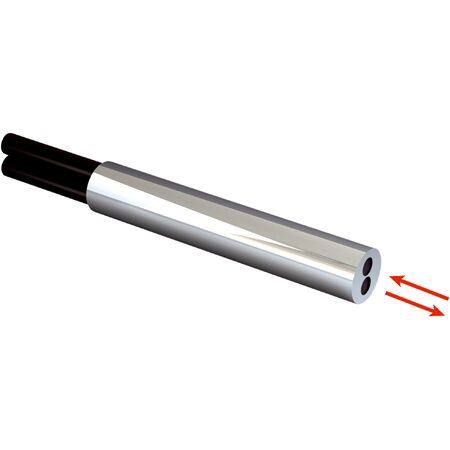

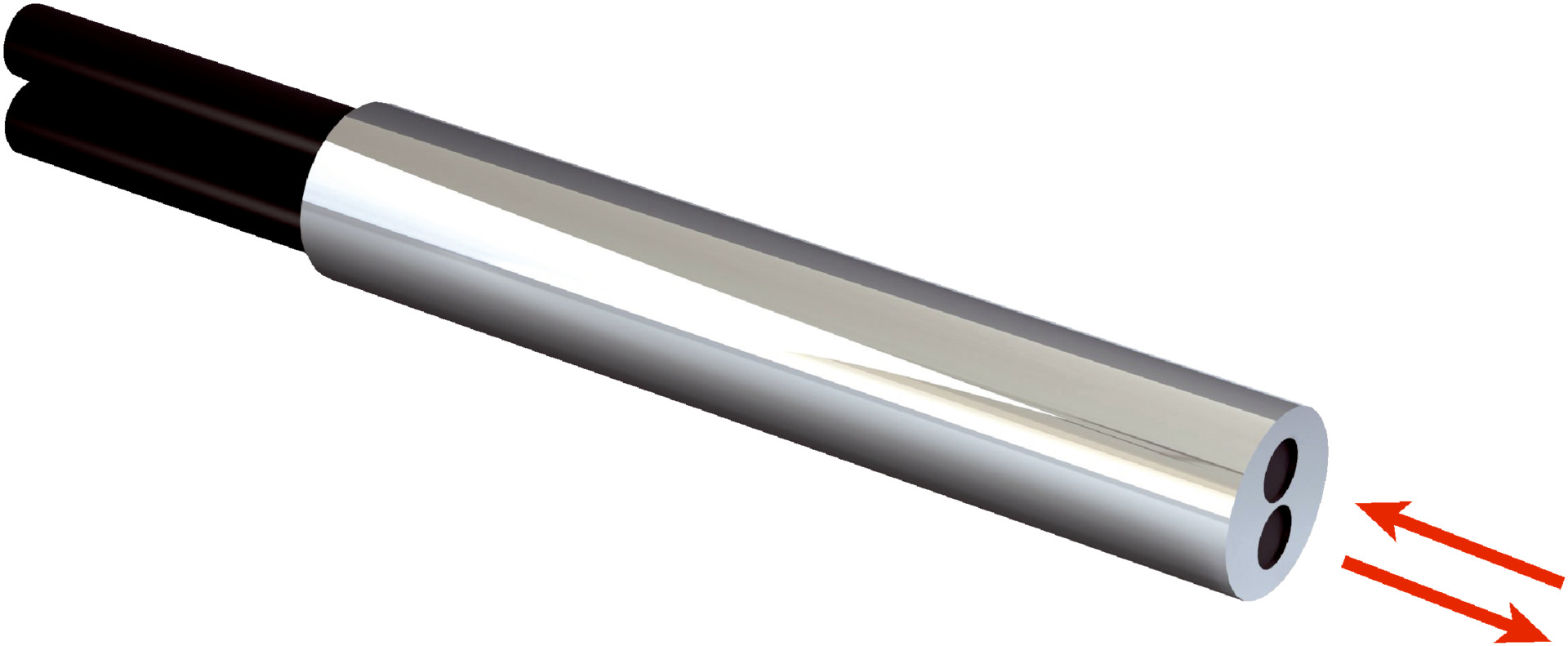

Fiber Optic Cable LL3-DK04 | Proximity System | Smooth Sleeve Design | Max Sensing Range 1400mm | by SICK
The LL3-DK04 fiber optic cable is designed for precision sensing in industrial applications, featuring a smooth sleeve design and a maximum sensing range of up to 1,400 mm. Ideal for LCD manufacturing and semiconductor industries, this cable ensures minimal object diameter detection of just 0.015 mm, making it perfect for clear material detection. Built with durable materials, it reduces waste and extends product life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Sensing range max.: 1,250 mm (WLL80 at 8 ms), up to 1,400 mm (WLL180T at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 3 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve design
- Proximity system functional principle
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Maximum sensing range up to 1,400 mm depending on amplifier and mode
- Minimal object diameter detection of 0.015 mm
- Axial light emission with 60° angle of dispersion
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter
