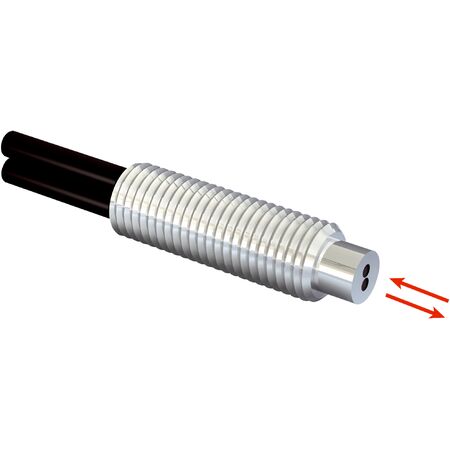

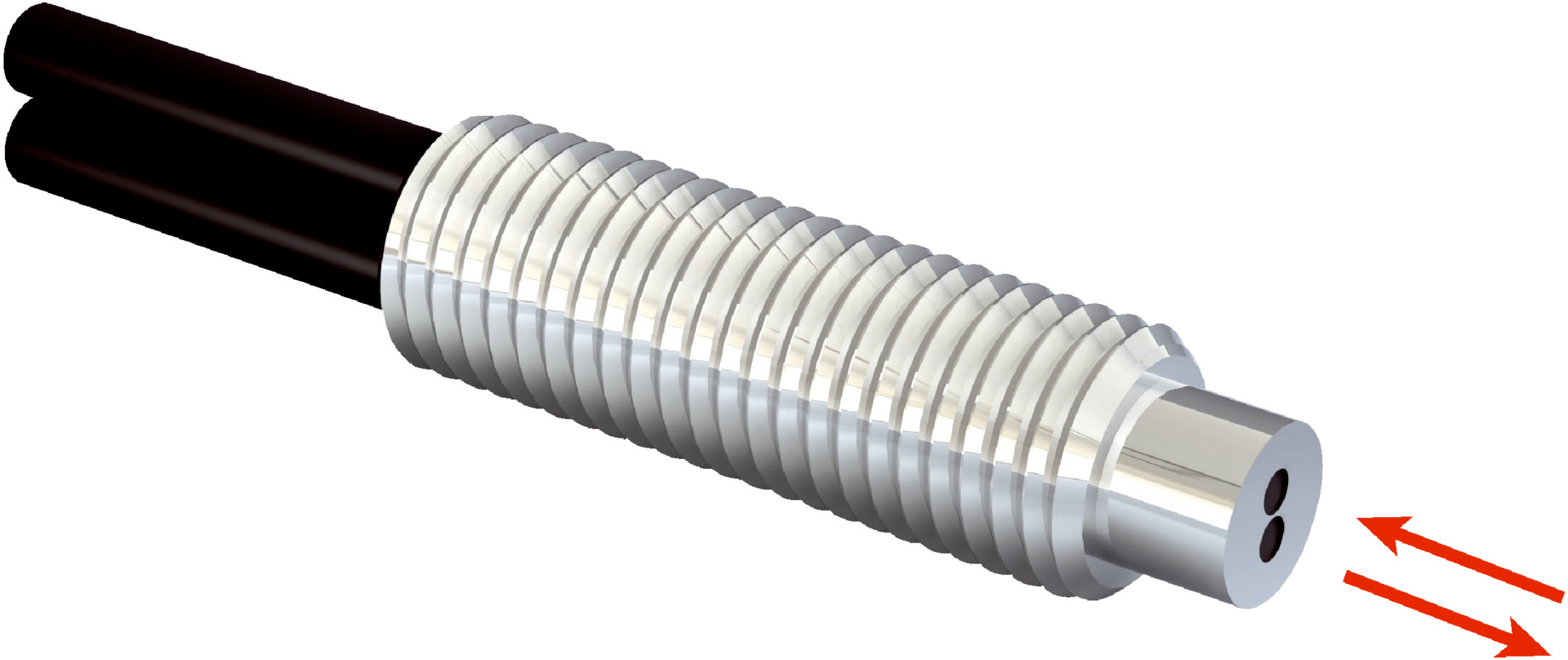

Fiber Optic Cable LL3-DK06 | Threaded Sleeve Design | Proximity System | 1,250 mm Sensing Range | by SICK
The LL3-DK06 fiber optic cable is designed for precision in proximity sensing applications, featuring a threaded sleeve design and a maximum sensing range of 1,250 mm. Built for industrial automation, this durable cable is made from stainless steel and polyethylene, ensuring longevity and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 1,250 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Proximity system functional principle
- Maximum sensing range up to 1,250 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion 60°
- Axial light emission
- Stainless steel optical fiber head
- Optical fiber cable length 2,000 mm with 25 mm bending radius
- Polyethylene (PE) sheath and polymethylmethacrylate (PMMA) fibers
- Optical fiber cable can be shortened without adapter end sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and optimal performance.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and polyethylene materials enhance product longevity, reducing waste.
- Energy-efficient sensing reduces power consumption in automation systems.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK LL3-DK06 fiber-optic cable is available for immediate purchase, ideal for industrial automation and proximity sensing applications.
