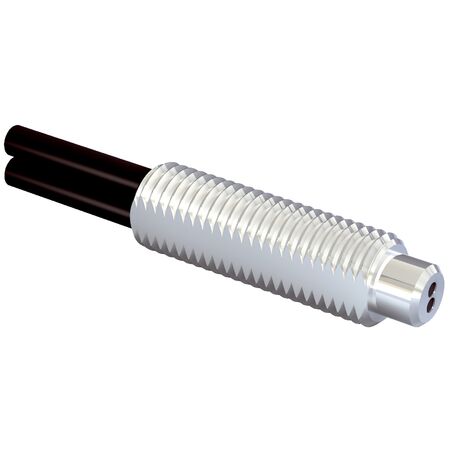

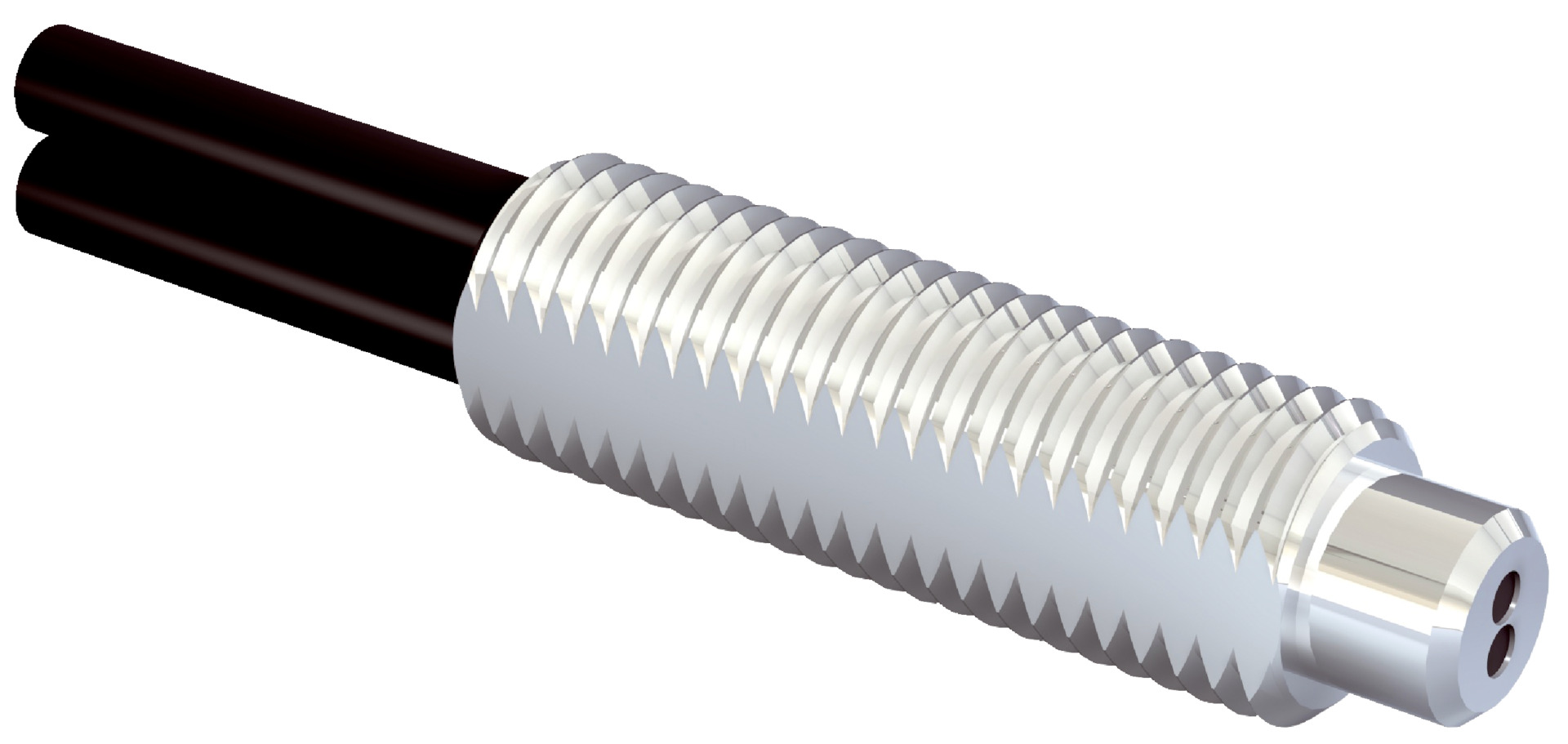

Fiber Optic Cable LL3-DK063000 | Threaded Sleeve Design | 60° Angle of Dispersion | Stainless Steel Head | by SICK
The Fiber Optic Cable LL3-DK063000 features a threaded sleeve design and axial light emission with a 60° angle of dispersion, making it ideal for standard proximity sensing applications. Built for industrial use, this cable is compatible with multiple fiber-optic amplifiers and can detect minimal object diameters of just 0.015 mm, ensuring precise sensing and improved process efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: Depending on fiber optic amplifier used
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 3000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 3000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Axial light emission with 60° angle of dispersion
- Compatible with multiple fiber-optic amplifiers
- Minimal object diameter detection of 0.015 mm
- Optical fiber cable can be shortened without adapter end sleeves
- Stainless steel optical fiber head with M6 thread diameter
- Polyethylene sheath with polymethylmethacrylate (PMMA) fibers
- Fiber length of 3000 mm with 25 mm bending radius
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DK063000 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring reliable fiber-optic connections.
