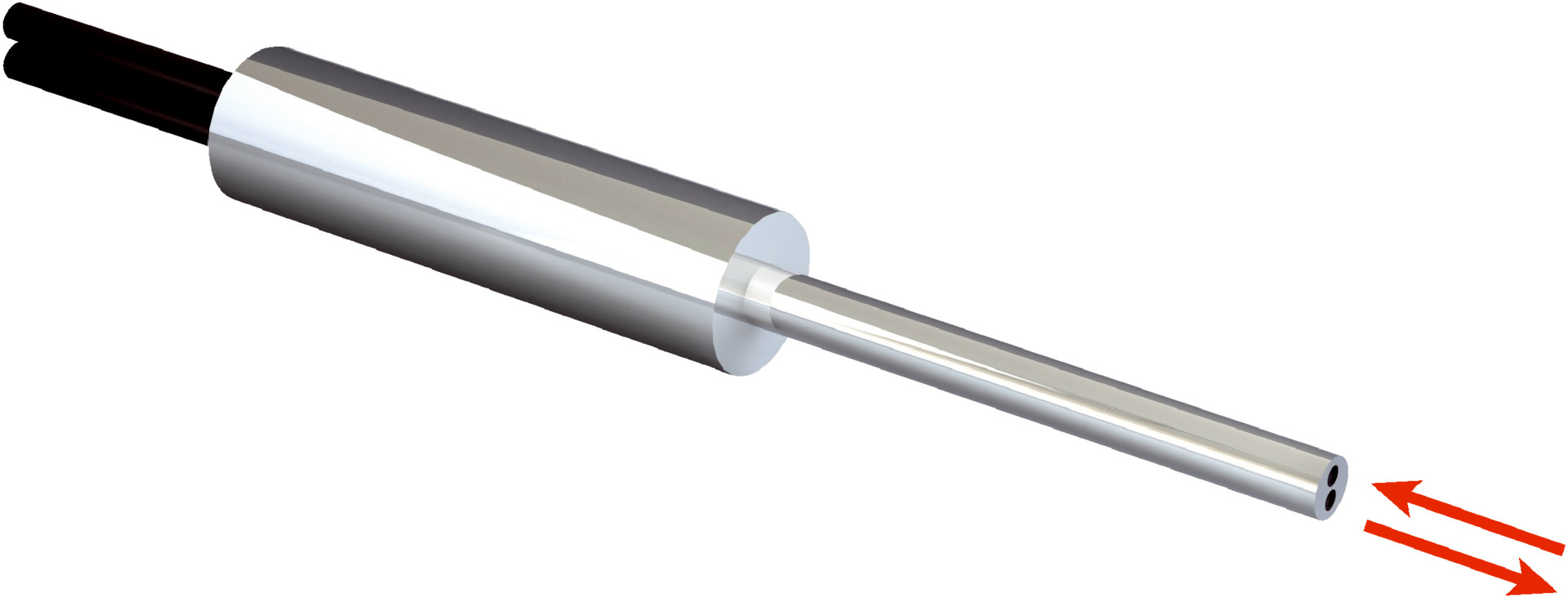

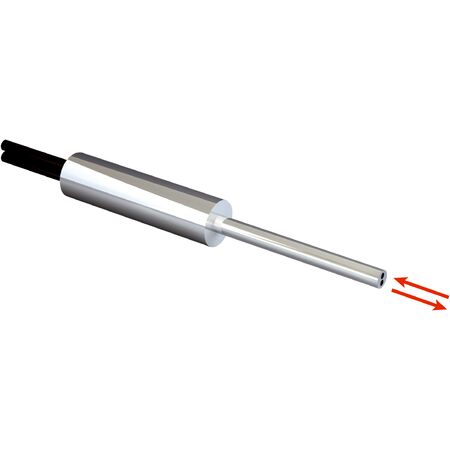

Fiber Optic Cable LL3-DK43 | Smooth Sleeve & Long End Sleeve Design | 490 mm Sensing Range | by SICK
The LL3-DK43 fiber optic cable is designed for precision in proximity sensing applications, featuring a smooth sleeve and long end sleeve design. With a maximum sensing range of 490 mm and the ability to detect minimal object diameters of just 0.015 mm, this cable is perfect for industrial automation. Built to last with durable materials, it enhances efficiency while reducing waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 490 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 4 mm
- Optical fiber taper diameter: ≥ 1.5 mm
- Optical fiber taper length after 2 mm: ≥ 20 mm
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.5 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 20mm x 2000mm x 4mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve and long end sleeve design
- Maximum sensing range of 490 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Axial light emission with 60° angle of dispersion
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper handling and connection with compatible fiber-optic amplifiers.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK LL3-DK43 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications.
