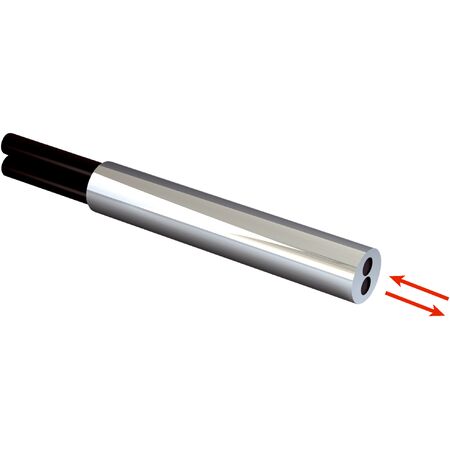

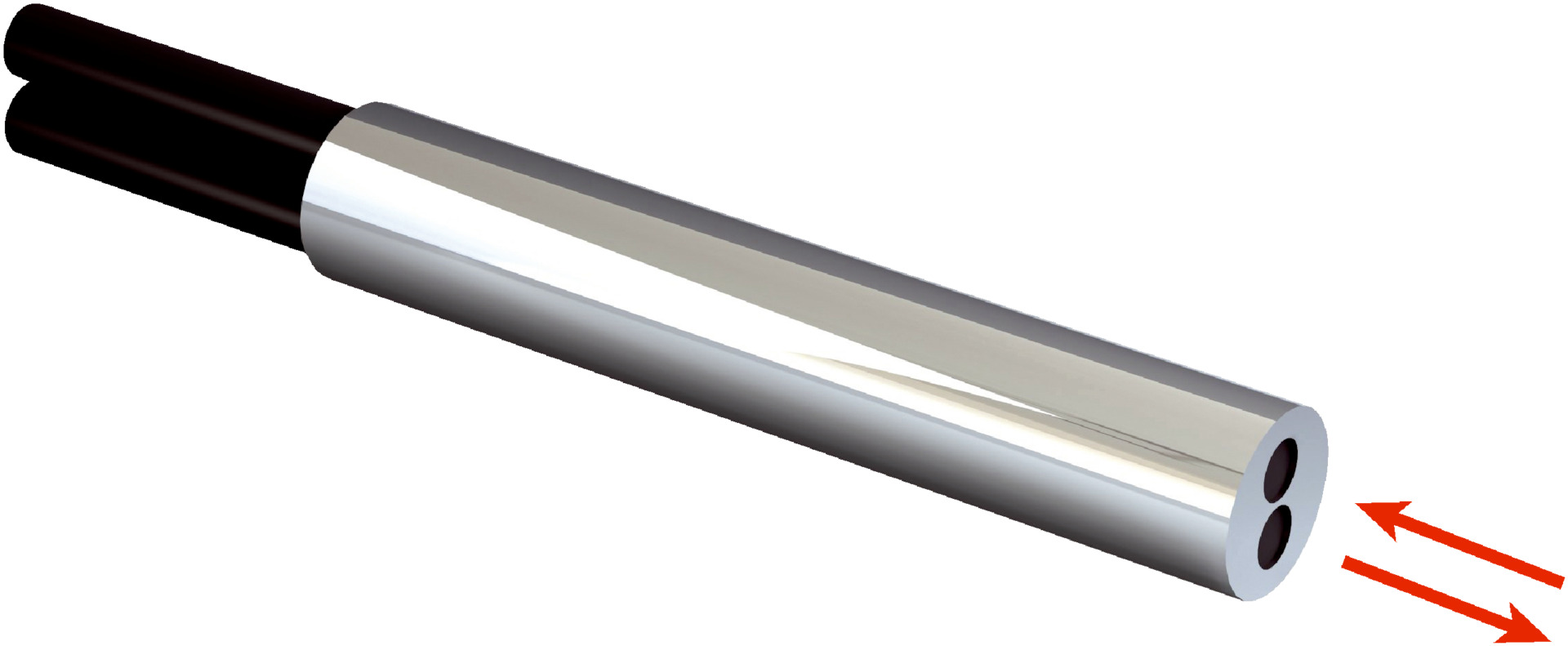

Fiber Optic Cable LL3-DK4Z | Smooth Sleeve Design | Axial Light Emission | 2000 mm Length | by SICK
The LL3-DK4Z fiber optic cable is designed for high flexible static proximity sensing applications. Featuring a smooth sleeve design and axial light emission, this cable is compatible with various fiber-optic amplifiers, ensuring reliable performance in industrial settings. Built with durable materials, it minimizes waste and offers low power consumption, making it an ideal choice for precision sensing tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Application: High flexible (static)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 3 mm
- Fiber length: 2000 mm
- Bending radius: 2 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve design
- Axial light emission with 3 mm stainless steel optical fiber head
- Single fiber arrangement with 2 x Ø 1.0 mm core structure
- Bending radius of 2 mm, fiber length 2000 mm
- Adapter end sleeves required and included with delivery
- Compatible with infrared light: No
- Optical fiber cable can be shortened
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and connection.
Applications
- High flexible static proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Low power consumption when used with compatible fiber-optic amplifiers
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DK4Z fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring high flexibility and precision.
