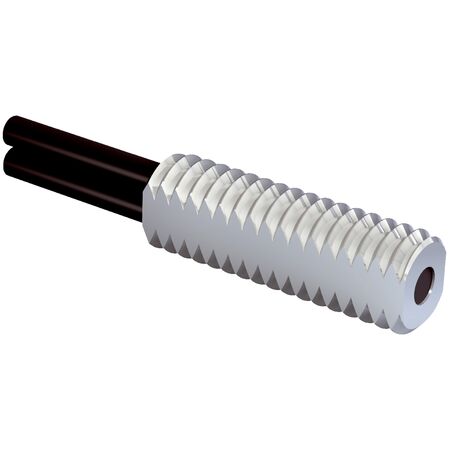

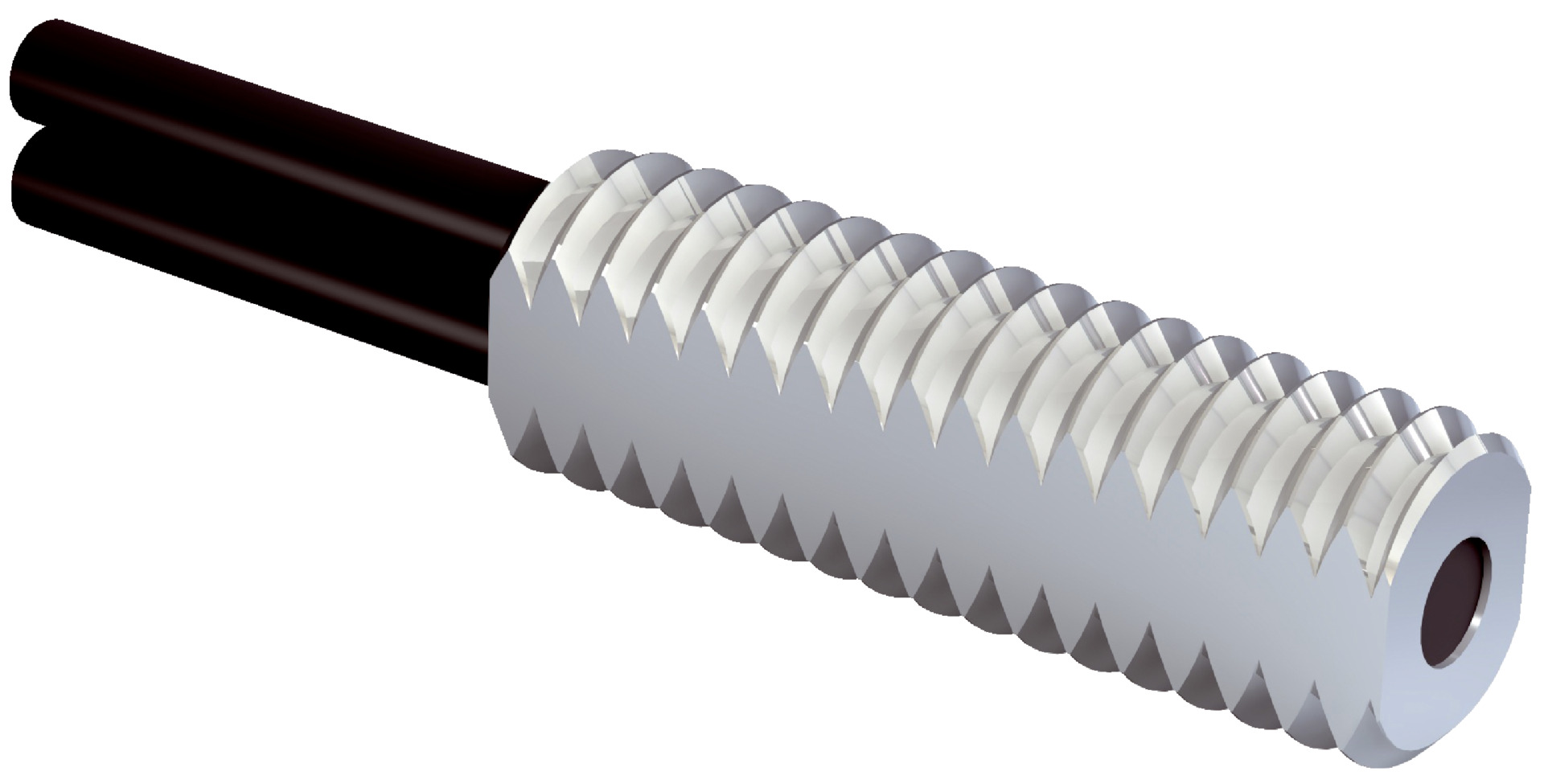

Fiber Optic Cable LL3-DM02-3 | Threaded Sleeve Design | Proximity System | 3000 mm Length | by SICK
The LL3-DM02-3 fiber optic cable is designed for precision in proximity sensing applications, featuring a threaded sleeve design and a minimal object diameter detection of just 0.015 mm. Ideal for industrial automation, this durable cable ensures reliable performance with compatible fiber-optic amplifiers, enhancing process efficiency and reducing waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Fiber length: 3000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.5 mm, R: 9 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 40 mm, 70 µs - 130 mm, 250 µs - 200 mm, 2 ms - 350 mm, 8 ms - 600 mm
- Dimensions (H x L x W): 10mm x 3000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Proximity system functional principle
- Sensing range depends on fiber optic amplifier used
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened
- Includes mounting accessories and fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DM02-3 fiber-optic cable is available for immediate purchase, ideal for industrial automation and proximity sensing applications.
