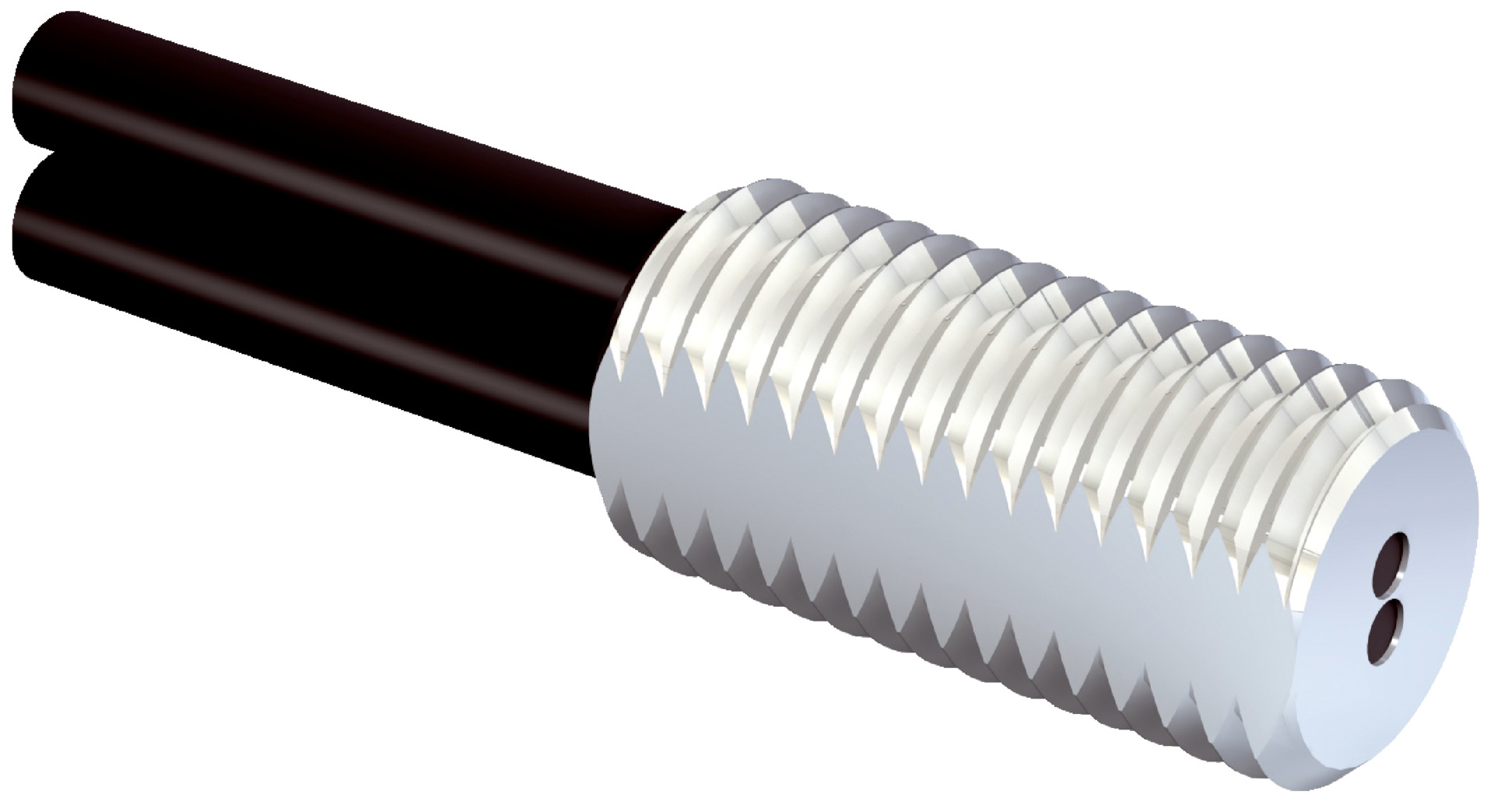

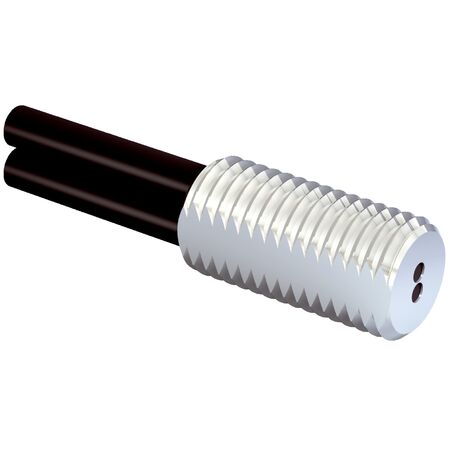

Fiber Optic Cable LL3-DR01 | Threaded Sleeve Design | 1250mm Sensing Range | Dynamic Flexibility | by SICK
The Fiber Optic Cable LL3-DR01 features a threaded sleeve design and a maximum sensing range of 1,250 mm, making it ideal for high flexibility and robotic sensing applications. Built for dynamic environments, this cable is compatible with various fiber-optic amplifiers and offers a minimal object diameter detection of just 0.015 mm, ensuring precise performance in automation and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range max.: 1,250 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Axial
- Thread diameter (housing): M6
- Fiber length: 2,000 mm
- Bending radius: 4 mm
- Dynamic flexibility (robotics): Yes
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: S: 16 x Ø 0.26 mm, R: 16 x Ø 0.26 mm
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Maximum sensing range of 1,250 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion 60°
- No integrated lens and no compatibility with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
- Optical fiber head made of copper-zinc alloy (CuZn) with axial light emission
- Fiber length 2,000 mm with 4 mm bending radius
- Multi-fiber arrangement with core structure S: 16 x Ø 0.26 mm, R: 16 x Ø 0.26 mm
- Sheath made of polyethylene (PE) and fibers made of polymethylmethacrylate (PMMA)
- Dynamic flexibility suitable for robotics
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with compatible fiber-optic amplifiers and optimal performance.
Applications
- High flexible (static) sensing applications
- Robotics (dynamic flexible) sensing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and design reduce waste and replacement frequency
- Supports energy-efficient sensing in automation and robotics
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-DR01 Fiber-Optic Cable is available for immediate purchase, ideal for high flexibility and robotic sensing applications.
