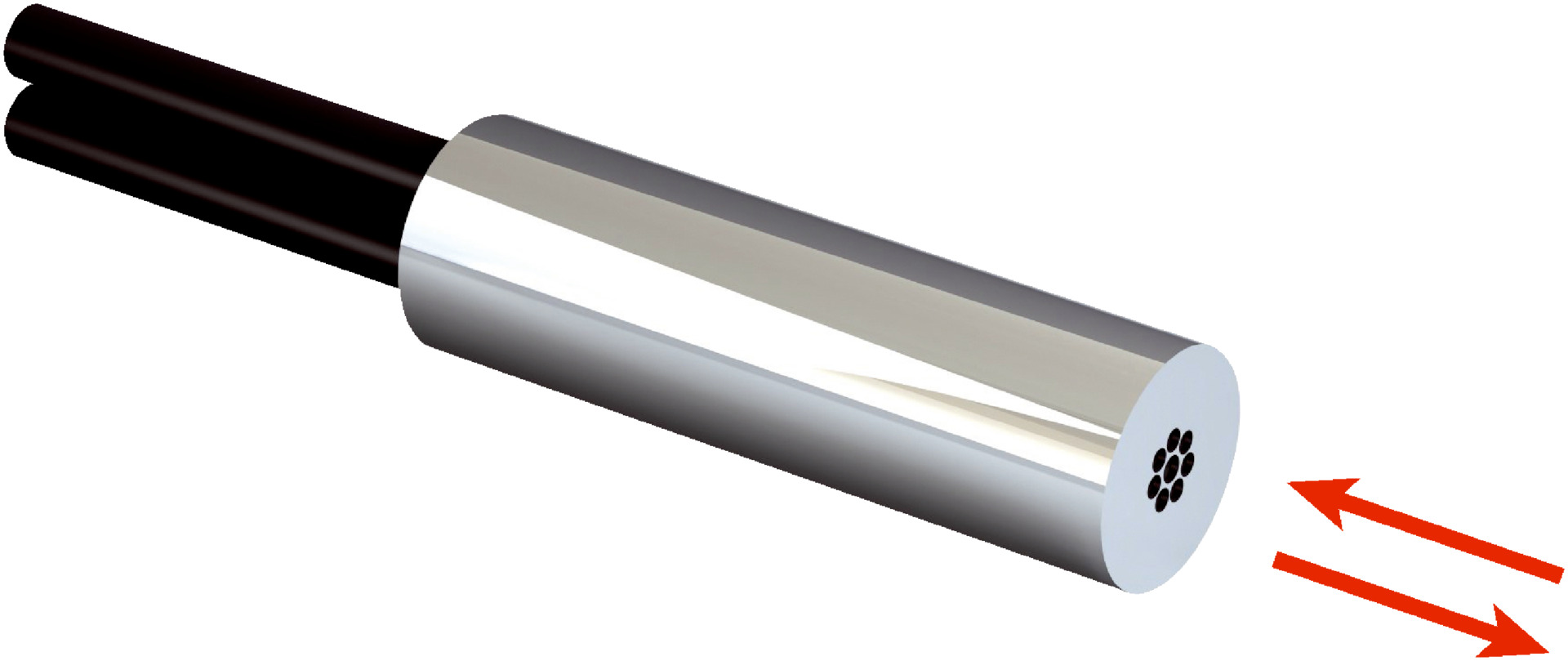

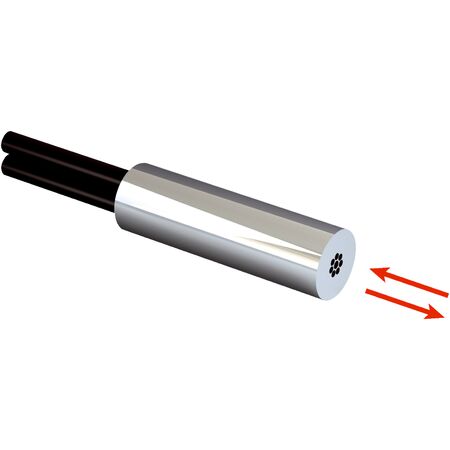

Fiber Optic Cable LL3-DR03 | Proximity System | 510 mm Sensing Range | Smooth Sleeve Design | by SICK
The LL3-DR03 fiber optic cable is designed for precision sensing in industrial automation and robotics. With a maximum sensing range of 510 mm and a minimal object diameter detection of just 0.015 mm, this cable features a smooth sleeve design for enhanced flexibility. Built with durable materials, it operates effectively in temperatures ranging from -40 °C to +70 °C, making it ideal for dynamic and static applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Sensing range max.: 510 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 3 mm
- Fiber length: 2000 mm
- Bending radius: 4 mm
- Dynamic flexibility (robotics): Yes
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Multi-fiber
- Core structure: S: 4 x Ø 0.25 mm, R: 4 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve design
- Compatible with WLL80, WLL180, GLL170(T) fiber-optic amplifiers
- Maximum sensing range of 510 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Axial light emission with 3 mm smooth sleeve diameter
- Optical fiber cable can be shortened
- Adapter end sleeves required and included
- Dynamic flexibility suitable for robotics
- Stainless steel optical fiber head
- Polyethylene (PE) sheath with polymethylmethacrylate (PMMA) fibers
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and connection.
Applications
- High flexible (static) applications
- Robotics (dynamic flexible) applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-DR03 fiber-optic cable is available for immediate purchase, ideal for industrial automation and robotic sensing applications.
