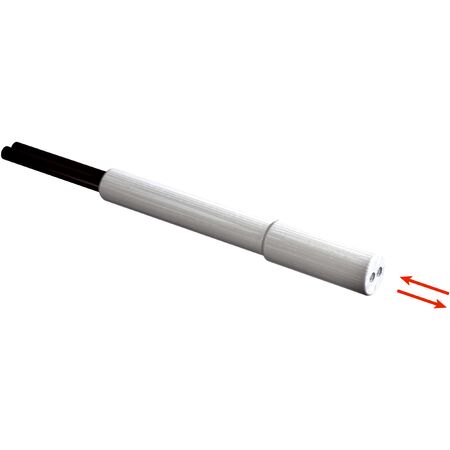

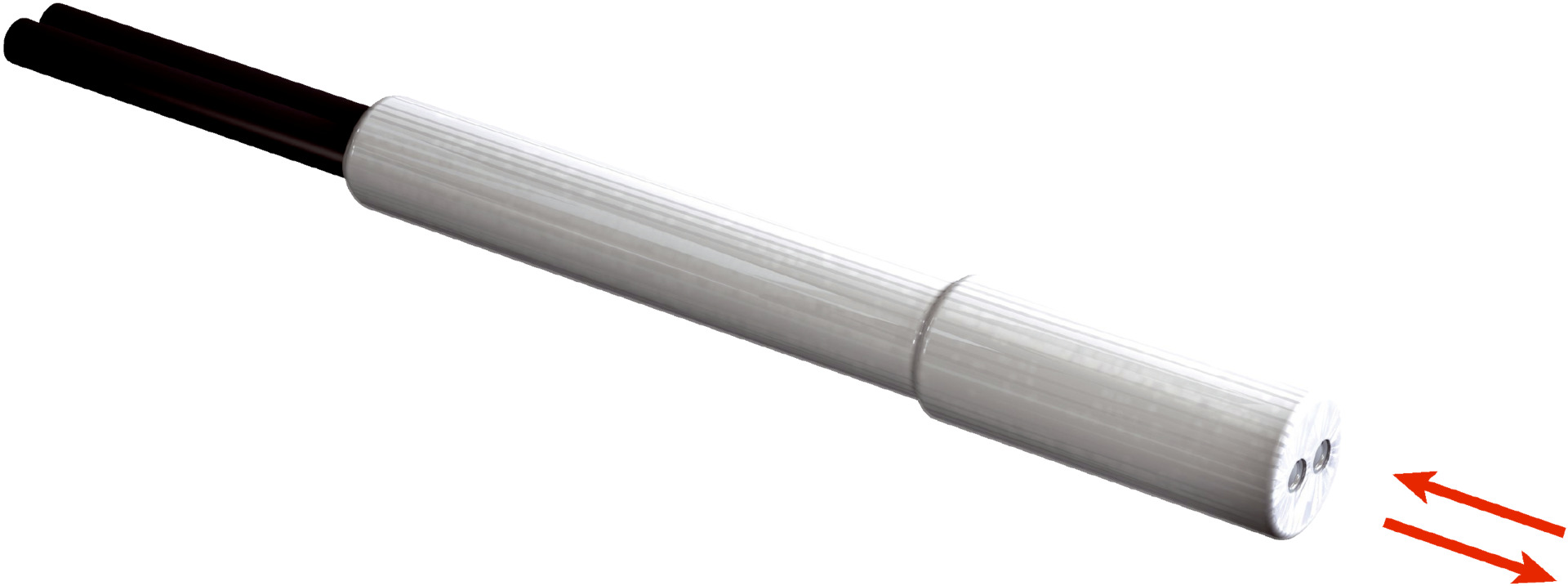

Fiber Optic Cable LL3-DY01 | Teflon Coated | Chemical Resistant | 450mm Sensing Range | by SICK
The LL3-DY01 fiber optic cable is designed for industrial automation with a smooth sleeve design and Teflon coating, making it resistant to oil and chemicals. Ideal for proximity sensing applications, this cable offers a maximum sensing range of 450 mm and is compatible with various fiber-optic amplifiers, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Application: Resistant to oil and chemicals
- Special features: Teflon-coating, chemically resistant
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Maximum sensing range: 450 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Included with delivery: FC fiber cutter (5304141)
- Optical fiber head material: Polytetrafluorethylen (PTFE)
- Light emission: Axial
- Smooth sleeve diameter: 6 mm
- Fiber length: 2000 mm
- Bending radius: 60 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polytetrafluorethylen (PTFE)
- Fibers material: Polymethylmethacrylat (PMMA)
- Ambient operating temperature: -40 °C to +100 °C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve design
- Teflon-coated for chemical and oil resistance
- Axial light emission with 60° angle of dispersion
- Compatible with multiple fiber-optic amplifiers
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter for installation
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with fiber-optic sensor systems and using the included FC fiber cutter for proper cable preparation.
Applications
- Industrial automation proximity sensing
- Oil and chemical resistant environments
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable Teflon coating extends product life reducing waste
- Chemical resistance minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DY01 fiber-optic cable is available for immediate purchase, ideal for industrial automation and chemical resistant sensing applications.
