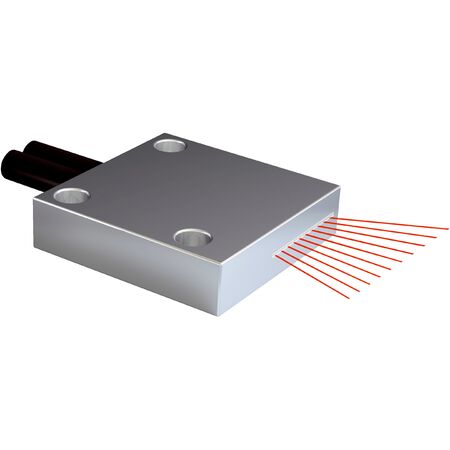

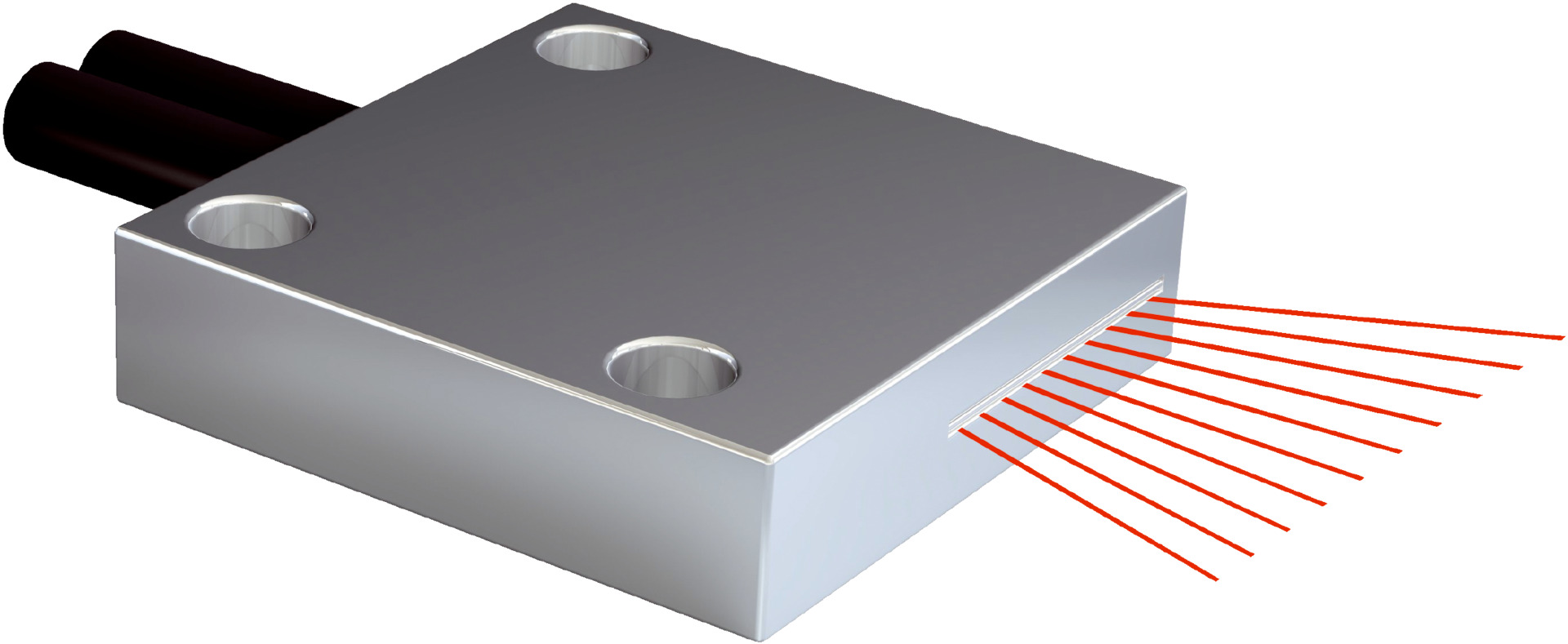

Fiber Optic Cable LL3-DZ0210000 | Proximity System | 0.02 mm Detection | 60° Dispersion | by SICK
The LL3-DZ0210000 fiber optic cable is designed for precision in industrial automation, featuring a flat type array head and a minimal object diameter detection of just 0.02 mm. With a 60° angle of dispersion, this cable is perfect for proximity detection applications, ensuring reliable performance with compatible fiber-optic amplifiers. Built from durable materials, it operates effectively in temperatures ranging from -40 °C to +70 °C, making it a robust choice for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, Array
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Included with delivery: FC fiber cutter (5304141)
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Axial
- Optical fiber head array width: 11 mm
- Fiber length: 10,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: S: 16 x Ø 0.265 mm R: 16 x Ø 0.265 mm Multi-fiber
- Sheath: Polyethylene (PE)
- Fibers: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 10000mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, array fiber-optic head
- Proximity system functional principle
- Sensing range depends on fiber optic amplifier used
- Minimal object diameter detection of 0.02 mm
- 60° angle of dispersion
- No integrated lens or compatibility with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
- Optical fiber head made of copper-zinc alloy (CuZn)
- Axial light emission with 11 mm optical fiber head array width
- Fiber length 10,000 mm with 2.2 mm outside diameter
- Multi-fiber arrangement with polymethylmethacrylate (PMMA) fibers and polyethylene (PE) sheath
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and connection.
Applications
- Area detection in industrial automation
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DZ0210000 fiber-optic cable is available for immediate purchase, ideal for industrial automation and proximity detection applications.
