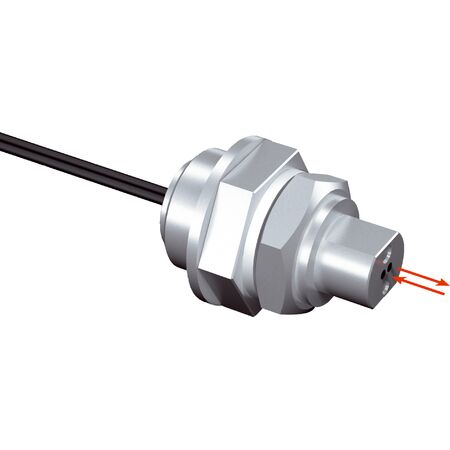

Fiber Optic Cable LL3-KX01 | Smooth Sleeve Design | Axial Light Emission | Stainless Steel Head | by SICK
The LL3-KX01 fiber optic cable is designed for standard proximity sensing applications, featuring a smooth sleeve fiber-optic head and axial light emission. Built with a durable stainless steel head and a polyethylene sheath, this cable ensures reliability and longevity in industrial settings, compatible with fiber-optic amplifiers like WLL80 and WLL180.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range: Depending on fiber optic amplifier used
- Integrated lens: No
- Compatibility tip adapters: No
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M10
- Fiber length: 3,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.0 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Operating temperature range: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 3000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve fiber-optic head
- Axial light emission
- Stainless steel optical fiber head
- Single fiber arrangement with 1.0 mm core diameter
- 3,000 mm fiber length with 25 mm bending radius
- Polyethylene (PE) sheath for durability
- Adapter end sleeves supplied
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and adherence to safety standards.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable polyethylene sheath extends product life reducing waste
- Low power consumption when used with compatible fiber-optic amplifiers
Warranty Information
Warranty information available upon request from manufacturer.
Available Now
The SICK LL3-KX01 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications.
