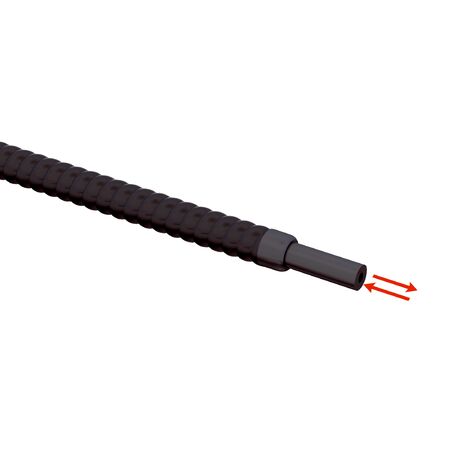

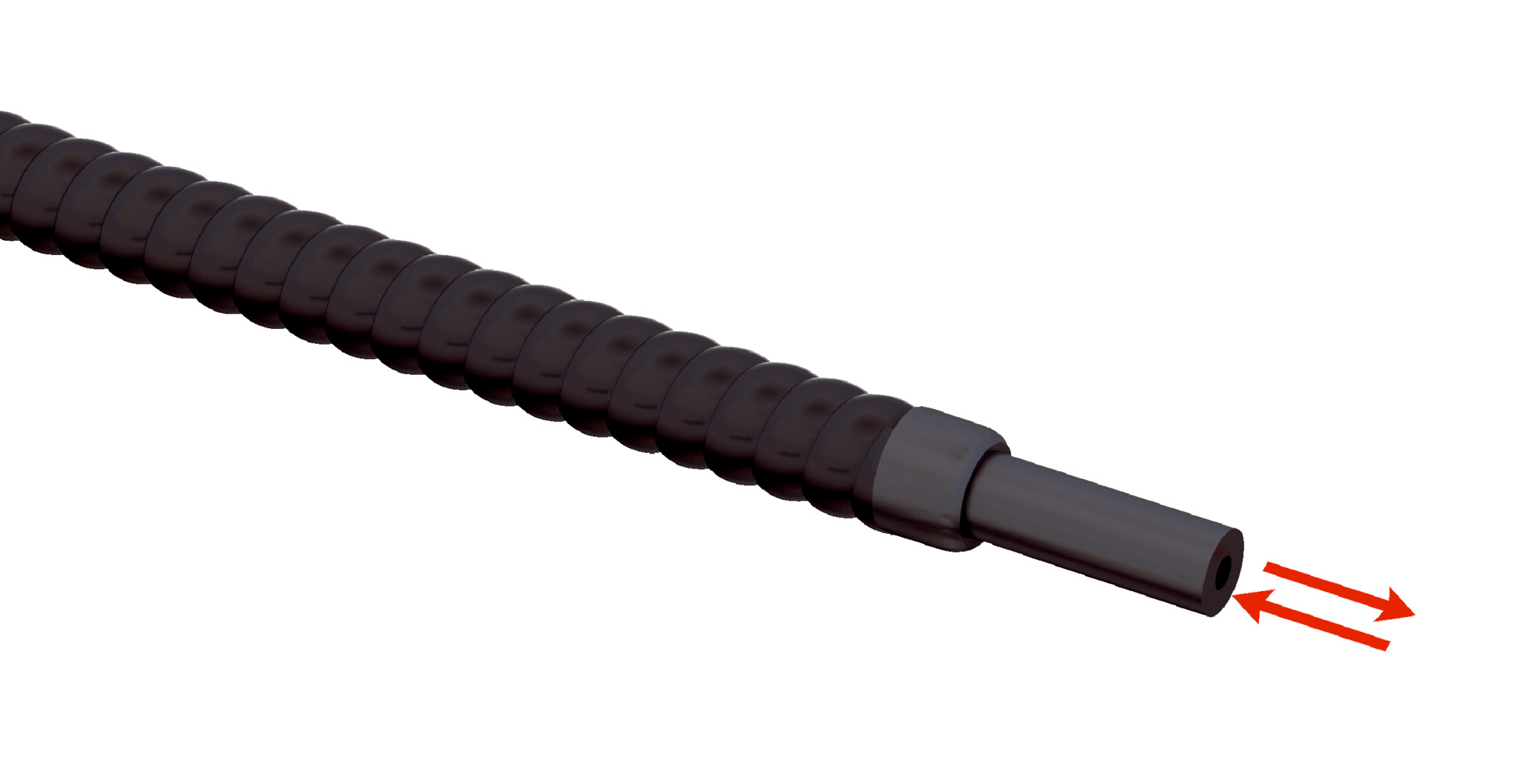

Fiber Optic Cable LL3-LM31450 | Smooth Sleeve & Long End Sleeve | Axial Light Emission | 60° Angle of Dispersion | by SICK
The LL3-LM31450 fiber optic cable is designed for standard proximity sensing applications, featuring a smooth sleeve and long end sleeve design for optimal performance. With an axial light emission and a 60° angle of dispersion, this cable is compatible with infrared light and ideal for industrial automation and object detection, ensuring precise sensing and improved efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Optical fiber head array width: 10.9 mm
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 11.4 mm
- Fiber length: 450 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Material sheath: Polyvinylchlorid (PVC)
- Fibers: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 6mm x 450mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve and long end sleeve design
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light
- No adapter end sleeves required
- Multi-fiber core structure with glass fibers
- Chrome-plated metal coil optical fiber head
- Polyvinylchloride (PVC) sheath for durability
- Bending radius of 20 mm, fiber length 450 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and optimal performance.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing to reduce waste and improve automation efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-LM31450 fiber-optic cable is available for immediate purchase, ideal for industrial automation and proximity sensing applications.
