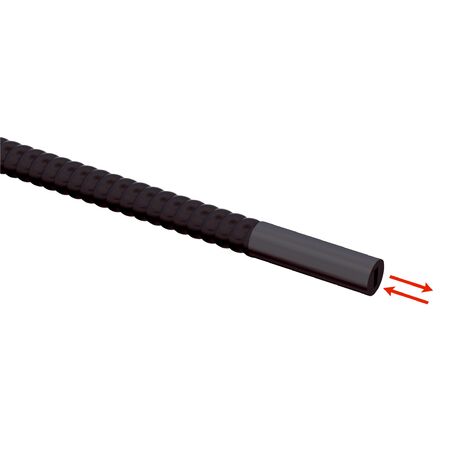

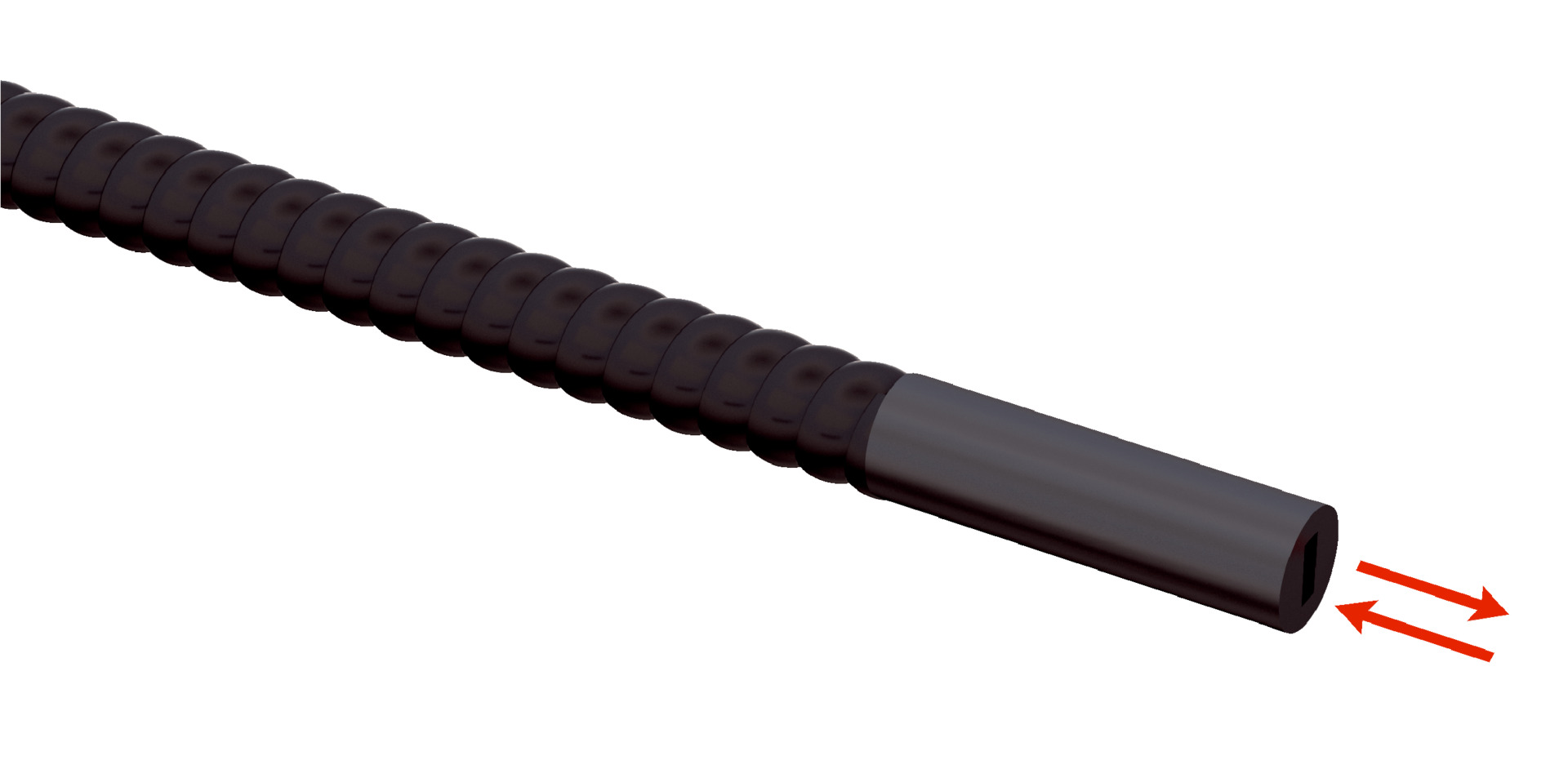

Fiber Optic Cable LL3-LM35450 | Smooth Sleeve Design | Axial Light Emission | Infrared Compatible | by SICK
The LL3-LM35450 fiber optic cable is designed for standard proximity sensing applications, featuring a smooth sleeve fiber-optic head and axial light emission with a 60° angle of dispersion. Ideal for use with fiber-optic amplifiers, this durable cable ensures reliable performance in various industrial settings, reducing electromagnetic interference and energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Fiber length: 450 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Material optical fiber head: Chrome-plated metal coil
- Sheath: Polyvinylchloride (PVC)
- Fibers: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 5.8mm x 450mm x 5.8mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve fiber-optic head design
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light
- No integrated lens or tip adapters required
- Multi-fiber core structure with glass fibers
- Chrome-plated metal coil optical fiber head
- Polyvinylchloride (PVC) sheath for durability
- Dynamic flexibility not suitable for robotics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and optimal performance.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-metallic fiber optic sensing reduces electromagnetic interference and energy consumption
- Durable PVC sheath extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-LM35450 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring reliable fiber-optic connections.
