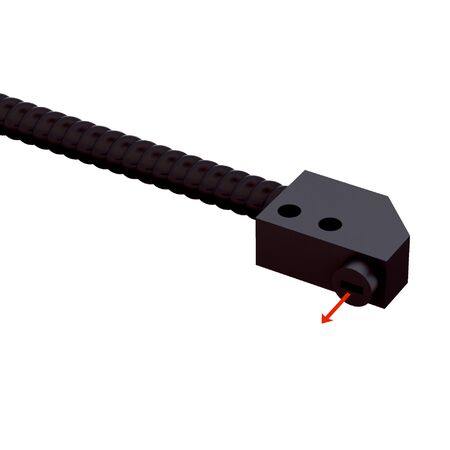

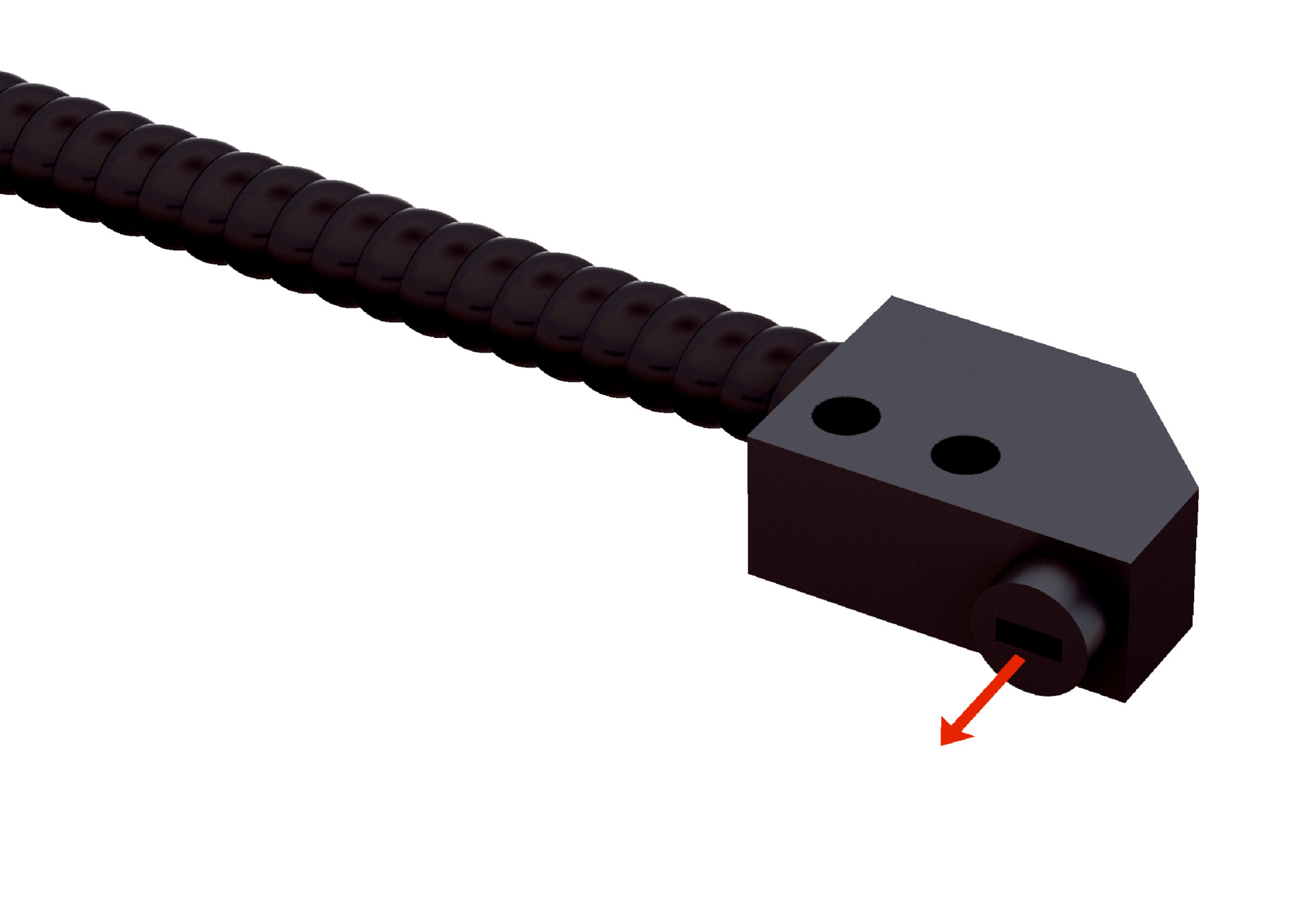

Fiber Optic Cable LL3-LM38150 | 90° Deflection | Radial Light Emission | Multi-Fiber Core | by SICK
The LL3-LM38150 fiber optic cable is designed for standard sensing applications, featuring a flat type head with 90° deflection and radial light emission. Ideal for industrial automation and object detection, it supports minimal object diameters of 0.5 mm and is compatible with infrared light, ensuring precise sensing and improved process efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Chrome-plated metal coil
- Light emission: Radial
- Fiber length: 150 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyvinylchlorid (PVC)
- Fibers material: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 10mm x 150mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection
- Angle of dispersion: 60°
- Radial light emission from chrome-plated metal coil optical fiber head
- Multi-fiber core structure with glass fibers
- Sheath made of Polyvinylchlorid (PVC)
- Compatible with infrared light without need for adapter end sleeves
- Fiber length: 150 mm with 20 mm bending radius
- Dynamic flexibility not suitable for robotics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and alignment with compatible amplifiers.
Applications
- Standard sensing applications requiring fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection with minimal object diameter of 0.5 mm
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-LM38150 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
