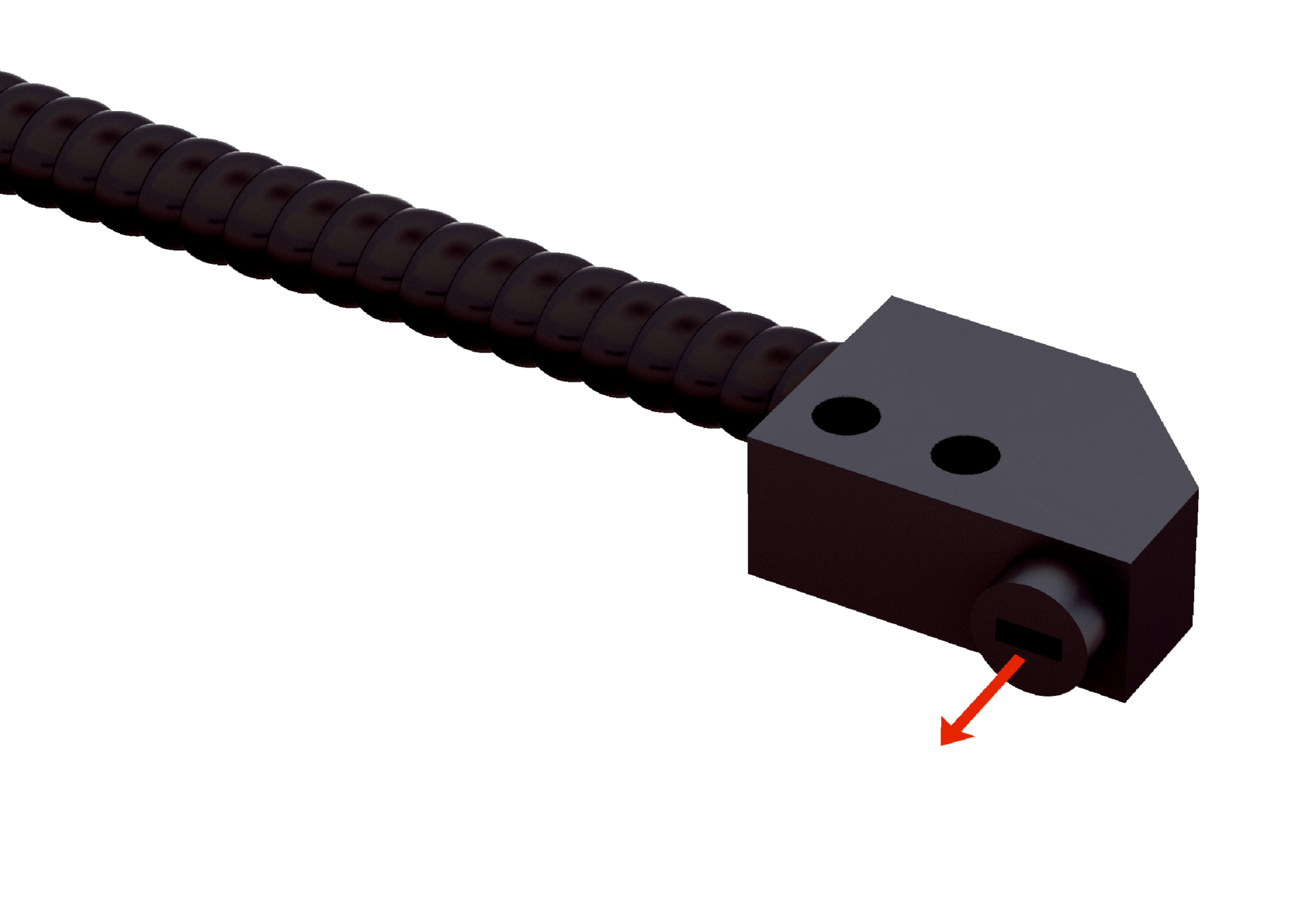

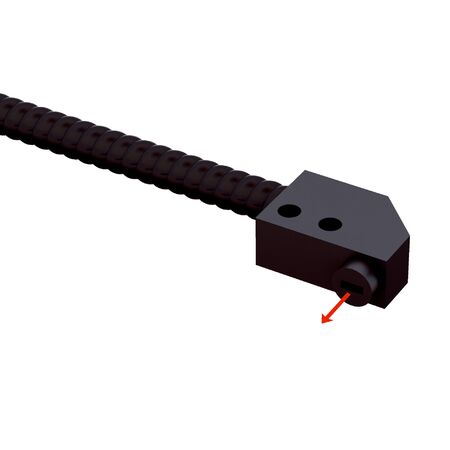

Fiber Optic Cable LL3-LM38450 | 90° Deflection | Multi-Fiber Core | Radial Light Emission | by SICK
The LL3-LM38450 fiber optic cable is designed for through-beam sensing applications, featuring a flat type head with 90° deflection and a multi-fiber core structure. With a sensing range of up to 750 mm and a minimal object diameter of 0.5 mm, it's perfect for industrial automation and precise object detection. Built to operate in temperatures from -10 °C to +60 °C, this durable cable enhances process efficiency and reduces waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range: Dependent on fiber optic amplifier used (up to 750 mm with WLL180T)
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Light emission: Radial
- Fiber length: 450 mm
- Bending radius: 20 mm
- Outside diameter: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Material: Chrome-plated metal coil head, PVC sheath, glass fibers
- Operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 10mm x 450mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection
- Angle of dispersion: 60°
- Radial light emission from chrome-plated metal coil optical fiber head
- Multi-fiber core structure with 450 mm fiber length and 2.2 mm outside diameter
- Compatible with infrared light without need for adapter end sleeves
- Sheath made of polyvinylchloride (PVC) with glass fibers
- Operating temperature range from –10 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and connection with compatible amplifiers.
Applications
- Standard sensing applications requiring through-beam fiber-optic systems
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection with minimal object diameter of 0.5 mm
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-LM38450 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise through-beam detection.
