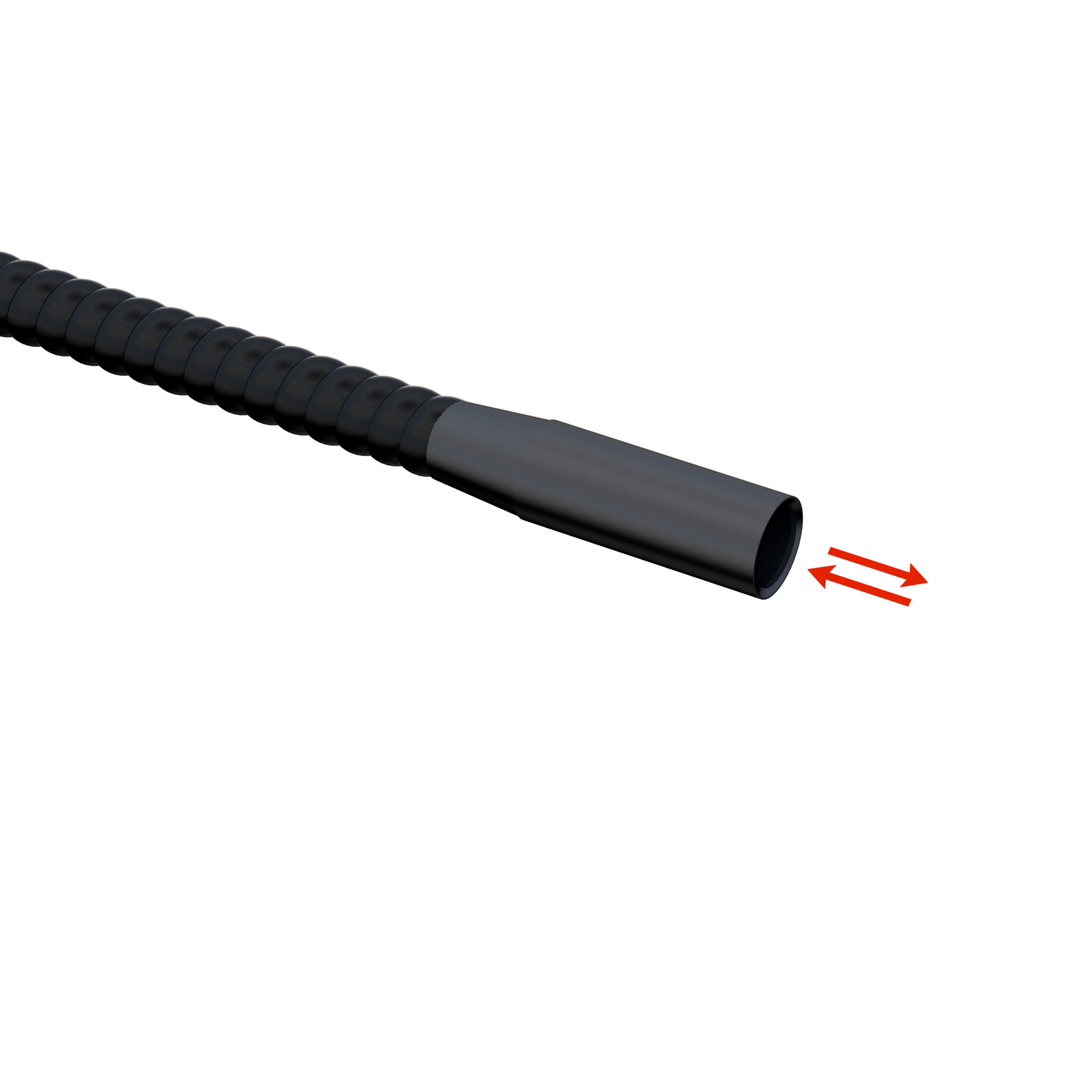

Fiber Optic Cable LL3-LM401000 | Smooth Sleeve Design | Axial Light Emission | Multi-Fiber Core | by SICK
The LL3-LM401000 fiber optic cable is designed for standard proximity sensing applications, featuring a smooth sleeve fiber-optic head and axial light emission with an integrated lens. Built for industrial use, this durable cable has a minimal object diameter detection of 0.5 mm and is compatible with various fiber-optic amplifiers, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 53.13°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 7 mm
- Fiber length: 1000 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath: Chrome-plated helical metal spring with PVC sheathing
- Fibers: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 7mm x 1000mm x 7mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve fiber-optic head
- Axial light emission with integrated lens
- Multi-fiber core structure with glass fibers
- Stainless steel optical fiber head with chrome-plated helical metal spring and PVC sheath
- Compatibility with infrared light
- Minimal object diameter detection of 0.5 mm
- Bending radius of 20 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and optimal performance.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and glass fiber construction ensures long product life reducing waste
- Low power consumption when used with compatible fiber-optic amplifiers
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-LM401000 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring reliable fiber-optic connections.
