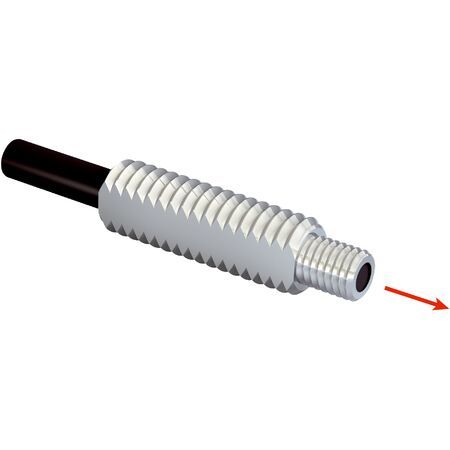

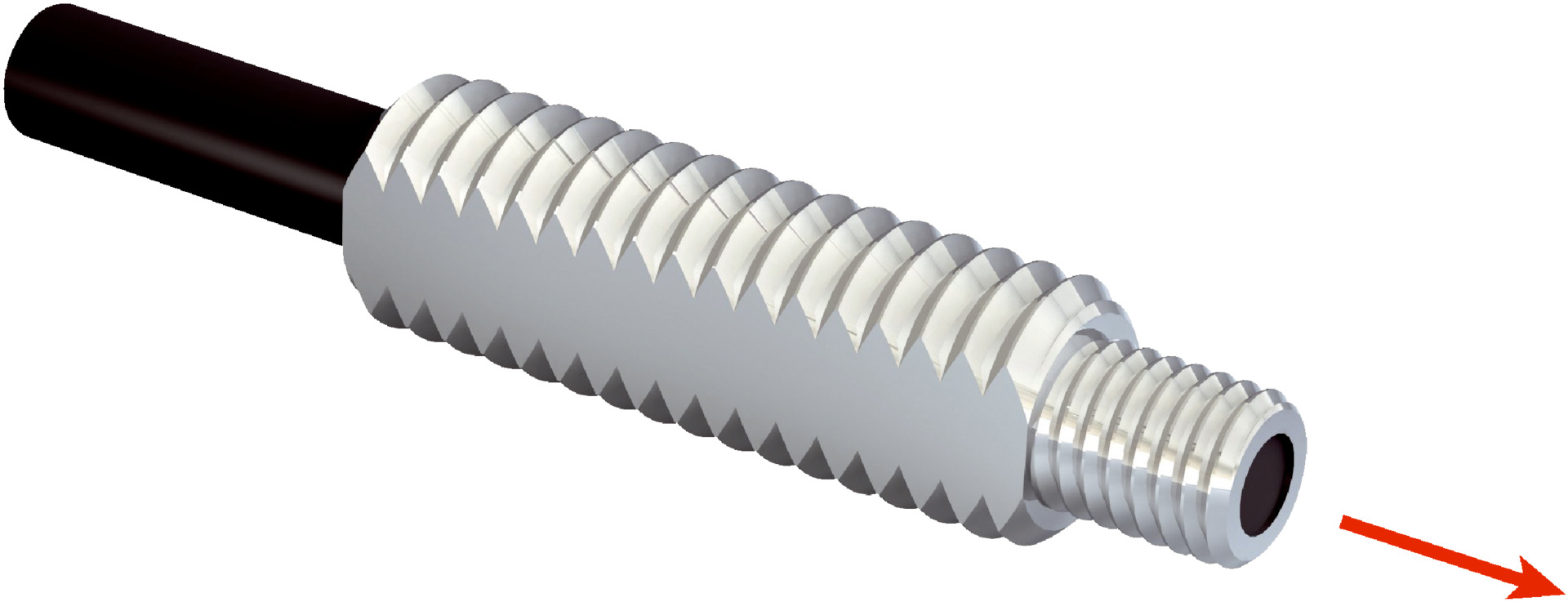

Fiber Optic Cable LL3-TB01-10 | Through-Beam System | 5,510 mm Sensing Range | Threaded Sleeve Design | by SICK
The LL3-TB01-10 fiber optic cable features a through-beam system with a sender and receiver, offering a maximum sensing range of 5,510 mm. Designed for standard sensing applications, this durable cable is ideal for industrial automation and compatible with various fiber-optic amplifiers. Its threaded sleeve design ensures secure mounting, making it a reliable choice for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range max: 5,510 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 10,000 mm
- Bending radius: 30 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.5 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Sensing range up to 5,510 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.5 mm
- 60° angle of dispersion
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and secure mounting.
Applications
- Standard sensing applications requiring fiber-optic through-beam detection
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life reducing waste
- Low power consumption when used with compatible fiber-optic amplifiers
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-TB01-10 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
