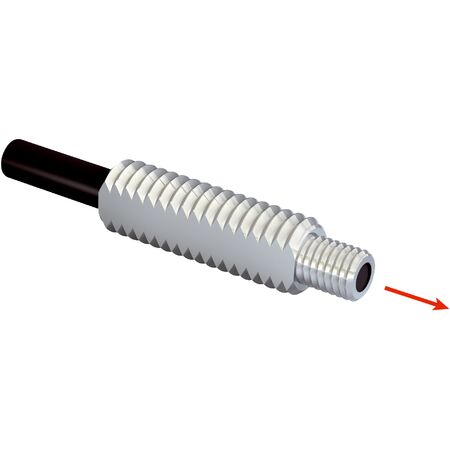

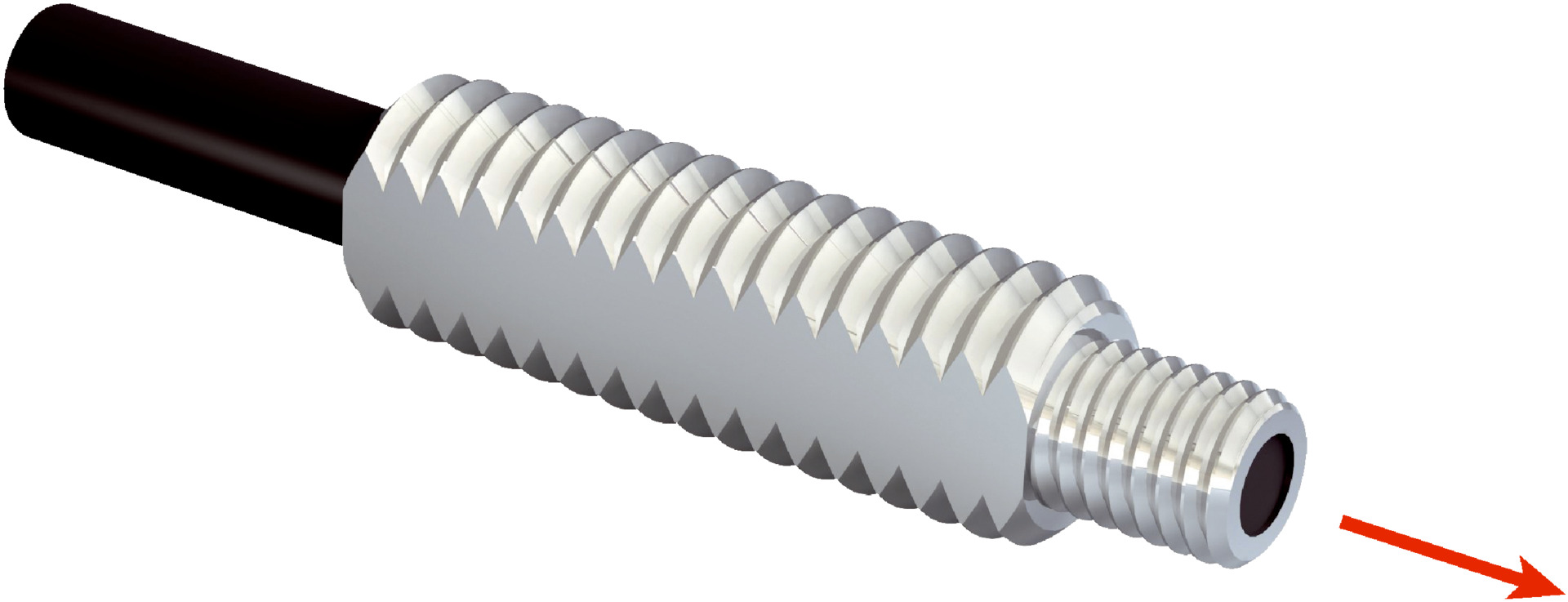

Fiber Optic Cable LL3-TB01 | Through-Beam System | 3600mm Sensing Range | Stainless Steel Design | by SICK
The LL3-TB01 fiber optic cable features a through-beam system with a sender and receiver, making it ideal for standard sensing applications in industrial automation. With a maximum sensing range of 3,600 mm and a minimal object diameter detection of just 0.5 mm, this durable cable is designed for compatibility with various fiber-optic amplifiers. Built with a stainless steel head and polyethylene sheath, it ensures longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 3,600 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2,000 mm
- Bending radius: 30 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.5 mm Single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Maximum sensing range up to 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.5 mm
- 60° angle of dispersion
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Stainless steel optical fiber head with axial light emission
- Fiber length of 2,000 mm with 30 mm bending radius
- Single fiber arrangement with 1.5 mm core diameter
- Material: Polyethylene sheath and Polymethylmethacrylate fibers
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and secure mounting.
Applications
- Standard sensing applications requiring fiber-optic through-beam systems
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life and reduce waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-TB01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
