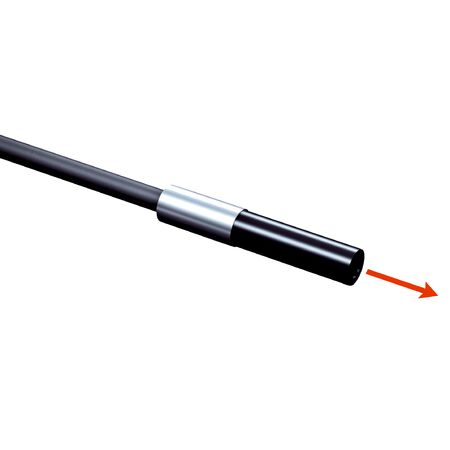

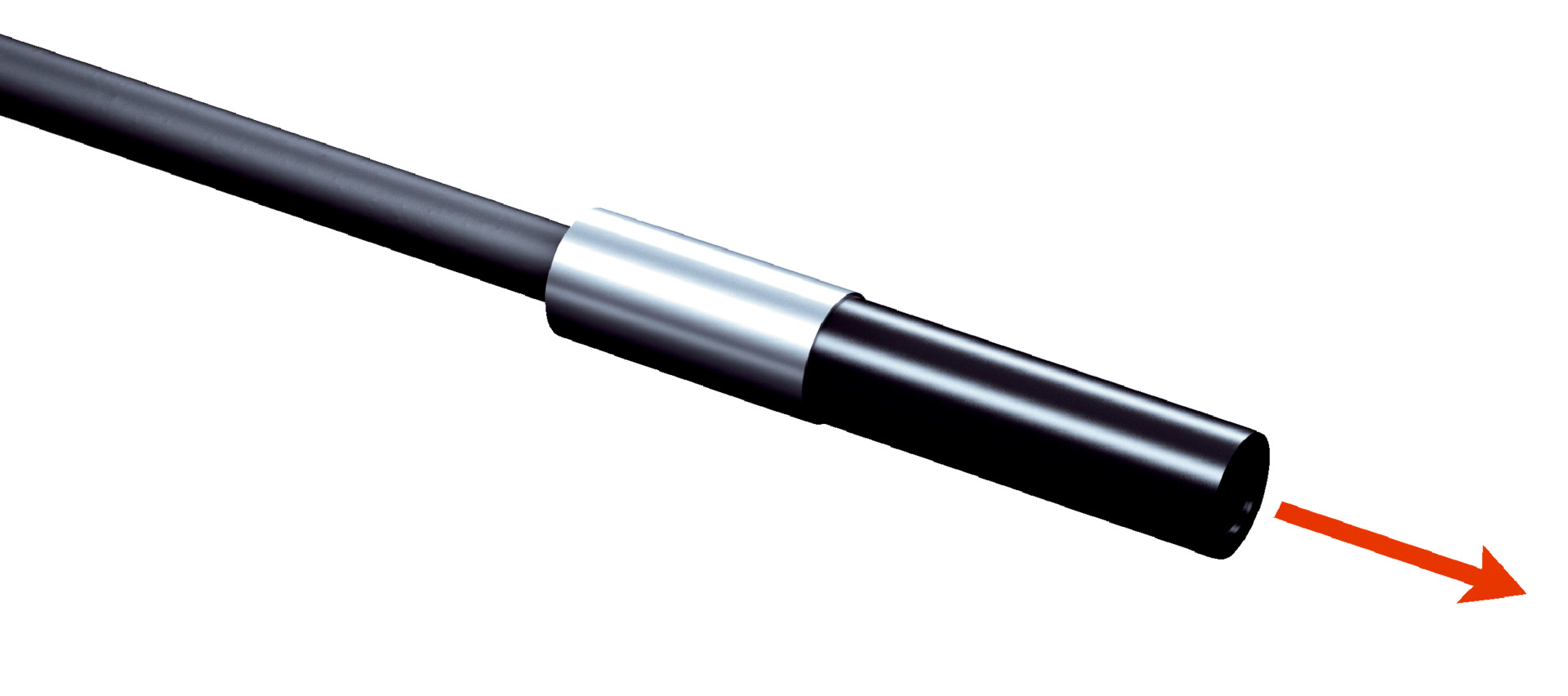

Fiber Optic Cable LL3-TG01 | Through-Beam System | 3600 mm Sensing Range | 0.06 mm Object Detection | by SICK
The LL3-TG01 fiber optic cable features a through-beam system with a sender and receiver, providing a maximum sensing range of 3600 mm and precise detection of objects as small as 0.06 mm. Ideal for applications in LCD manufacturing and the semiconductor industry, this durable cable is designed for optimal performance in challenging environments, ensuring reliable operation and reduced material waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Sensing range max: 3600 mm with WLL80 at 8 ms
- Minimal object diameter: 0.06 mm
- Angle of dispersion: 2.29°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Included with delivery: FC fiber cutter (5304141)
- Optical fiber head material: Plastic
- Smooth sleeve diameter: 3.7 mm
- Optical fiber taper diameter: ≥ 3.5 mm
- Optical fiber taper length after 2 mm: ≥ 12 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 0.75 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Small 2° aperture angle for precise detection
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Smooth sleeve and long end sleeve fiber-optic head design
- Axial light emission with integrated lens
- Optical fiber cable can be shortened without adapter end sleeves
- Minimal object diameter detection of 0.06 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and optimal performance.
Applications
- LCD manufacturing
- Clear material detection
- Semiconductor industry
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise detection reducing material waste
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TG01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications in electronics and semiconductor manufacturing.
