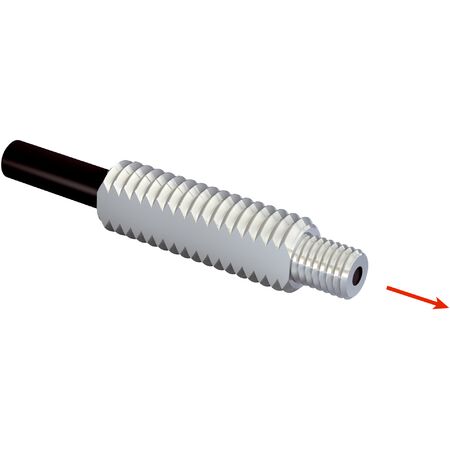

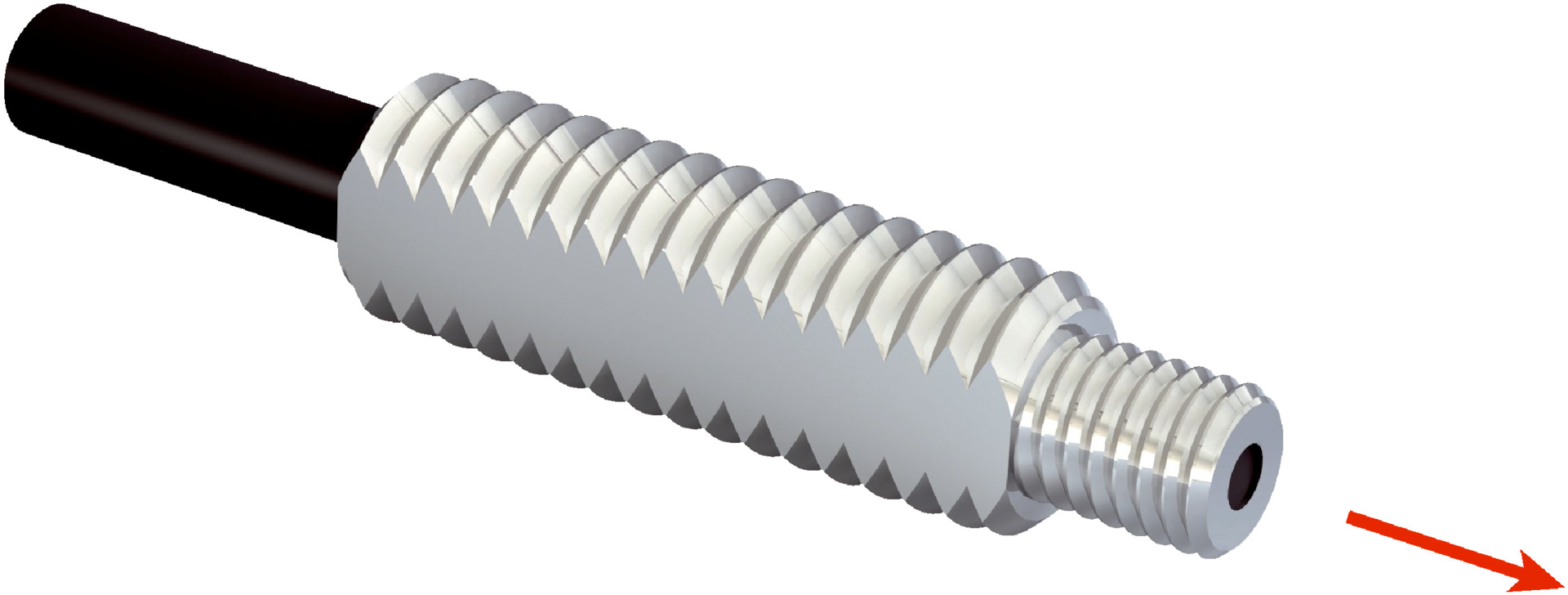

Fiber Optic Cable LL3-TH01 | Through-Beam System | Heat-Resistant | Threaded Sleeve Design | by SICK
The LL3-TH01 Fiber Optic Cable is designed for industrial sensing applications, featuring a through-beam system with sender and receiver for precise object detection. With a heat resistance of up to 100°C and a minimal object diameter of just 0.2 mm, this cable is perfect for harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range max: 3,265 mm with WLL80 at 8 ms
- Minimal object diameter: 0.2 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.0 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +100 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Heat-resistant up to ≥100°C
- Threaded sleeve fiber-optic head design
- Compatible with multiple fiber-optic amplifiers
- Optical fiber cable can be shortened without adapter end sleeves
- Axial light emission with 60° angle of dispersion
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper connection and handling of fiber-optic cables.
Applications
- Industrial sensing requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Precision object detection with minimal object diameter of 0.2 mm
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Heat resistance supports stable operation in harsh environments, reducing failure rates
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-TH01 Fiber-Optic Cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant fiber-optic solutions.
