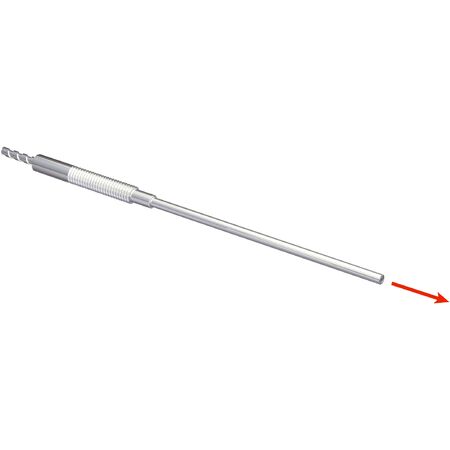

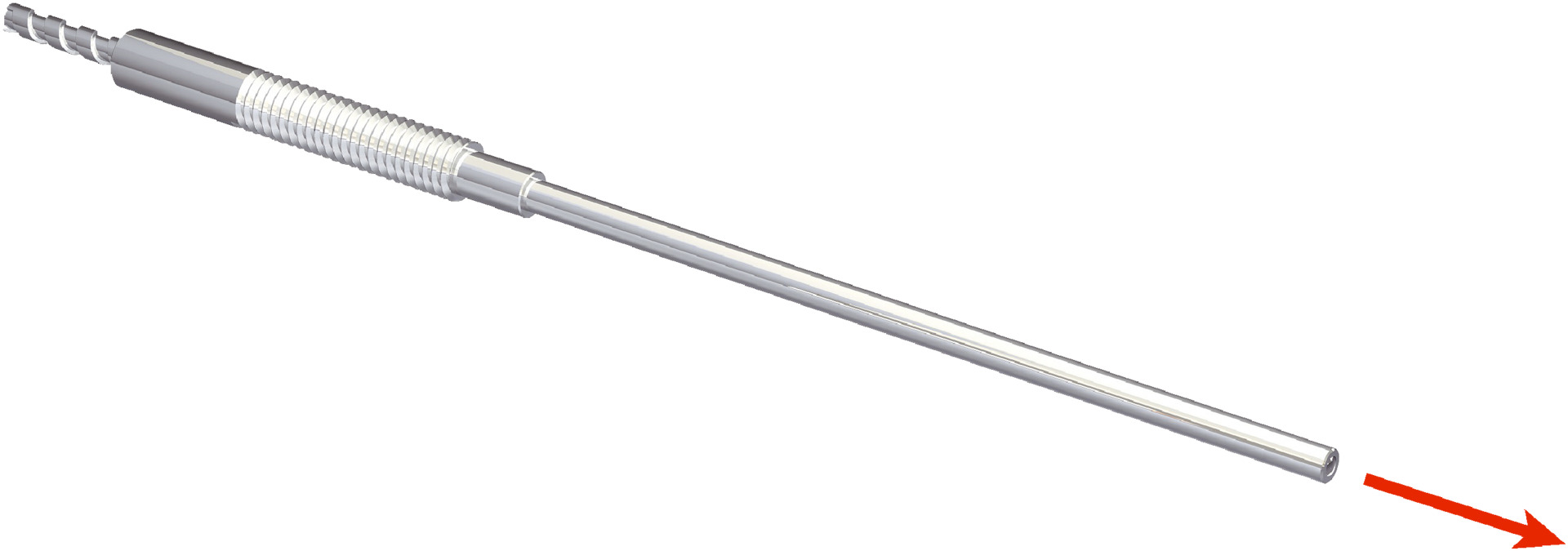

Fiber Optic Cable LL3-TH09 | Heat-Resistant up to 350°C | Threaded Sleeve Design | Axial Light Emission | by SICK
The LL3-TH09 fiber optic cable is designed for industrial sensing applications, featuring a heat-resistant capability of up to 350°C. With a threaded sleeve design and axial light emission, this cable ensures reliable performance in demanding environments. Ideal for use with compatible fiber-optic amplifiers, it offers a sensing range of up to 2,960 mm, making it perfect for precision applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Maximum sensing range: 2,960 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.04 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.1 mm
- Optical fiber taper length after 2 mm: ≥ 55 mm
- Minimum bend radius of end sleeve: 10 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.2 mm single fiber
- Sheath material: Stainless steel
- Fiber material: Glass
- Ambient operating temperature: –30 °C to +350 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Axial light emission
- Copper-zinc alloy optical fiber head with stainless steel sheath
- Single fiber arrangement with 2,000 mm fiber length
- Minimum bend radius of end sleeve 10 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures up to 350°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Heat resistance minimizes energy loss and improves system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-TH09 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat resistance and precision.
