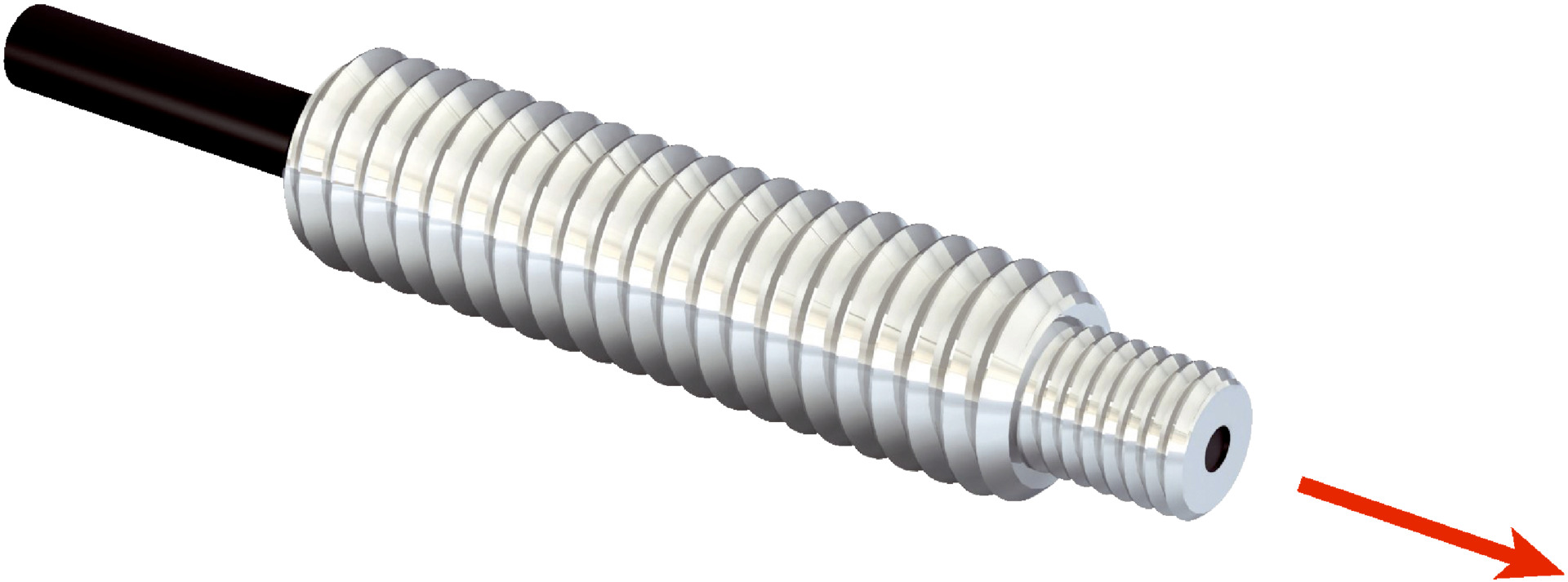

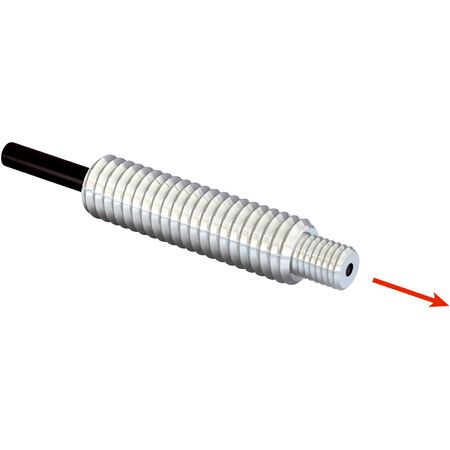

Fiber Optic Cable LL3-TH10 | Heat-Resistant Up to 200°C | Threaded Sleeve Design | Axial Light Emission | by SICK
The LL3-TH10 fiber optic cable is designed for industrial sensing in high-temperature environments, featuring a heat resistance of up to 200°C and a threaded sleeve head design. With a sensing range of 1600 mm and compatibility with infrared light, this cable is perfect for automation systems requiring precise object detection. Built with durable materials, it minimizes energy consumption and reduces waste, making it an ideal choice for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range max: 1600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 1000 mm
- Bending radius: 10 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.8 mm single fiber
- Sheath material: Polytetrafluorethylen (PTFE)
- Fibers: Glass
- Weight: 19 g
- Ambient operating temperature: –60 °C to +200 °C
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Heat-resistant up to 200°C
- Threaded sleeve fiber-optic head design
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light
- Includes mounting hardware: 4 x M4 hexagon nuts, 2 x washers
- Copper-zinc alloy optical fiber head with PTFE sheath and glass fibers
- Single fiber arrangement with 0.8 mm core diameter
- Fiber length 1000 mm with 10 mm bending radius
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial sensing in high-temperature environments
- Automation systems requiring precise object detection
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Heat resistance minimizes energy consumption for cooling in high-temperature environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TH10 fiber-optic cable is available for immediate purchase, ideal for industrial automation and sensing applications in high-temperature environments.
