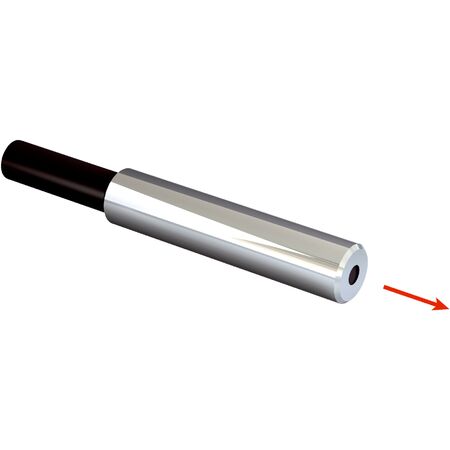

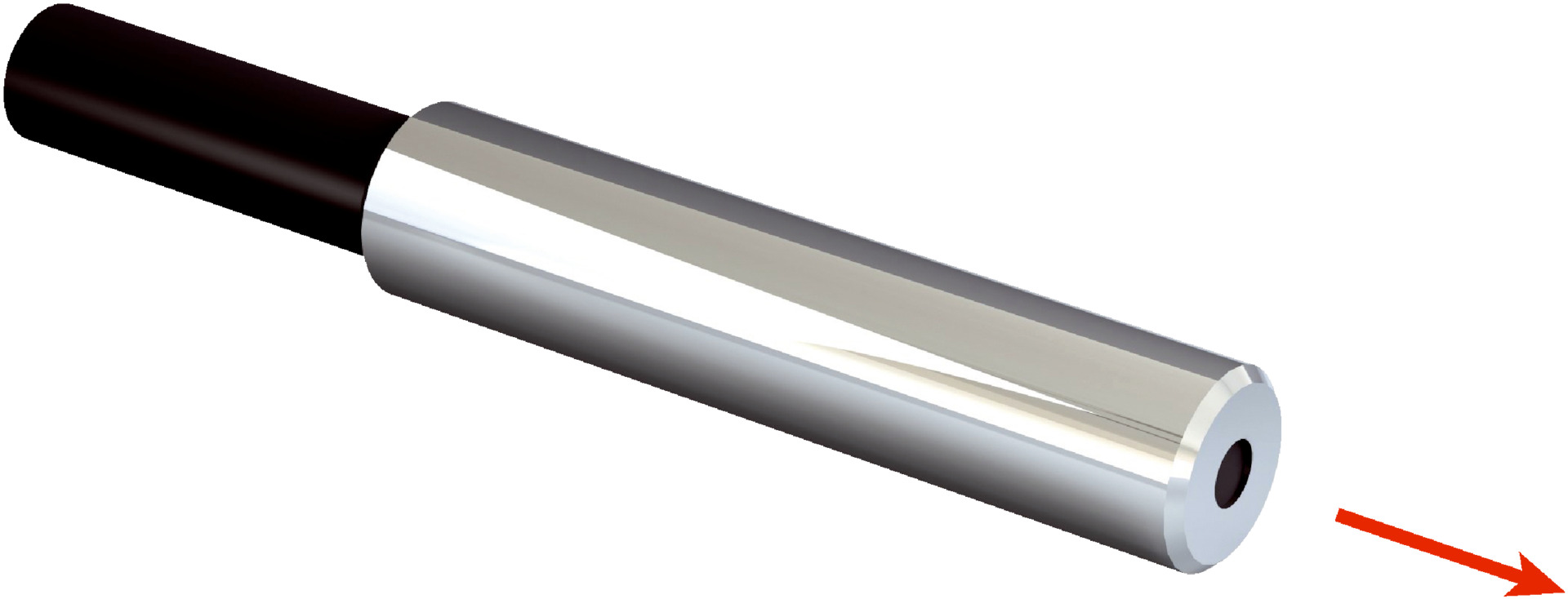

Fiber Optic Cable LL3-TK05 | Through-Beam System | 3600mm Sensing Range | Stainless Steel Design | by SICK
The LL3-TK05 fiber optic cable is designed for high-precision sensing applications, featuring a through-beam system with a maximum sensing range of 3,600 mm. Its smooth sleeve stainless steel head ensures durability and flexibility, making it ideal for industrial environments. With a minimal object diameter detection of just 0.2 mm and a 60° angle of dispersion, this cable is perfect for applications requiring reliable and accurate sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, stainless steel
- Sensing range max.: 3,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.2 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Fiber length: 2,000 mm
- Bending radius: 2 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.0 mm single fiber
- Material: Stainless steel head, polyethylene sheath, polymethylmethacrylate fibers
- Included with delivery: FC fiber cutter (5304141)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Smooth sleeve fiber-optic head design
- Maximum sensing range up to 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.2 mm
- 60° angle of dispersion
- Axial light emission
- Fiber-optic cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper fiber-optic cable handling and connection to compatible amplifiers.
Applications
- High flexible static sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-TK05 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring high precision and flexibility.
