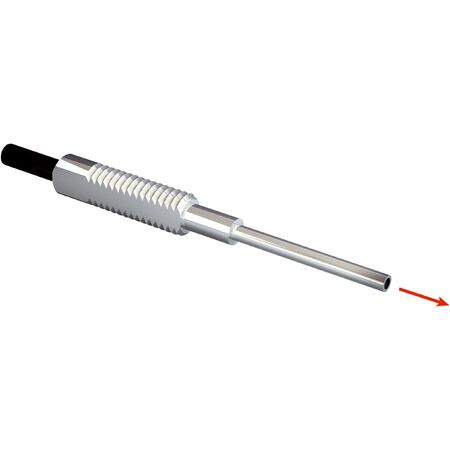

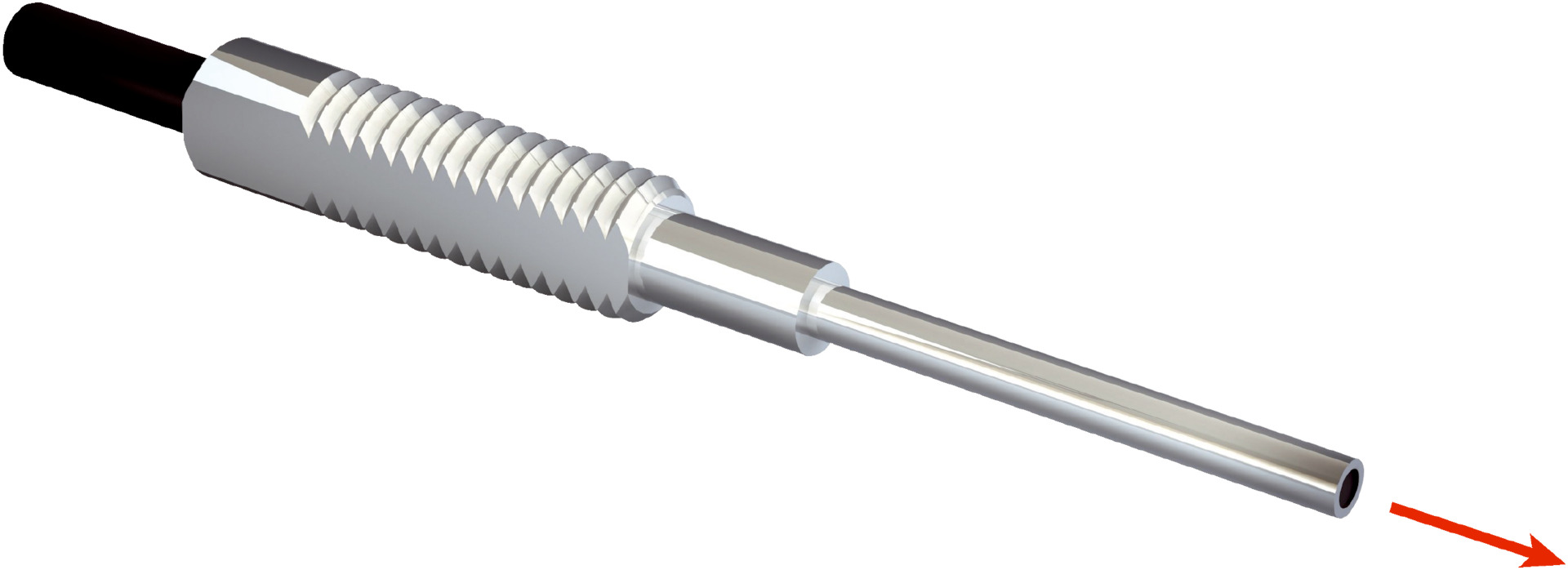

Fiber Optic Cable LL3-TK75 | Through-Beam System | 2000 mm Length | Stainless Steel Head | by SICK
The LL3-TK75 fiber optic cable features a through-beam system with a sender and receiver, designed for standard sensing applications. With a robust stainless steel optical fiber head and a 2000 mm length, it’s perfect for industrial automation and object detection, accommodating minimal object diameters of just 0.1 mm. Built to operate in extreme temperatures from -40 °C to +70 °C, this cable ensures reliability in diverse environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Sensing range max: 1,210 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.1 mm
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Optical fiber taper diameter: ≥ 1 mm
- Optical fiber taper length after 2 mm: ≥ 15 mm
- Fiber length: 2,000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.5 mm Single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with smooth sleeve and long end sleeve design
- Axial light emission with stainless steel optical fiber head
- Single fiber arrangement with 2,000 mm fiber length
- Polyethylene sheath and polymethylmethacrylate (PMMA) fibers
- Operating temperature range from -40 °C to +70 °C
- Requires adapter end sleeves
- Compatible with WLL80, WLL180, GLL170(T) fiber-optic amplifiers
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection with minimal object diameter of 0.1 mm
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Long operating temperature range supports diverse environments, reducing need for additional protective equipment
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TK75 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
