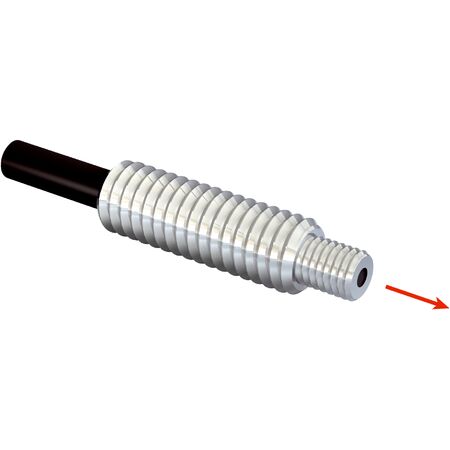

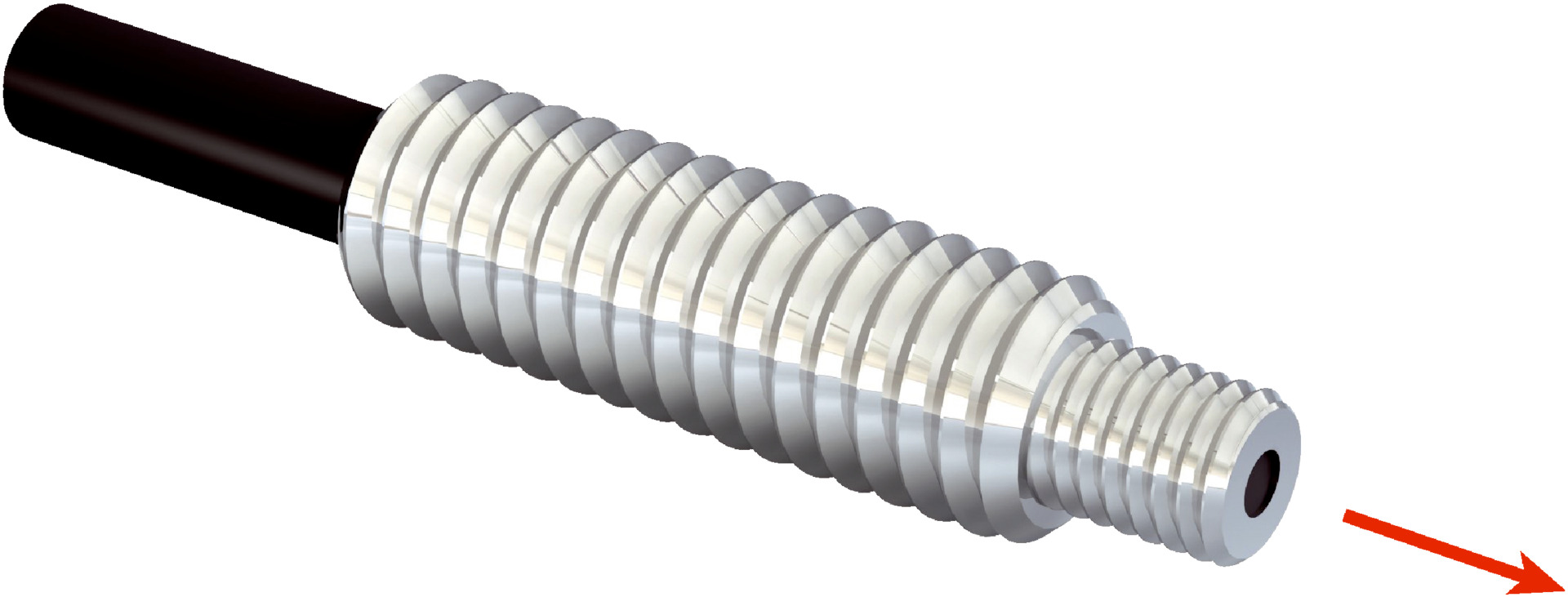

Fiber Optic Cable LL3-TK77 | Threaded Sleeve Design | 3600mm Sensing Range | Compatible with WLL80 | by SICK
The LL3-TK77 fiber optic cable is designed for high-performance sensing applications, featuring a threaded sleeve design and a maximum sensing range of 3,600 mm. Ideal for industrial automation, this cable ensures precise detection with a minimal object diameter of just 0.2 mm, making it perfect for various static sensing tasks. Built to withstand extreme temperatures from -40 °C to +70 °C, it is compatible with multiple fiber-optic amplifiers, ensuring versatility in your setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range max: 3,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.2 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber cable can be shortened: Yes
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2,000 mm
- Bending radius: 2 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.0 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Sensing range up to 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.2 mm
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and optimal performance.
Applications
- High flexible static sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TK77 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
