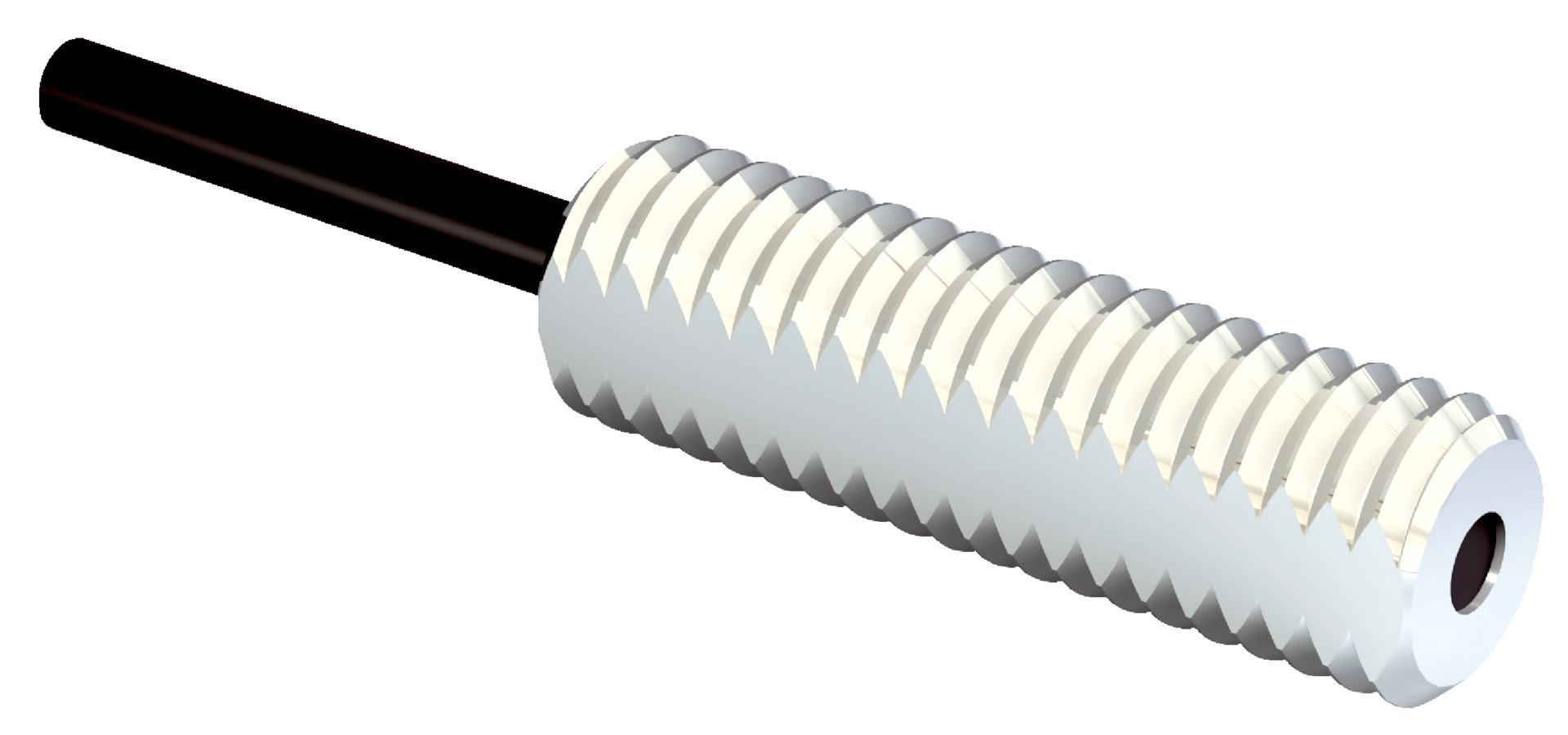

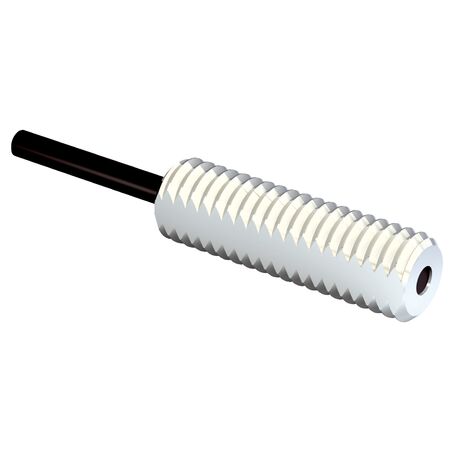

Fiber Optic Cable LL3-TM01 | Through-Beam System | 3600mm Sensing Range | Stainless Steel Head | by SICK
The LL3-TM01 fiber optic cable is designed for through-beam sensing applications, featuring a robust stainless steel head and a sensing range of up to 3,600 mm. Ideal for industrial automation and object detection, this cable supports minimal object diameters of 0.2 mm, ensuring precise performance in various environments. Built to withstand temperatures from -40 °C to +70 °C, it’s perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Maximum sensing range: 3,600 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.2 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.0 mm single fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Sensing range up to 3,600 mm with WLL80 at 8 ms
- Angle of dispersion 60°
- Optical fiber cable can be shortened
- Includes mounting accessories and adapter sleeves
- Stainless steel optical fiber head with axial light emission
- Fiber length 2,000 mm with 25 mm bending radius
- Single fiber core structure with 1.3 mm outside diameter cable
- Operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Standard sensing applications requiring through-beam fiber-optic systems
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection with minimal object diameter of 0.2 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life and reduce waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK LL3-TM01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise through-beam detection.
