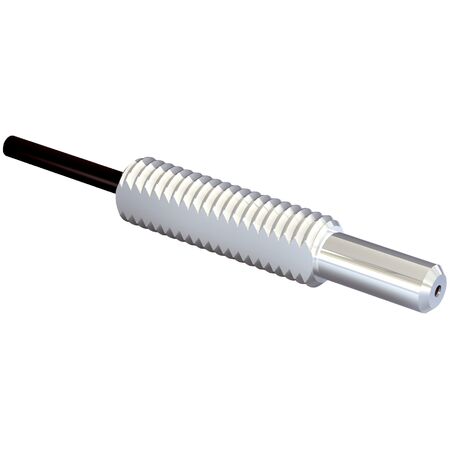

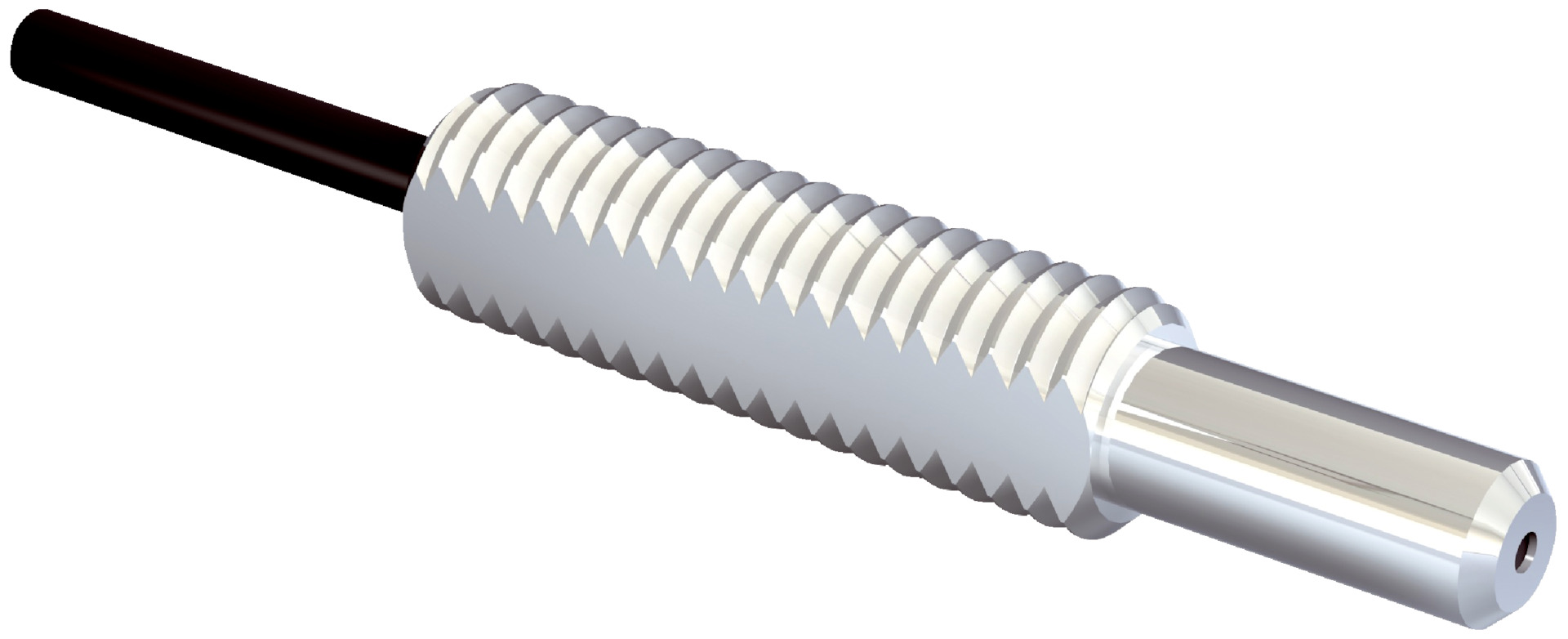

Fiber Optic Cable LL3-TM02 | Through-Beam System | Threaded Sleeve Design | Sensing Range 1540mm | by SICK
The LL3-TM02 fiber optic cable features a through-beam system with a threaded sleeve design, making it ideal for industrial automation and object detection. With a sensing range of up to 1,540 mm and a minimal object diameter detection of just 0.1 mm, this durable cable ensures precise sensing for enhanced process efficiency. Built for compatibility with various fiber-optic amplifiers, it’s perfect for standard sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max: 1,540 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.1 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Optical fiber taper diameter: ≥ 2 mm
- Optical fiber taper length after 2 mm: ≥ 5 mm
- Fiber length: 2,000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 0.5 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Threaded sleeve fiber-optic head design
- Sensing range up to 1,540 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.1 mm
- Angle of dispersion 60°
- Optical fiber cable can be shortened
- Includes mounting hardware and adapter sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard fiber-optic sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing to reduce waste and improve process efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TM02 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
