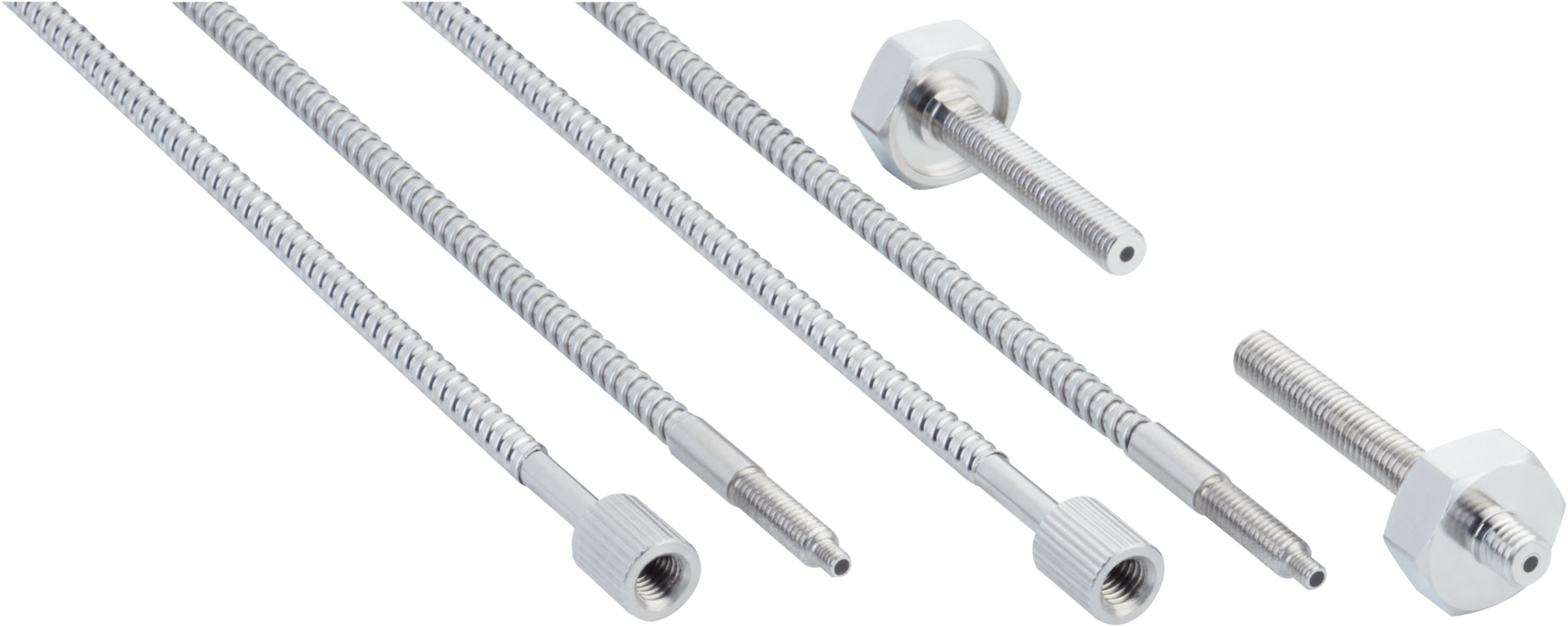

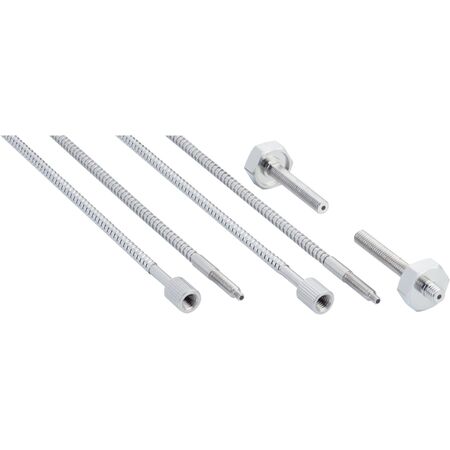

Fiber Optic Cable LL3-TN011300 | Vacuum Resistant | Heat Resistant Up to 250°C | Axial Light Emission | by SICK
The LL3-TN011300 fiber optic cable is designed for high-temperature and vacuum environments, featuring a threaded sleeve head design and vacuum resistance down to 10^-7 mbar. Ideal for industrial automation and robotics sensing, this durable cable ensures precise sensing and improved process efficiency, making it a reliable choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Vacuum resistance: 10^-7 mbar
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Max sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 1300 mm
- Bending radius: 23 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Operating temperature range: -40°C to +250°C
- Dimensions (H x L x W): 10mm x 1300mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Threaded sleeve fiber-optic head design
- Vacuum resistance down to 10^-7 mbar
- Heat resistant up to 250°C
- Axial light emission with 60° angle of dispersion
- Stainless steel optical fiber head and sheath
- Multi-fiber glass core with 1.5 mm diameter
- Includes fibers for vacuum side, vacuum leadthrough, adapter cable for atmospheric side, and mounting material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems and vacuum environment requirements to ensure proper setup and safety.
Applications
- Vacuum zones requiring fiber-optic sensing
- High temperature environments (up to 250°C)
- Industrial automation and robotics sensing
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing in industrial automation, reducing waste and improving process efficiency
- Durable stainless steel construction extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TN011300 fiber-optic cable is available for immediate purchase, ideal for industrial vacuum and high-temperature sensing applications.
