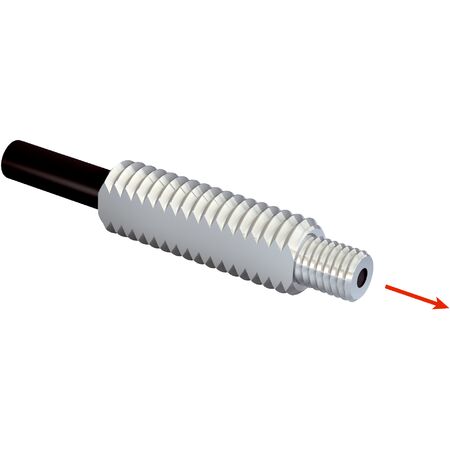

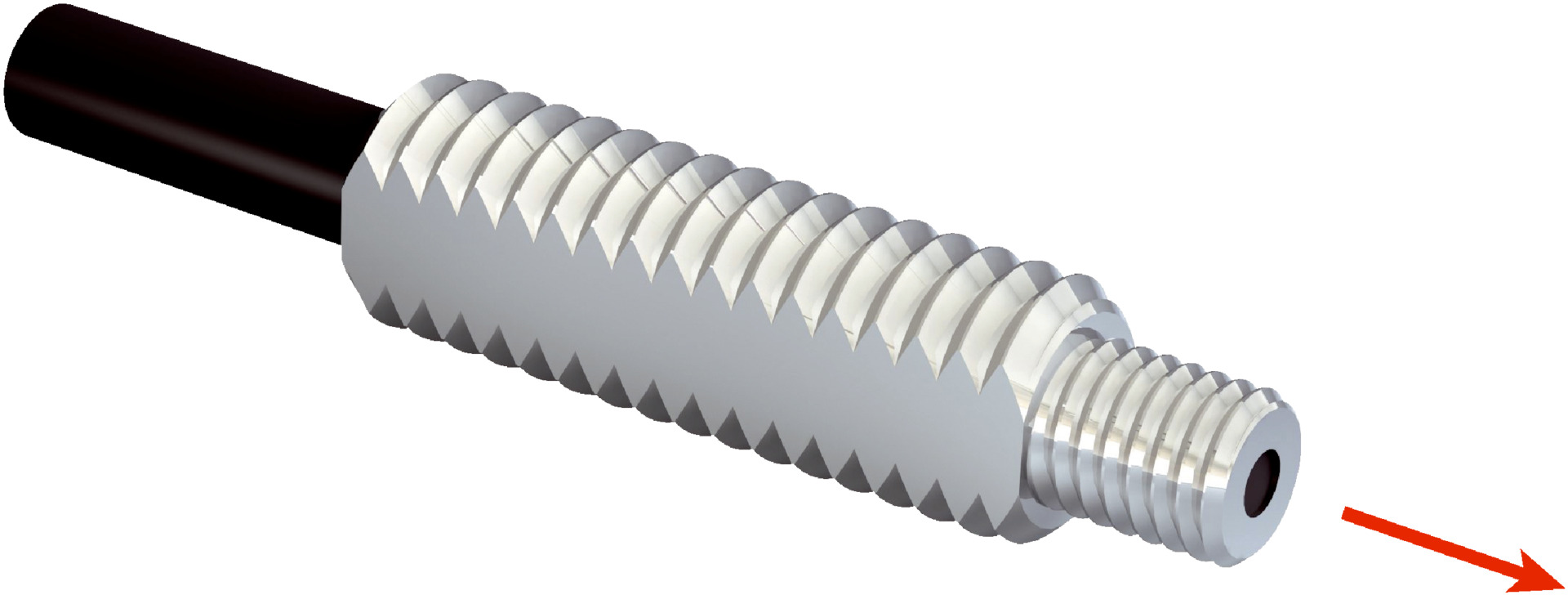

Fiber Optic Cable LL3-TR015000 | Through-Beam System | 0.3mm Detection | 5000mm Length | by SICK
The Fiber Optic Cable LL3-TR015000 features a through-beam system with a sender and receiver, designed for high flexibility in static sensing applications. With a minimal object diameter detection of just 0.3 mm and a robust stainless steel optical fiber head, this cable is perfect for integration with fiber-optic amplifiers in industrial automation and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Minimal object diameter detection of 0.3 mm
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened
- Mounting included with 4 x M3 hexagon nuts and 4 x washers
- Stainless steel optical fiber head with axial light emission
- M4 thread diameter housing
- Fiber length 5000 mm with 4 mm bending radius
- Dynamic flexibility suitable for robotics
- Single fiber arrangement with 1 mm core structure
- Sheath made of Polyethylene (PE) and fibers of Polymethylmethacrylate (PMMA)
- Ambient operating temperature from -55 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with compatible fiber-optic amplifiers and secure mounting.
Applications
- High flexible static sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and long fiber length reduce replacement frequency and waste
- High flexibility supports robotic applications, enhancing automation efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LL3-TR015000 Fiber-Optic Cable is available for immediate purchase, ideal for industrial sensing and automation applications.
