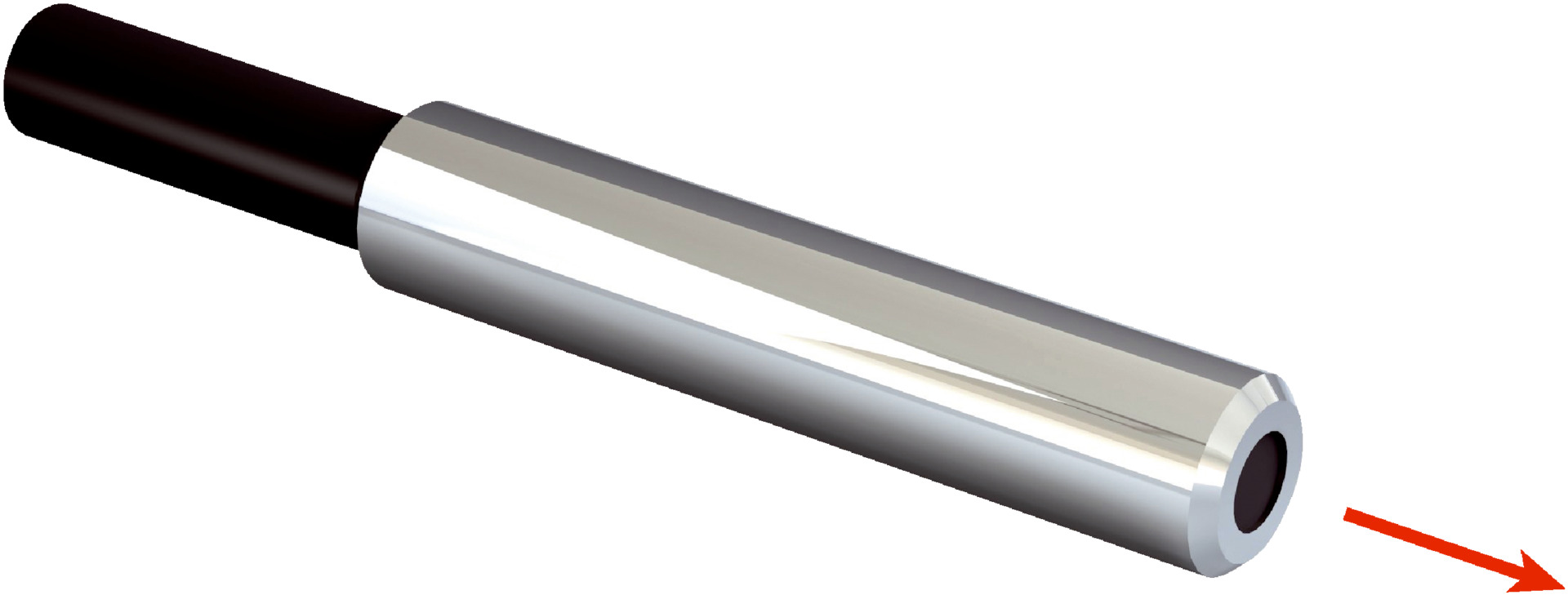

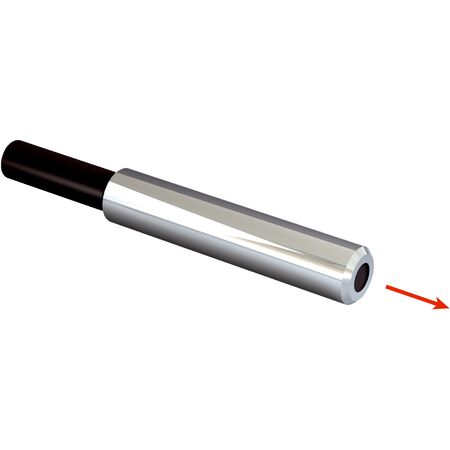

Fiber Optic Cable LL3-TS07 | Through-Beam System | 3600mm Sensing Range | Smooth Sleeve Design | by SICK
The Fiber Optic Cable LL3-TS07 features a through-beam system with a sender and receiver, providing a maximum sensing range of 3,600 mm. Designed for standard fiber-optic sensing applications, this cable is ideal for industrial automation, ensuring precise object detection with a minimal object diameter of just 0.5 mm. Built with durable stainless steel and polyethylene materials, it offers long-lasting performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 3,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 3 mm
- Optical fiber length: 2,000 mm
- Bending radius: 30 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.5 mm Single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Smooth sleeve fiber-optic head design
- Maximum sensing range of 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.5 mm
- 60° angle of dispersion
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and connection.
Applications
- Standard fiber-optic sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life reducing waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Warranty details available upon request from SICK or authorized distributors.
Available Now
The SICK LL3-TS07 Fiber-optic Cable is available for immediate purchase, ideal for industrial automation and sensing applications requiring precise object detection.
