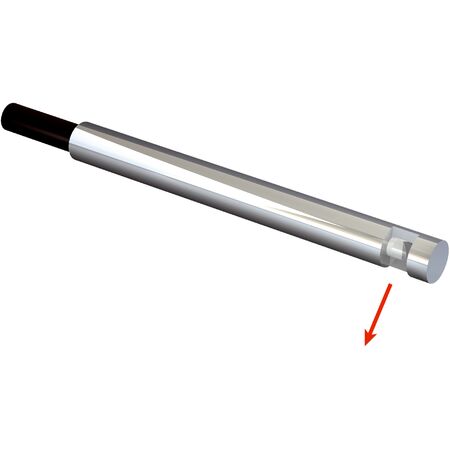

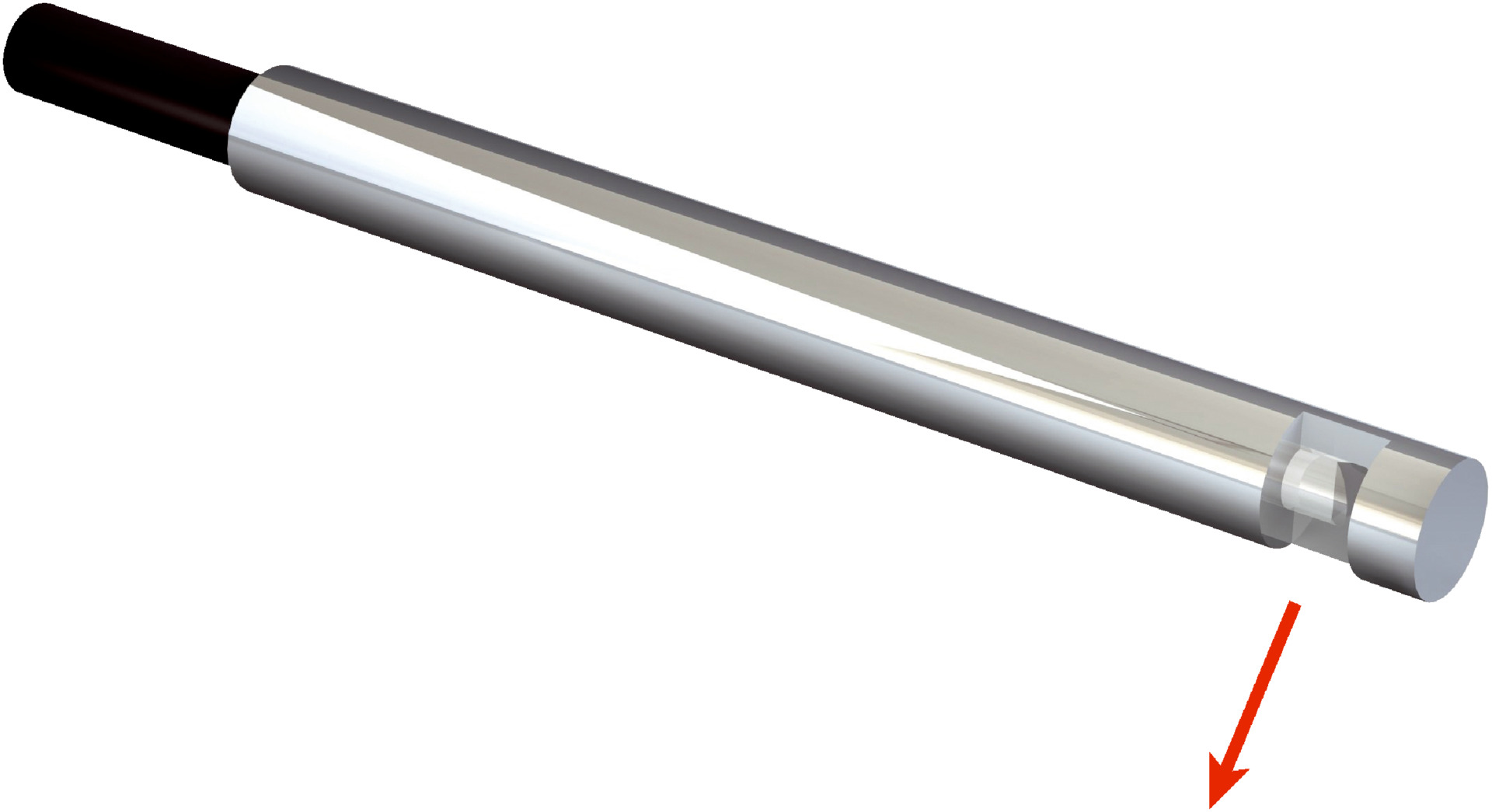

Fiber Optic Cable LL3-TS08 | 90° Deflection | 2,640 mm Sensing Range | Stainless Steel Head | by SICK
The Fiber Optic Cable LL3-TS08 features a through-beam system with a smooth sleeve and 90° deflection, making it ideal for standard sensing applications. With a maximum sensing range of 2,640 mm and a minimal object diameter detection of just 0.2 mm, this cable is perfect for use with compatible fiber-optic amplifiers in industrial automation settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 2,640 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.2 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Light emission: Radial
- Smooth sleeve diameter: 3 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.0 mm single fiber
- Material optical fiber head: Stainless steel
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with smooth sleeve and 90° deflection
- Maximum sensing range up to 2,640 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.2 mm
- Angle of dispersion 60°
- Optical fiber cable can be shortened without adapter end sleeves
- Radial light emission from stainless steel optical fiber head
- Fiber length 2,000 mm with 25 mm bending radius
- Single fiber arrangement with 1.0 mm core diameter
- Materials include stainless steel head, polyethylene sheath, and polymethylmethacrylate fibers
- Included FC fiber cutter (5304141)
Professional Installation Requirements
- Installation by trained personnel is recommended to ensure proper connection with compatible fiber-optic amplifiers and optimal sensor performance.
Applications
- Standard sensing applications requiring fiber-optic cables
- Use with compatible fiber-optic amplifiers such as WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Energy-efficient sensing reduces overall power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LL3-TS08 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise and reliable fiber-optic sensing.
