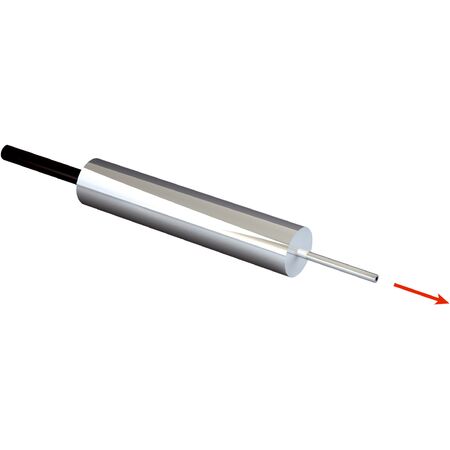

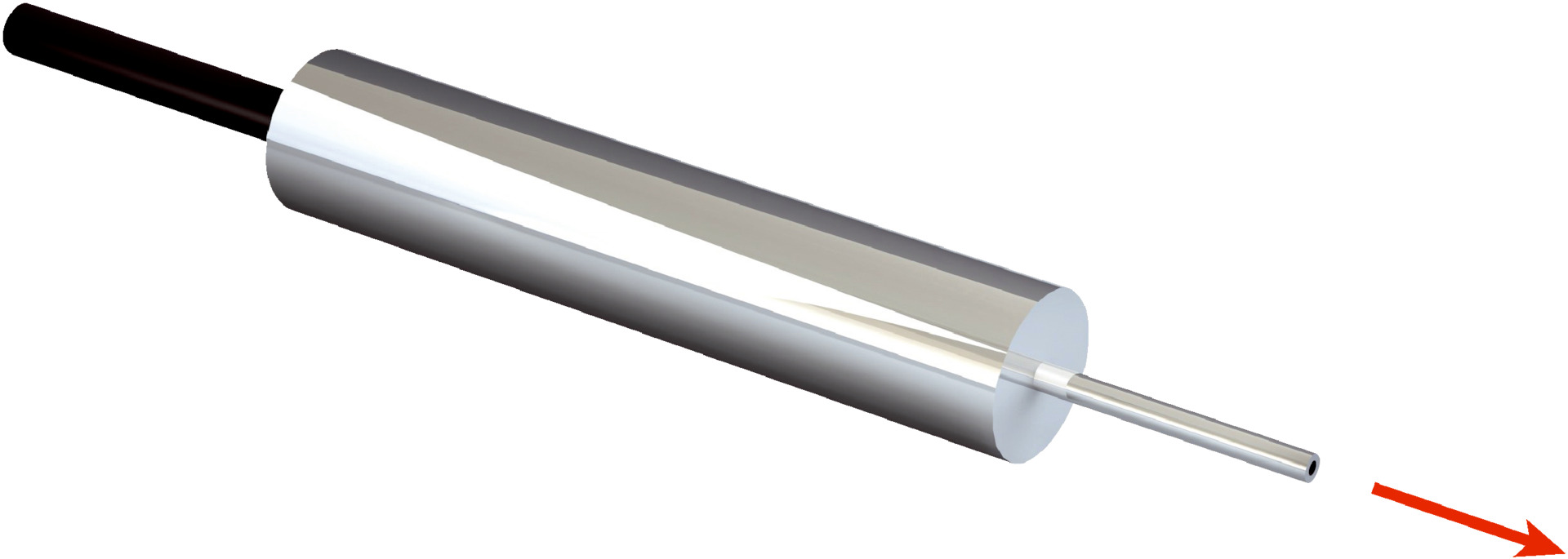

Fiber Optic Cable LL3-TT01 | Through-Beam System | 2000 mm Length | Stainless Steel Head | by SICK
The LL3-TT01 fiber optic cable is designed for standard sensing applications, featuring a through-beam system with a sender and receiver. With a sensing range of up to 200 mm and a minimal object diameter detection of 0.1 mm, this cable is perfect for industrial automation and object detection. Its durable stainless steel head and polyethylene sheath ensure longevity and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, stainless steel
- Sensing range max: 200 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.1 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Outside diameter of optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.25 mm single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Smooth sleeve fiber-optic head design with 3 mm diameter
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light: No
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter
- Stainless steel optical fiber head with polyethylene sheath
- Fiber length of 2000 mm with 15 mm bending radius
- Minimal object diameter detection of 0.1 mm
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and optimal sensor performance.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Energy-efficient sensing reduces overall power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-TT01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
