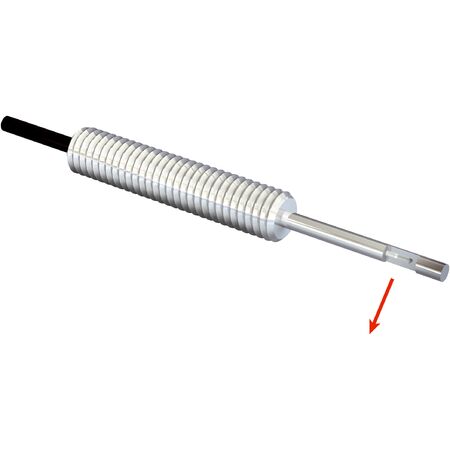

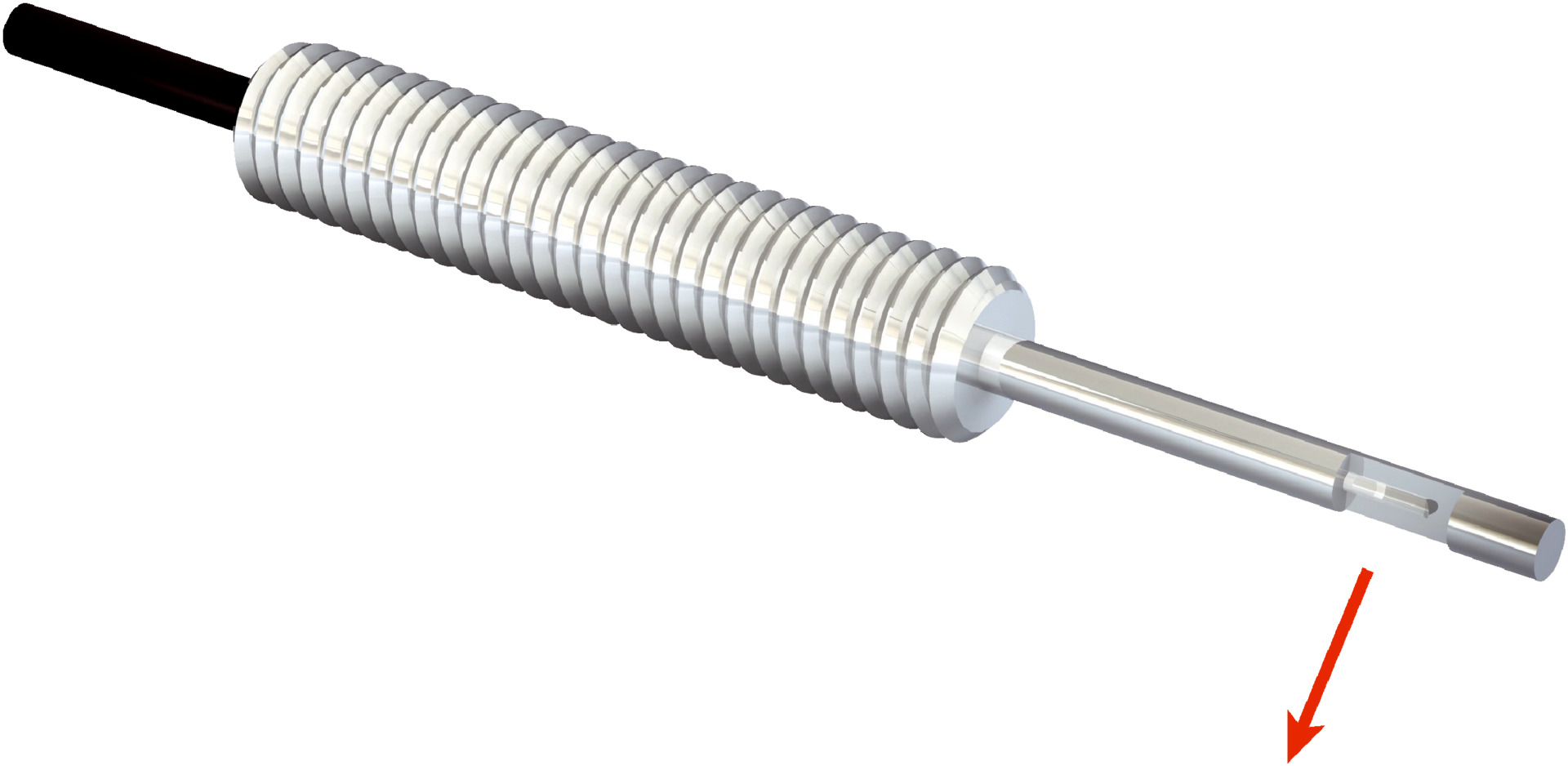

Fiber Optic Cable LL3-TV04 | Through-Beam System | 1,070 mm Sensing Range | Stainless Steel Head | by SICK
The LL3-TV04 fiber optic cable features a through-beam system with a sender and receiver, designed for precise sensing applications. With a maximum sensing range of 1,070 mm and a durable stainless steel head, it's perfect for industrial automation and object detection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, long end sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Maximum sensing range: 1,070 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.1 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Thread diameter (housing): M3
- Optical fiber taper diameter: ≥ 1 mm
- Optical fiber taper length after 2 mm: ≥ 10 mm
- Fiber length: 2,000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.5 mm single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve, long end sleeve, and 90° deflection
- Maximum sensing range of 1,070 mm with WLL80 at 8 ms operating mode
- Radial light emission with M3 thread diameter housing
- Optical fiber cable can be shortened; adapter end sleeves required
- Stainless steel optical fiber head with polyethylene (PE) sheath
- Fiber length of 2,000 mm with 15 mm bending radius
- Single fiber arrangement with polymethylmethacrylate (PMMA) core structure
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems and electrical wiring standards to ensure proper setup and safety.
Applications
- Standard sensing applications requiring through-beam fiber-optic systems
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection with minimal object diameter of 0.1 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials enhance product longevity, reducing waste
- Low power consumption when used with compatible fiber-optic amplifiers
- Enables precise sensing to optimize industrial processes and reduce resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TV04 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise through-beam detection.
