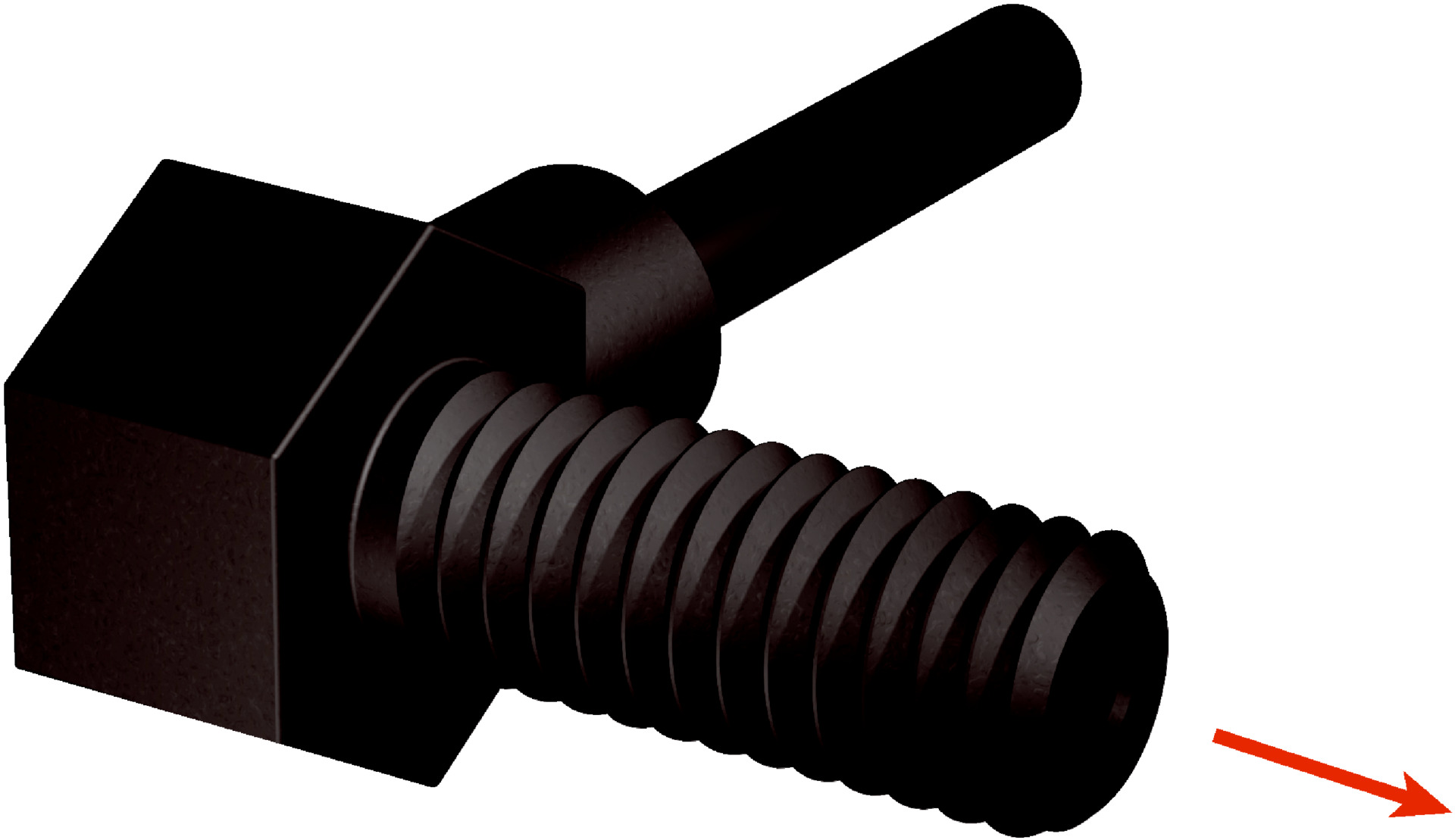

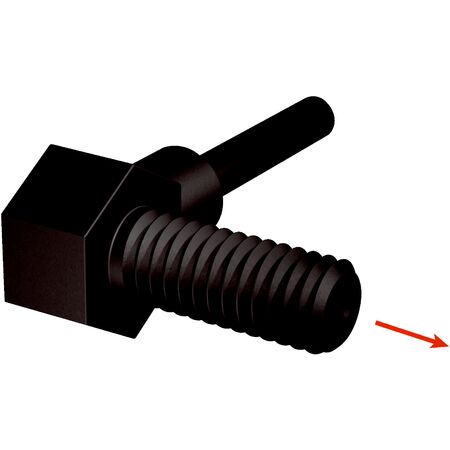

Fiber Optic Cable LL3-TV05-3 | Threaded Sleeve Design | 90° Deflection | 3000 mm Length | by SICK
The LL3-TV05-3 fiber optic cable is designed for precise through-beam sensing applications, featuring a threaded sleeve design and 90° deflection for optimal alignment. With a 3000 mm length and a durable construction, it’s perfect for industrial environments requiring reliable performance across a wide temperature range of -40 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Minimal object diameter detection: 0.4 mm
- Angle of dispersion: 15.94°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Included with delivery: Mounting, 2 x M4 hexagon nut, FC fiber cutter (5304141)
- Optical fiber head material: Polyamid (PA)
- Light emission: Radial
- Thread diameter (housing): M4
- Optical fiber length: 3000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Optical fiber cable diameter: 2.2 mm
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Weight: 41 g
- Ambient operating temperature: -40 °C to +70 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 350 mm, 70 µs - 750 mm, 250 µs - 1800 mm, 2 ms - 4000 mm, 8 ms - 4000 mm
- Dimensions (H x L x W): 10mm x 3000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve and 90° deflection
- Integrated lens with 15.94° angle of dispersion
- Radial light emission
- Optical fiber cable length of 3000 mm with 2.2 mm diameter
- Optical fiber cable can be shortened without adapter end sleeves
- Material: Polyamid (PA) fiber-optic head, Polyethylene (PE) sheath, Polymethylmethacrylate (PMMA) fibers
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and secure mounting.
Applications
- Standard sensing applications requiring through-beam fiber-optic sensing
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Long operating temperature range supports use in diverse environments, reducing environmental impact of climate-specific products
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TV05-3 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring precise through-beam detection.
