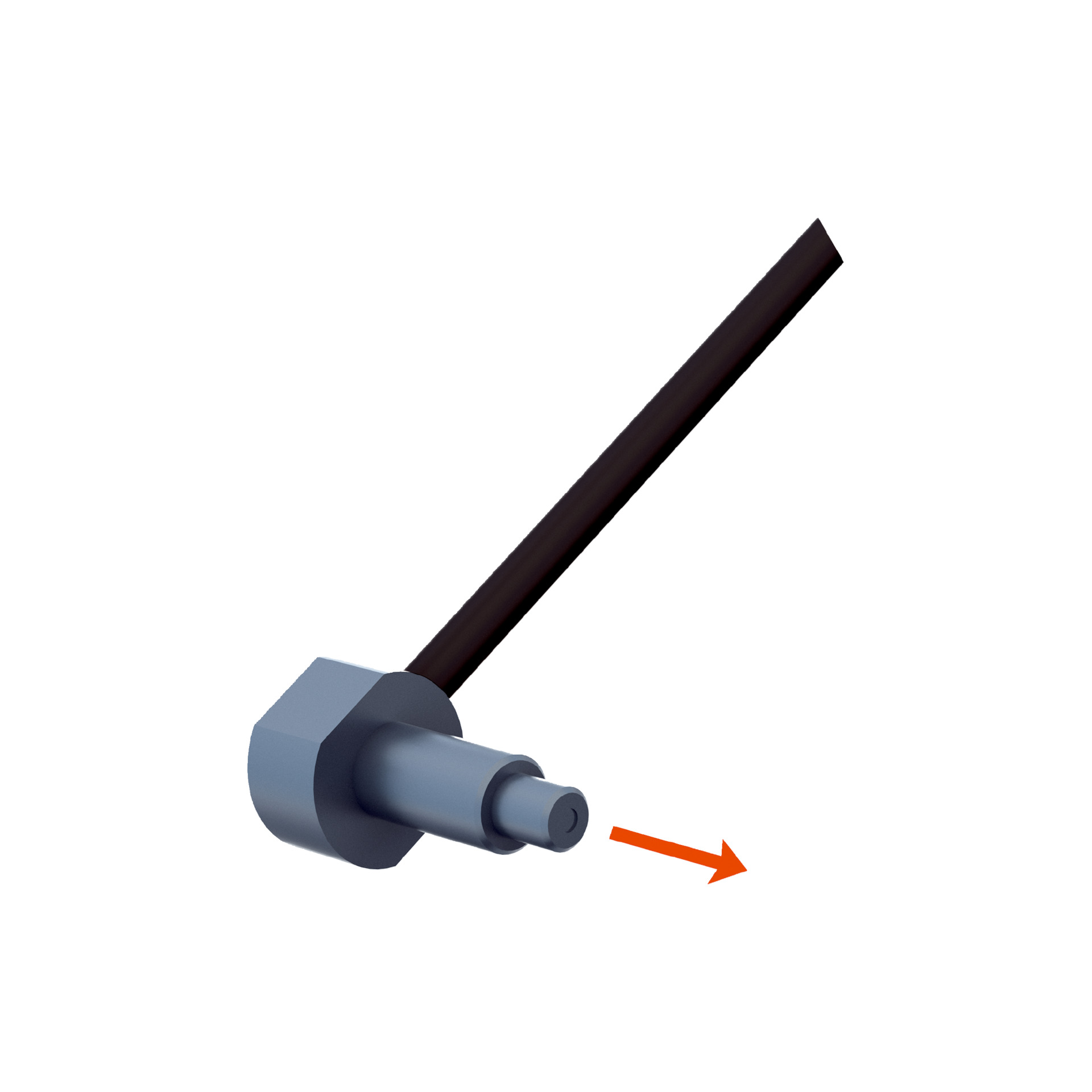

Fiber Optic Cable LL3-TV77 | Threaded Sleeve Design | 90° Deflection | Minimal Object Diameter 0.4mm | by SICK
The LL3-TV77 fiber optic cable is designed for high flexible static sensing applications, featuring a threaded sleeve design and 90° deflection for precise object detection. With a minimal object diameter of just 0.4mm and an operating temperature range of -40 °C to +70 °C, this cable is perfect for use with compatible fiber-optic amplifiers in industrial automation settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2000 mm
- Bending radius: 2 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve and 90° deflection
- Minimal object diameter detection of 0.4 mm
- Angle of dispersion 60°
- Optical fiber cable can be shortened
- Radial light emission
- Stainless steel optical fiber head
- Polyethylene (PE) sheath with polymethylmethacrylate (PMMA) fibers
- Operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and optimal performance.
Applications
- High flexible static sensing applications
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials enhance product longevity, reducing waste
- Low power consumption when used with fiber-optic amplifiers
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TV77 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise object detection.
