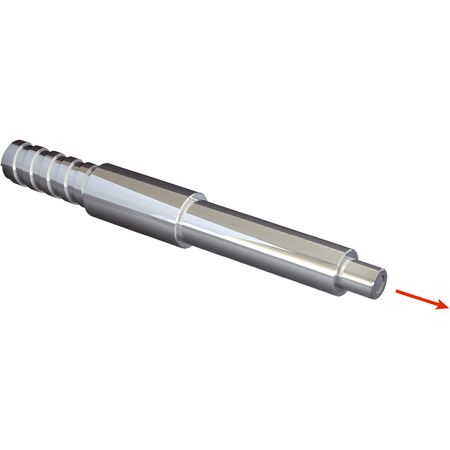

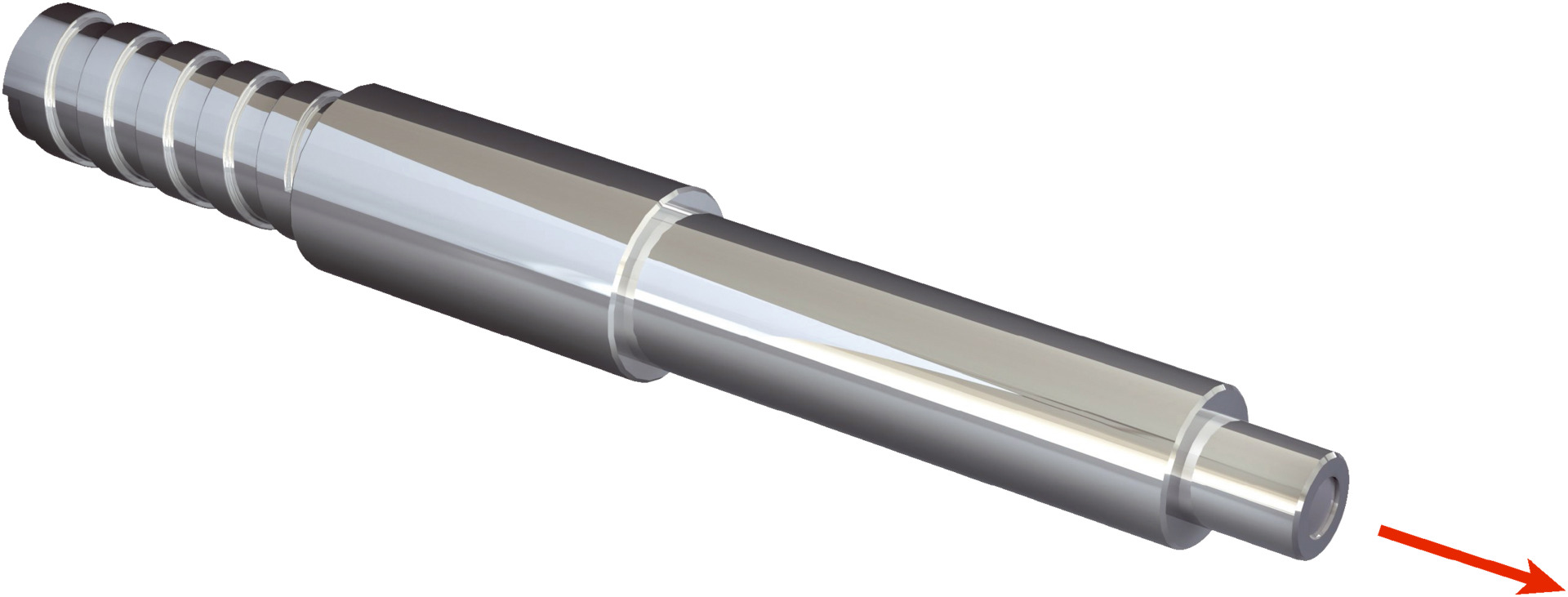

Fiber Optic Cable LL3-TW01-2 | Threaded Sleeve Design | Heat-Resistant to 100°C | Axial Light Emission | by SICK
The LL3-TW01-2 fiber optic cable is designed for industrial sensing applications, featuring a threaded sleeve design and heat resistance up to 100°C. With a 2000 mm length and compatibility with infrared light, this cable is perfect for environments with extreme temperatures, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter detection: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Weight: 13 g
- Ambient operating temperature: –60 °C to +210 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 80 mm, 70 µs - 230 mm, 250 µs - 350 mm, 2 ms - 560 mm, 8 ms - 980 mm
- Sensing range with GLL170 250 µs mode: 534 mm
- Sensing ranges with GLL170T: 50 µs - 821 mm, 250 µs - 1393 mm
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Includes mounting hardware: 4 x M4 hexagon nuts and 2 x washers
- Stainless steel optical fiber head and sheath
- Multi-fiber glass core structure with 1.5 mm diameter
- Axial light emission with 60° angle of dispersion
- Fiber length of 2000 mm with 25 mm bending radius
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -60°C to +210°C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Heat resistance minimizes energy consumption for cooling in high-temperature environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK LL3-TW01-2 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant and precise fiber-optic solutions.
