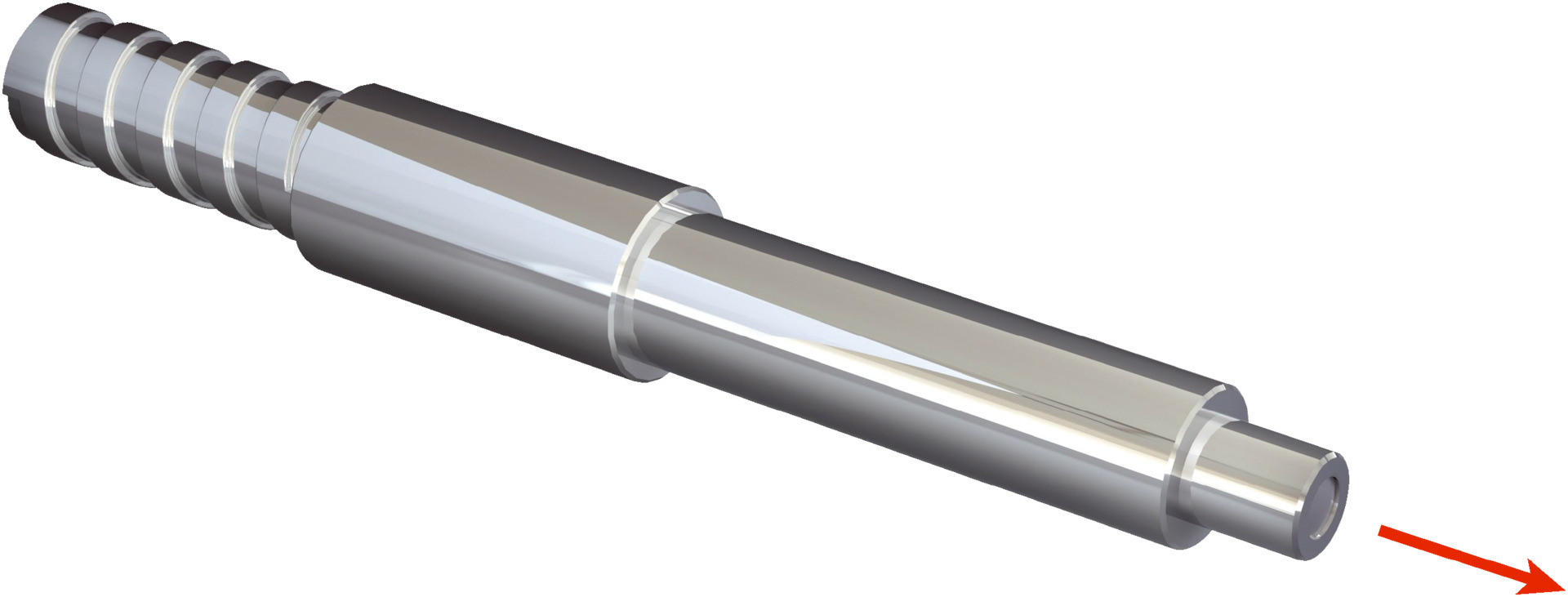

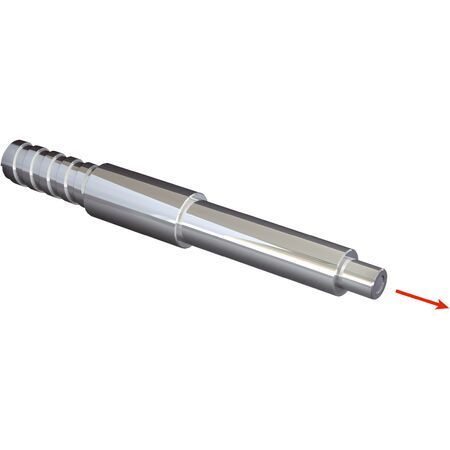

Fiber Optic Cable LL3-TW0115000 | Heat-Resistant Up to 350°C | Through-Beam System | Stainless Steel Design | by SICK
The LL3-TW0115000 fiber optic cable is engineered for high-temperature sensing, capable of withstanding temperatures up to 350°C. Featuring a threaded sleeve design and a through-beam system, this cable is perfect for industrial automation applications. Its durable stainless steel construction ensures longevity, making it an ideal choice for environments requiring reliable and precise sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C), operating temperature –60°C to +350°C
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter detection: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 15,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.4 mm multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Dimensions (H x L x W): 10mm x 15000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Threaded sleeve fiber-optic head design
- Heat-resistant up to 350°C
- Compatible with infrared light
- Multi-fiber core structure with 1.4 mm diameter
- Stainless steel optical fiber head and sheath
- Axial light emission
- Includes mounting hardware: 4 x M4 hexagon nuts, 2 x washers
Professional Installation Requirements
- Installation by qualified personnel familiar with fiber-optic systems and electrical safety standards is recommended.
Applications
- Industrial automation requiring heat-resistant fiber-optic sensing
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- High-temperature environments up to 350°C
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Enables precise sensing reducing energy waste in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TW0115000 fiber-optic cable is available for immediate purchase, ideal for industrial automation and high-temperature sensing applications.
