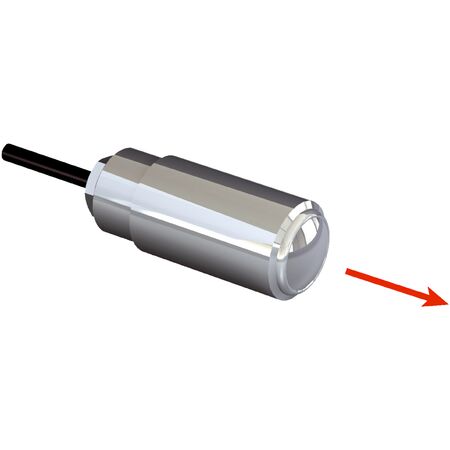

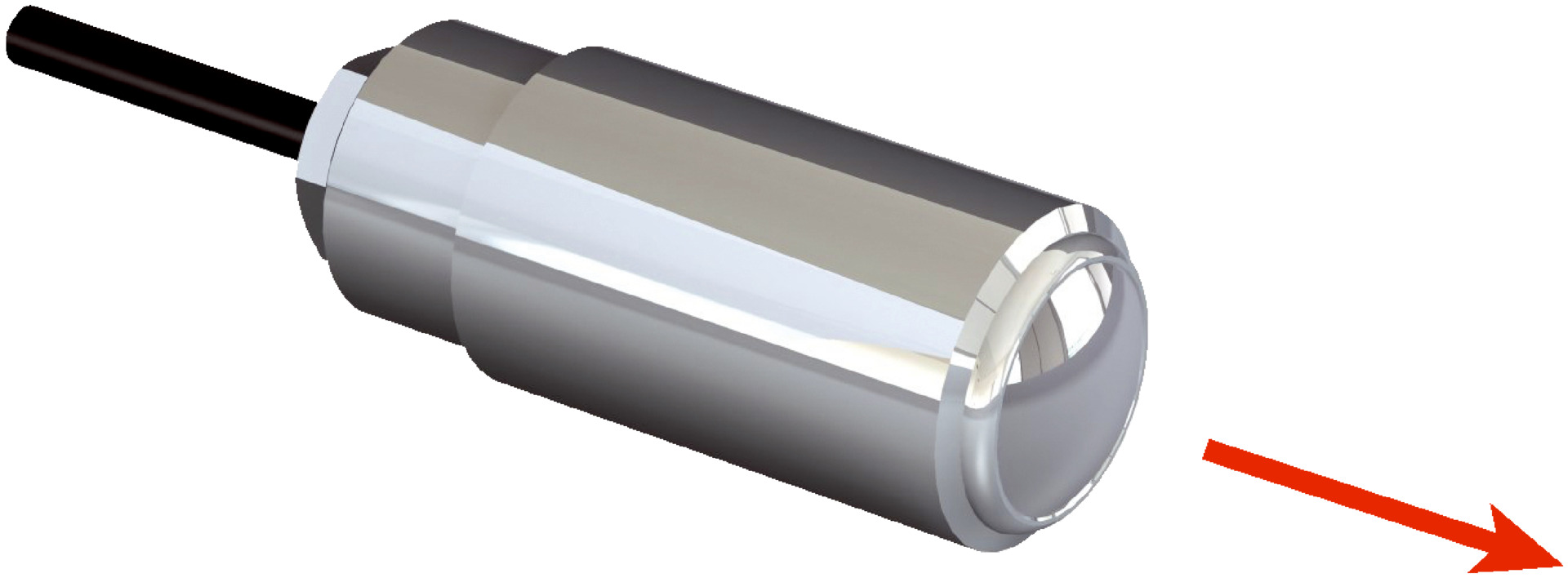

Fiber Optic Cable LL3-TX01S01 | Through-Beam System | Stainless Steel Head | 20,000 mm Length | by SICK
The LL3-TX01S01 fiber optic cable is designed for industrial automation and object detection, featuring a through-beam system with a stainless steel head for durability. With a maximum sensing range of up to 38,000 mm and a minimal object diameter detection of 0.5 mm, this cable is perfect for environments requiring corrosion-resistant components and precise sensing capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system
- Fiber-optic head design: Threaded sleeve
- Bracket, fiber head, and mounting material: Stainless steel V4A (1.4404, 316L)
- Light emission: Axial
- Thread diameter (housing): M12
- Fiber arrangement: Single fiber
- Core structure diameter: 1.5 mm
- Bending radius: 30 mm
- Dynamic flexibility (robotics): No
- Compatibility with infrared light: No
- Dimensions (H x L x W): 12mm x 20000mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve made of stainless steel V4A (1.4404, 316L)
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Maximum sensing range up to 38,000 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.5 mm
- Optical fiber head with 13.12° angle of dispersion and integrated lens
- Optical fiber cable can be shortened without adapter end sleeves
- Fiber length of 20,000 mm with 2.2 mm outside diameter
- Sheath made of polyethylene (PE) and fibers made of polymethylmethacrylate (PMMA)
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper fiber-optic alignment and secure mounting.
Applications
- Standard fiber-optic sensing applications requiring through-beam systems
- Industrial automation and object detection
- Environments requiring corrosion-resistant fiber-optic components
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Long fiber length reduces need for additional connectors and materials
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-TX01S01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring robust and precise fiber-optic components.
