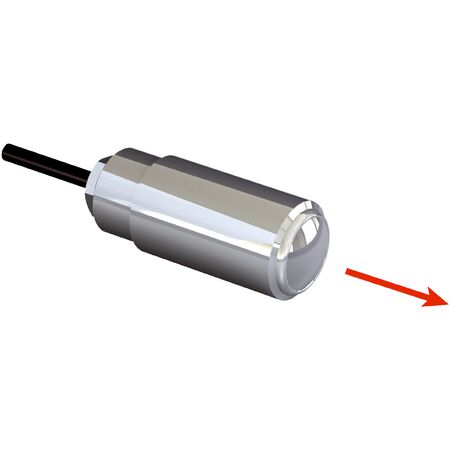

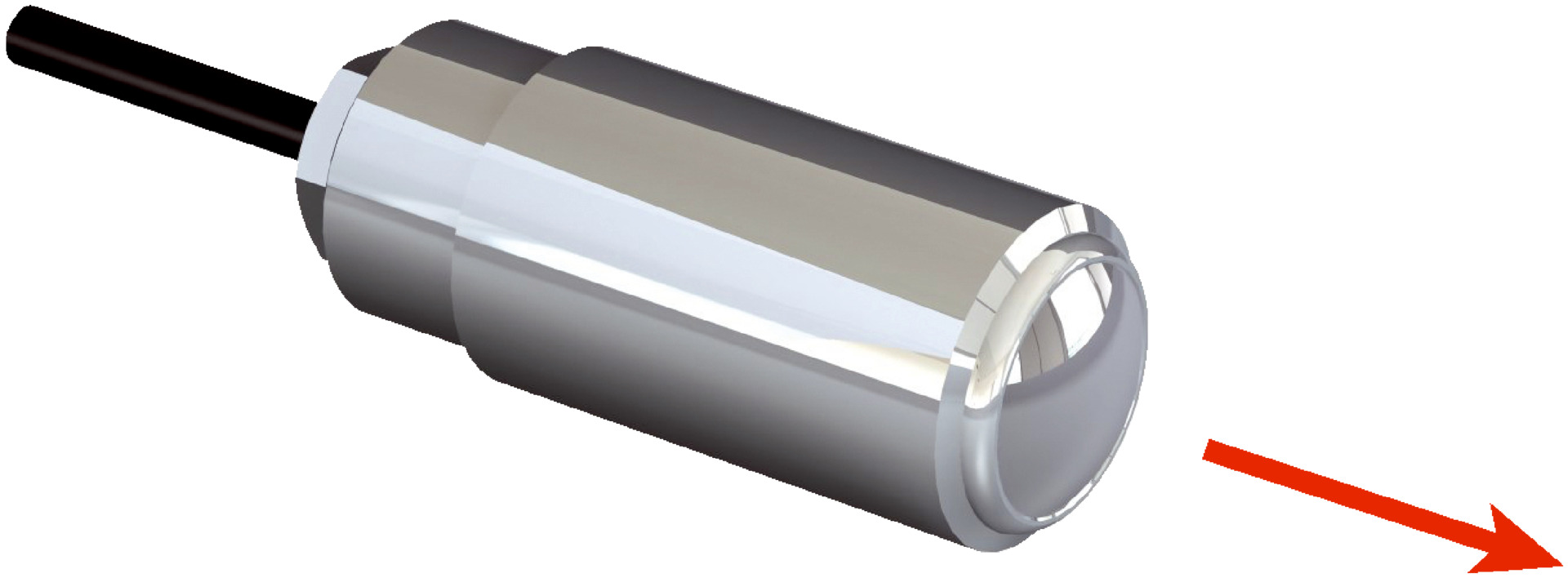

Fiber Optic Cable LL3-TX02-10 | Through-Beam System | Stainless Steel Head | 10m Length | by SICK
The LL3-TX02-10 fiber optic cable is designed for standard sensing applications, featuring a through-beam system with a sender and receiver. Built for industrial automation and object detection, this durable cable includes a stainless steel head and can detect minimal object diameters of 0.5 mm, ensuring reliable performance in corrosive environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Bracket, fiber head, and mounting material: Stainless steel V4A (1.4404, 316L)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 11.42°
- Integrated lens: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Fiber length: 10,000 mm
- Bending radius: 25 mm
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.5 mm single fiber
- Sheath material: Polyethylene (PE) / Polyvinylchloride (PVC)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 12mm x 10000mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve design
- Bracket, fiber head, and mounting material made of stainless steel V4A (1.4404, 316L)
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Minimal object diameter detection of 0.5 mm
- Optical fiber head with 11.42° angle of dispersion and integrated lens
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware, 4 x M12 hexagon nuts, FC fiber cutter, and protective cladding for fiber head
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and secure mounting.
Applications
- Standard sensing applications requiring through-beam fiber-optic systems
- Industrial automation and object detection
- Environments requiring corrosion-resistant fiber-optic components
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Long fiber length minimizes need for additional connectors and reduces material use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-TX02-10 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring durable and precise fiber-optic components.
