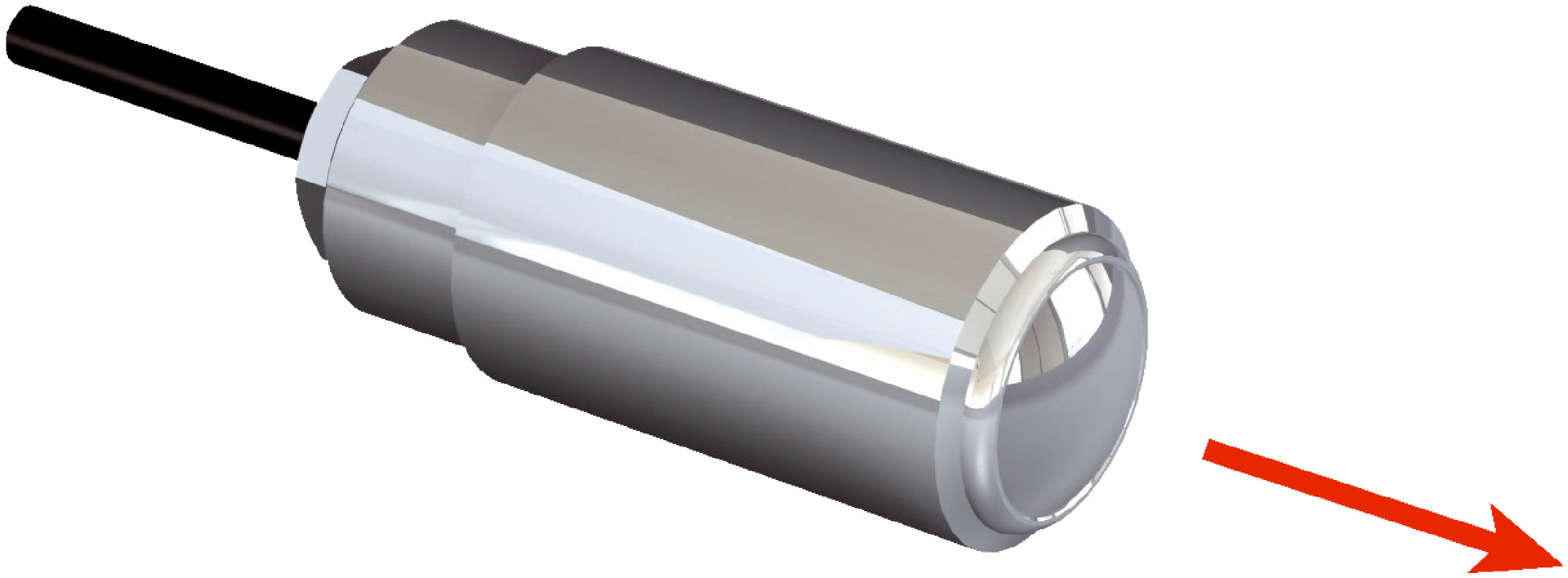

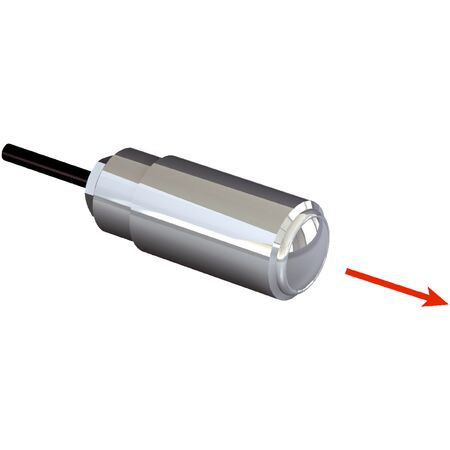

Fiber Optic Cable LL3-TX02 | Through-Beam System | Stainless Steel Bracket | 38,000 mm Sensing Range | by SICK
The LL3-TX02 fiber optic cable is designed for through-beam sensing applications, featuring a robust stainless steel bracket and a maximum sensing range of 38,000 mm. Ideal for industrial automation, this cable ensures precise detection with a minimal object diameter of just 0.5 mm, making it perfect for various sensing needs in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Bracket, fiber head, and mounting material: Stainless steel V4A (1.4404, 316L)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Maximum sensing range: 38,000 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.5 mm
- Optical fiber head angle of dispersion: 11.42°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Optical fiber cable can be shortened: Yes
- Light emission: Axial
- Thread diameter (housing): M12
- Optical fiber length: 20,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.5 mm single fiber
- Sheath material: Polyethylene (PE) / Polyvinylchloride (PVC)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 12mm x 20000mm x 12mm
- Weight: 0.118 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve design
- Bracket material, fiber head, and mounting material made of stainless steel V4A (1.4404, 316L)
- Compatible with multiple fiber-optic amplifiers
- Sensing range up to 38,000 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.5 mm
- Optical fiber head with 11.42° angle of dispersion and integrated lens
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware, 4 x M12 hexagon nuts, FC fiber cutter, and protective cladding for fiber head
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and secure mounting.
Applications
- Standard fiber-optic sensing applications requiring through-beam systems
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction ensures long product life and reduces waste
- Energy-efficient sensing reduces power consumption in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TX02 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise through-beam detection.
