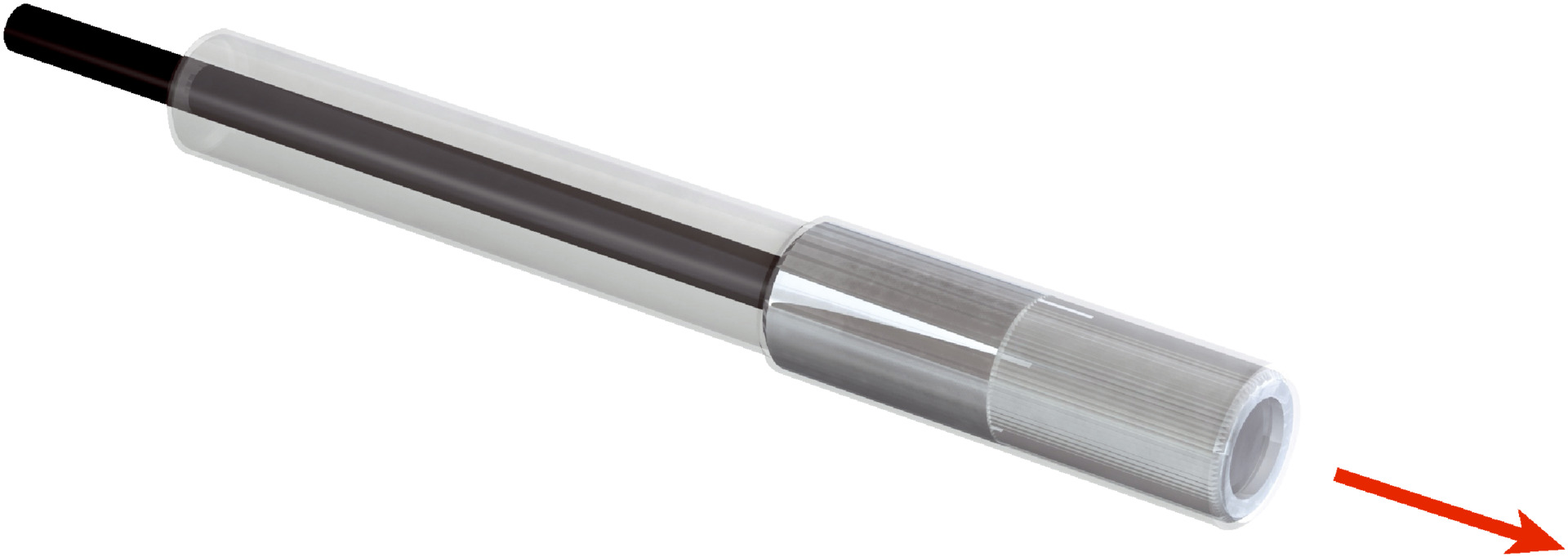

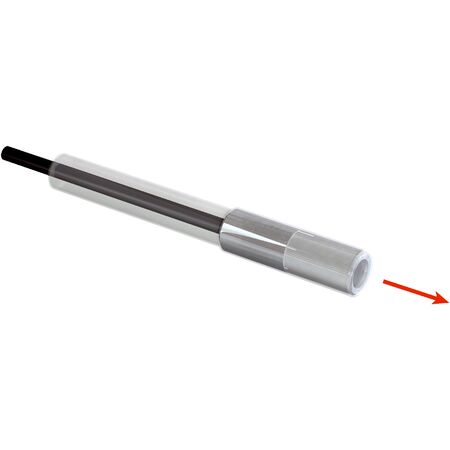

Fiber Optic Cable LL3-TY01 | Teflon Sheathing | 3600mm Sensing Range | 6mm Diameter | by SICK
The LL3-TY01 fiber optic cable is designed for industrial automation sensing, featuring a Teflon (PTFE) sheath for chemical resistance and a smooth sleeve head with a 6 mm diameter. With a maximum sensing range of up to 3600 mm and a minimal object detection diameter of 0.3 mm, this cable is perfect for environments requiring precise detection and durability, ensuring reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, 6 mm diameter
- Material: Polytetrafluorethylen (PTFE) sheath and head, Polymethylmethacrylat (PMMA) fibers
- Sensing range max: Up to 3600 mm with WLL80 amplifier
- Minimal object diameter: 0.3 mm
- Angle of dispersion: 34.45°
- Integrated lens: Yes
- Optical fiber cable length: 2000 mm
- Bending radius: 60 mm
- Operating temperature: -40°C to +70°C
- Weight: 11 g
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Teflon (PTFE) sheathing for chemical resistance
- Smooth sleeve fiber-optic head with 6 mm diameter
- Axial light emission with integrated lens
- Compatible with multiple fiber-optic amplifiers
- Optical fiber cable can be shortened without adapter end sleeves
- Minimal object detection diameter of 0.3 mm
- Operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with compatible fiber-optic amplifiers and adherence to safety standards.
Applications
- Industrial automation sensing
- Oil and chemical resistant environments
- Fiber-optic sensing with compatible amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable Teflon sheathing extends product life reducing waste
- Chemical resistance minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-TY01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring chemical resistance and precise detection.
