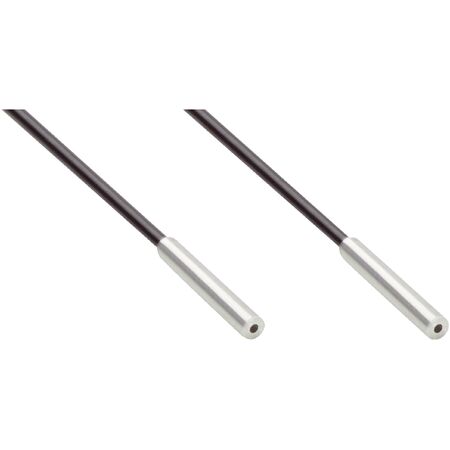

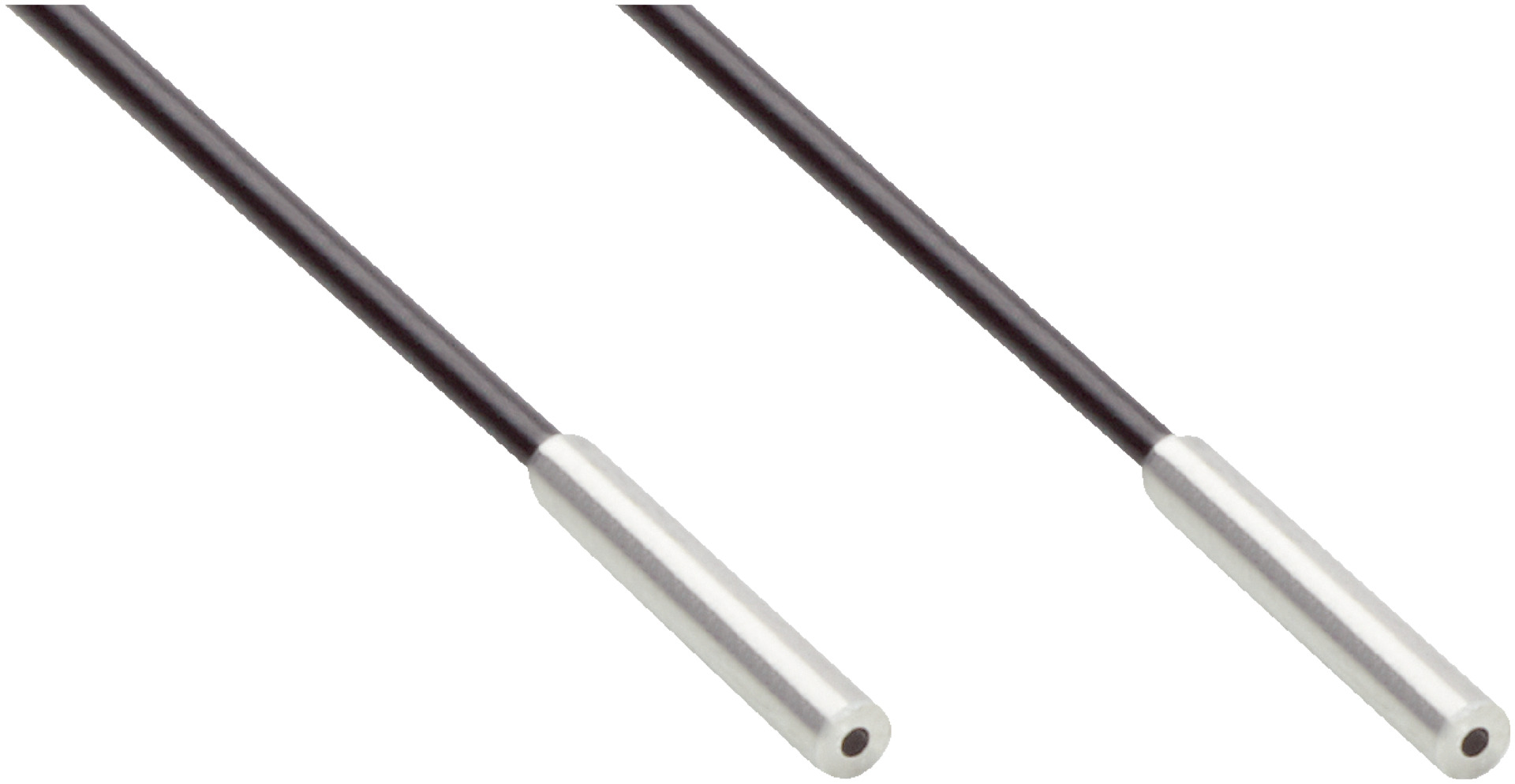

Fiber Optic Cable LLSE-A2010111020B4 | Through-Beam System | Stainless Steel Head | 2000 mm Length | by SICK
The LLSE-A2010111020B4 fiber optic cable features a through-beam system with a sender and receiver, making it ideal for standard fiber-optic sensing applications. Designed for industrial automation, this cable includes a smooth sleeve stainless steel head and can be shortened for flexibility. With an operating temperature range of -40 °C to +60 °C, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, stainless steel
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes (2 x LLAC-AB10)
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.5 mm single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: PMMA
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Smooth sleeve fiber-optic head with axial light emission
- Fiber-optic cable can be shortened
- Stainless steel optical fiber head with 1.5 mm smooth sleeve diameter
- Single fiber arrangement with PMMA fibers and polyethylene sheath
- Compatible with adapter end sleeves (2 x LLAC-AB10)
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems to ensure proper handling and connection.
Applications
- Standard fiber-optic sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and sensing systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LLSE-A2010111020B4 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
