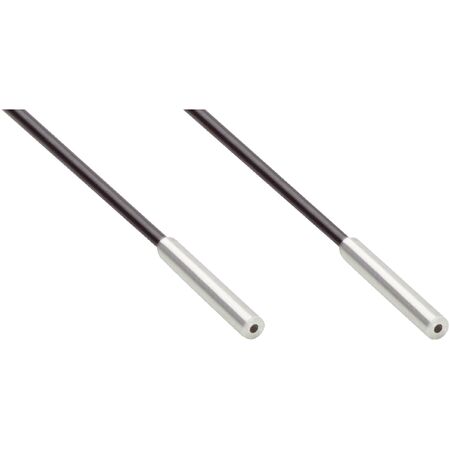

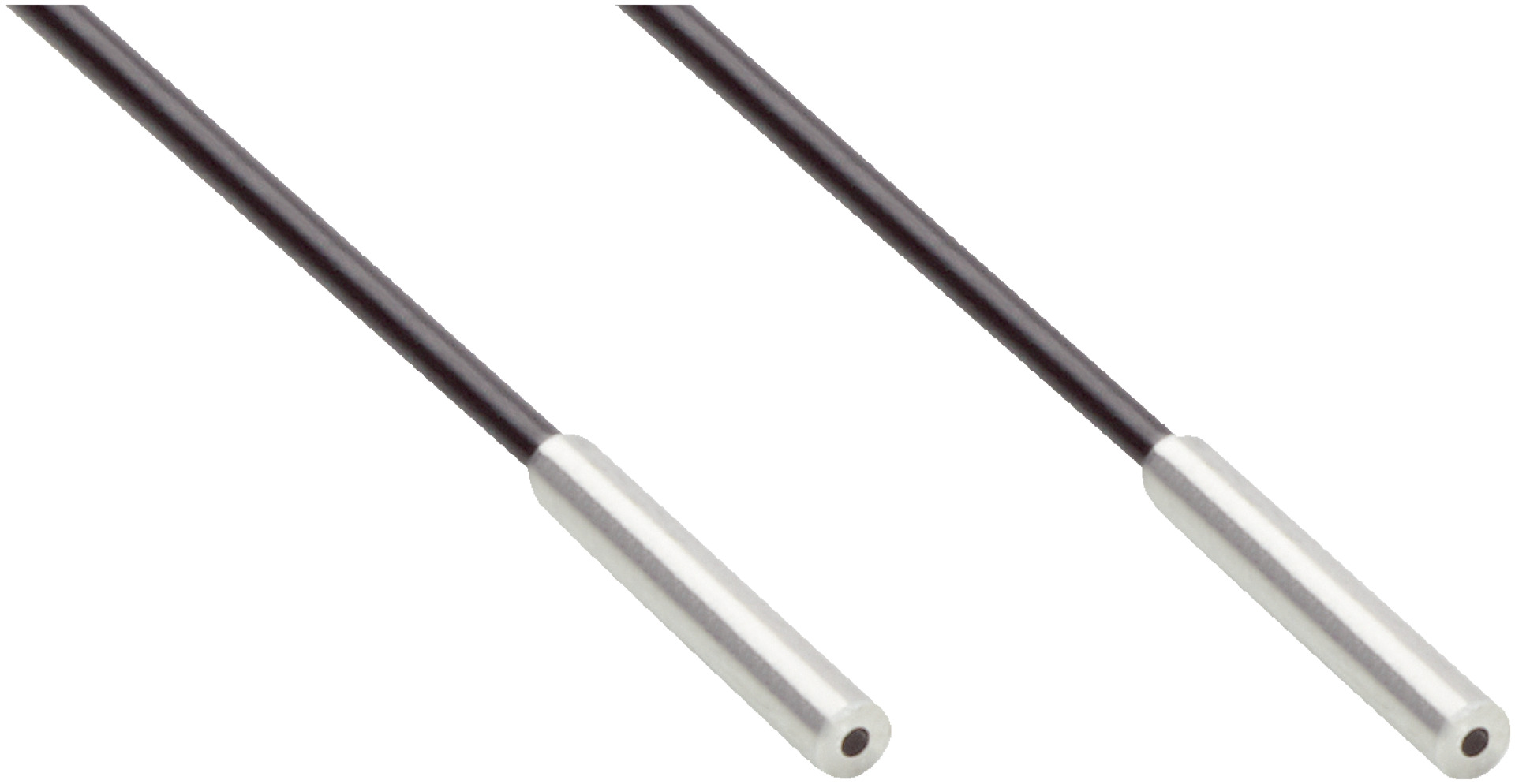

Fiber Optic Cable LLSE-A2010111100B4 | Through-Beam System | 10,000 mm Length | Smooth Sleeve Design | by SICK
The LLSE-A2010111100B4 fiber optic cable is designed for standard sensing applications, featuring a through-beam system with a sender and receiver. With a smooth sleeve fiber-optic head and a length of 10,000 mm, it’s perfect for industrial automation and compatible with various fiber-optic amplifiers. Built to last with a polyethylene sheath, this cable ensures reliable performance in diverse environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, stainless steel
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes (2 x LLAC-AB10)
- Fiber length: 10,000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.5 mm single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: PMMA
- Ambient operating temperature: –40 °C to +60 °C
- Weight: 31 g
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Smooth sleeve fiber-optic head with 1.5 mm diameter
- Axial light emission
- Single fiber arrangement with 0.5 mm core structure
- Optical fiber cable length of 10,000 mm with 2.2 mm outside diameter
- Polyethylene (PE) sheath with PMMA fibers
- Fiber-optic cable can be shortened
- Adapter end sleeves required (2 x LLAC-AB10)
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems to ensure proper connection and performance.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials extend product life and reduce waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK LLSE-A2010111100B4 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
