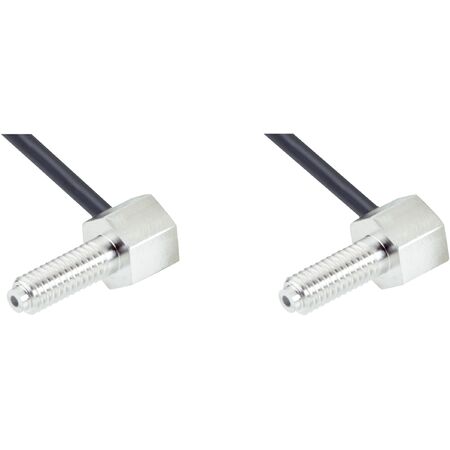

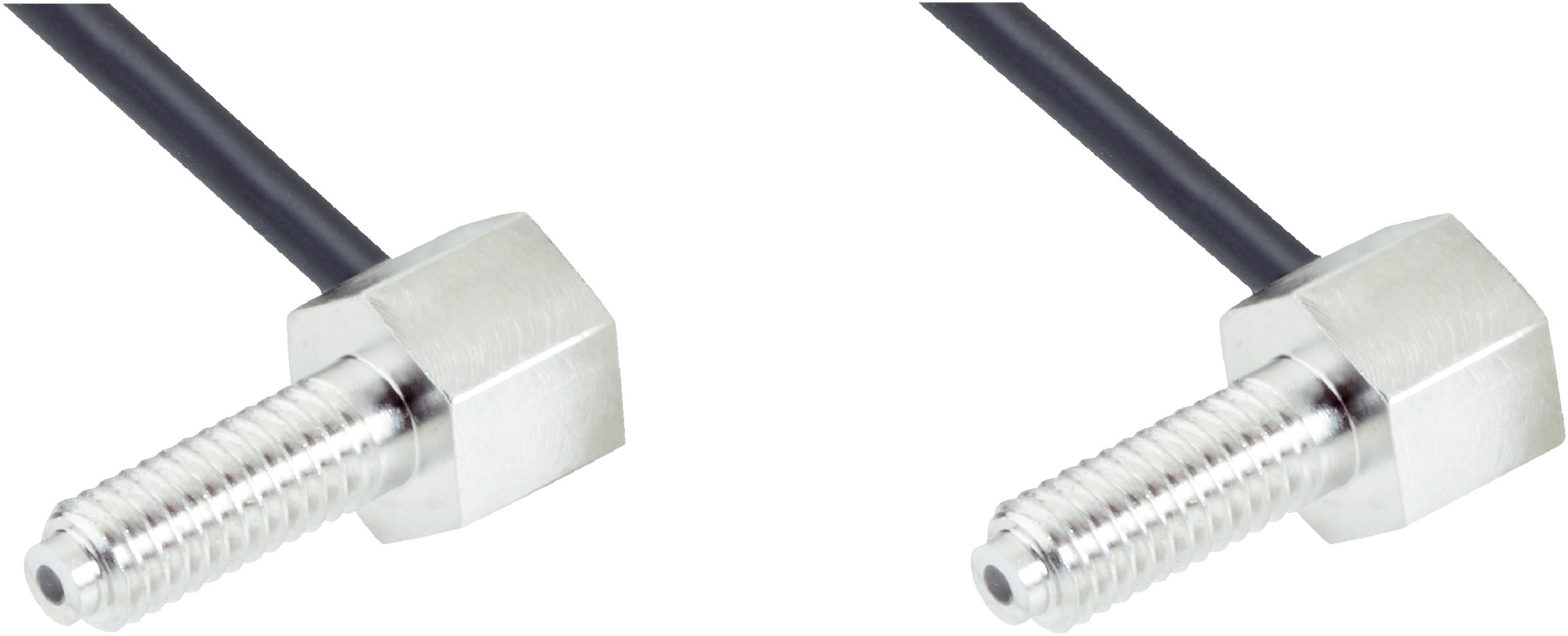

Fiber Optic Cable LLSE-R1400111020C2 | Threaded Sleeve Design | 90° Deflection | 2000 mm Length | by SICK
The Fiber Optic Cable LLSE-R1400111020C2 features a threaded sleeve design and 90° deflection, making it ideal for standard sensing applications in industrial automation. With a sensing range of up to 2000 mm and compatibility with various fiber-optic amplifiers, this cable ensures reliable performance in demanding environments. Its durable construction and RoHS compliance further enhance its suitability for long-term use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Sensing range: Dependent on fiber optic amplifier used (up to 2000 mm with WLL180T)
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Thread diameter (housing): M4
- Fiber length: 2000 mm
- Bending radius: 2 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.0 mm single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: PMMA
- Operating temperature range: -40 °C to +60 °C
- Dimensions (H x L x W): 20mm x 2000mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve and 90° deflection
- Angle of dispersion: 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Radial light emission from stainless steel optical fiber head
- Fiber length: 2000 mm with 2 mm bending radius
- Single fiber arrangement with 1.0 mm core diameter
- Sheath made of polyethylene (PE) and fibers made of PMMA
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Industrial automation and sensing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LLSE-R1400111020C2 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
