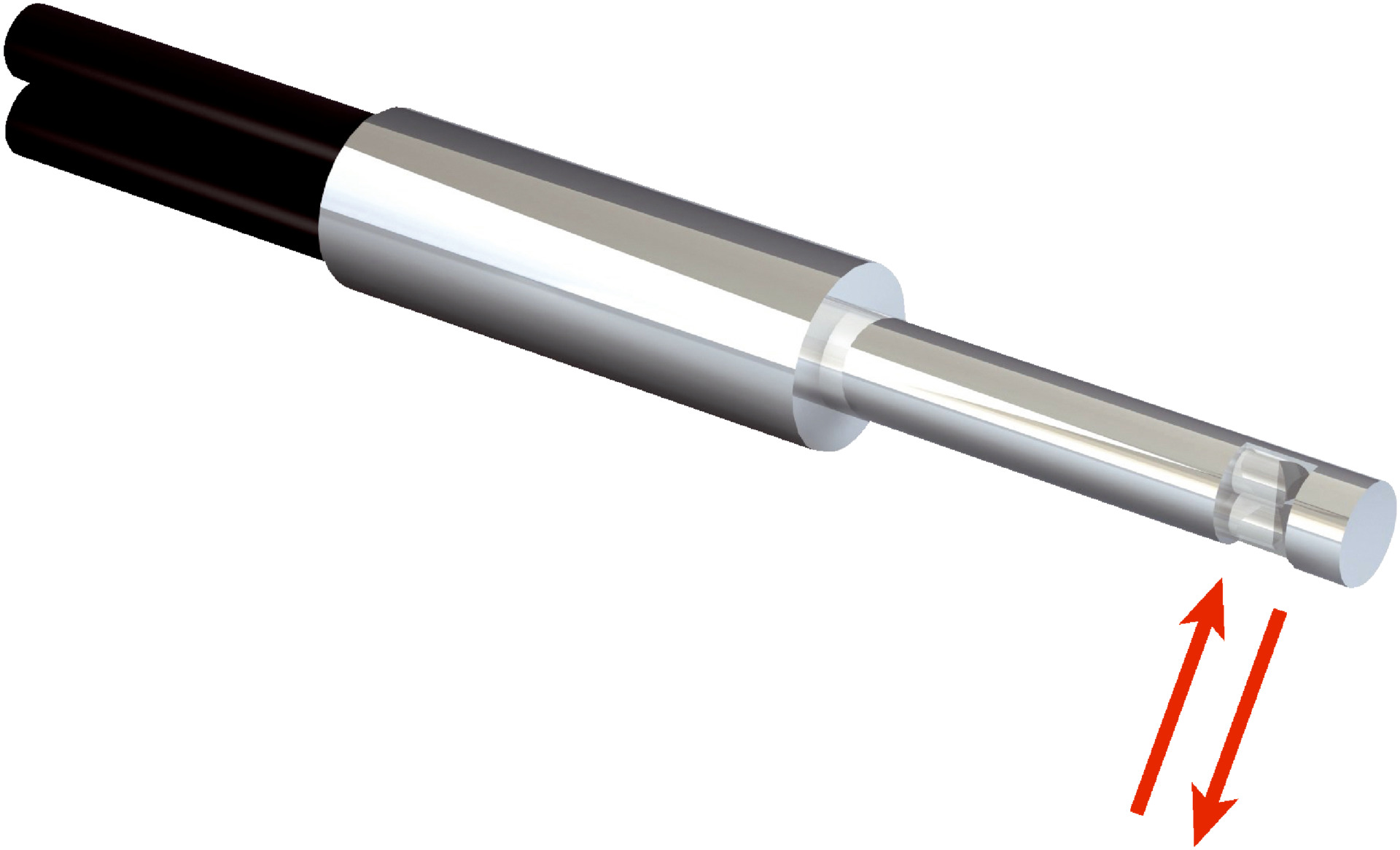

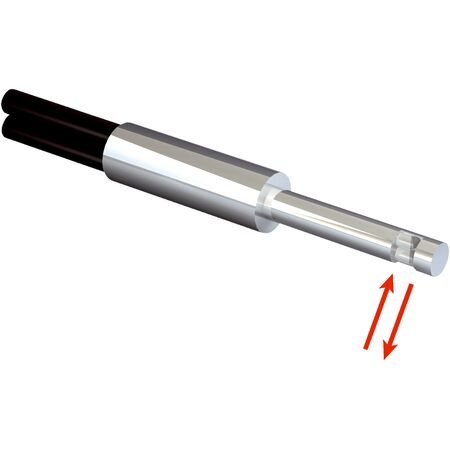

Fiber Optic Cable Proximity Sensor LL3-DK33 | 90° Deflection | Radial Light Emission | Smooth Sleeve Design | by SICK
The LL3-DK33 fiber optic cable proximity sensor is designed for standard proximity sensing applications, featuring a smooth sleeve and long end sleeve design with a 90° deflection head. With a sensing range of up to 970 mm and a radial light emission at a 60° angle, this sensor is perfect for industrial automation, ensuring precise and reliable detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection
- Sensing range max.: 970 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.025 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Included with delivery: FC fiber cutter (5304141)
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Smooth sleeve diameter: 5 mm
- Optical fiber taper diameter: ≥ 2.7 mm
- Optical fiber taper length after 2 mm: ≥ 65 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 5mm x 2000mm x 5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve and long end sleeve design
- 90° deflection fiber-optic head
- Radial light emission with 60° angle of dispersion
- Compatible with multiple fiber-optic amplifiers
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter for installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and connection.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life reducing waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DK33 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring precise and reliable fiber-optic detection.
